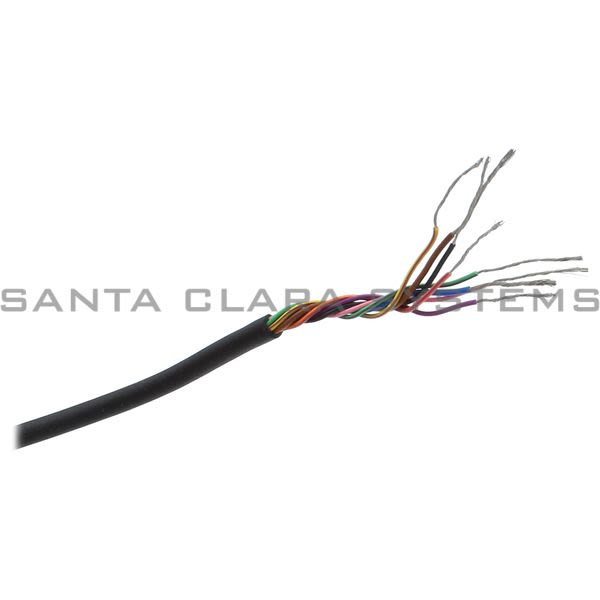

• Keyence CZ-K1 Digital Amplifier Product Image

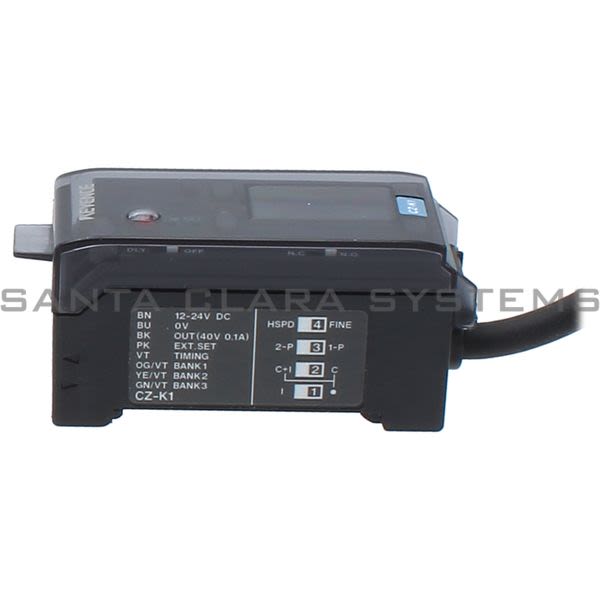

  • Keyence CZ-K1 Digital Amplifier Product Image

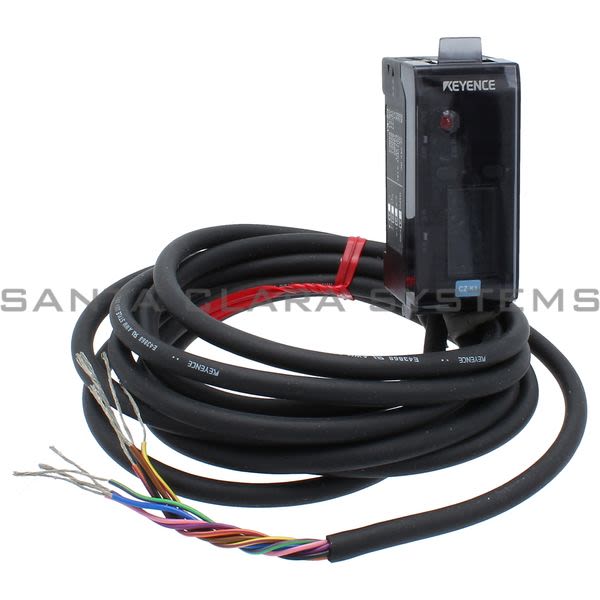

  • Keyence CZ-K1 Digital Amplifier Product Image

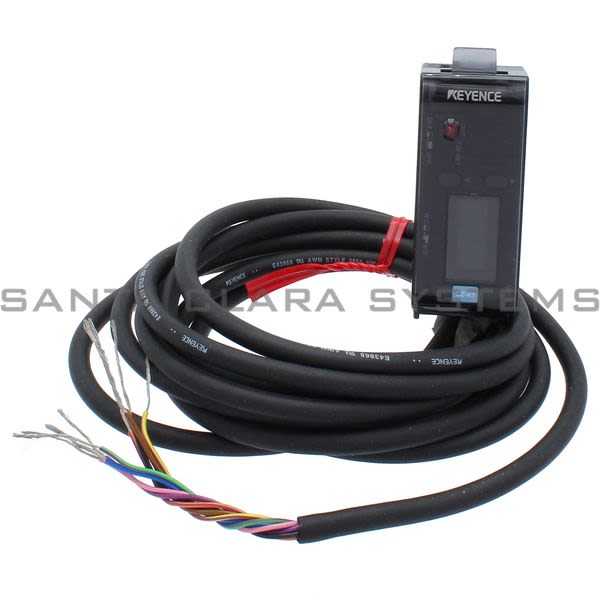

  • Keyence CZ-K1 Digital Amplifier Product Image
  • Keyence CZ-K1 Barcode

CZ-K1

Product Summary:

  • Output: NPN
  • Light source: Red LED, Green LED, Blue LED
  • Response time: 300 ?s/1 ms (switch-selectable)
  • External synchronization input: Response speed: 500 ?s max.
  • External calibration input: Input response time: 20 ms min.
Get a Quote

Current response time:

By 5AM PT on Monday
  • Description: Digital Amplifier
  • Control output: NPN: 40 VDC max. (100 mA max.), Residual voltage: 1.0 V max.
  • Protection circuit: Reverse-polarity protection (power supply), overcurrent protection (output), surge absorber (output)
  • Rating - Power voltage: 12 to 24 VDC 10%, Ripple (P-P): 10% max.
  • Rating - Current consumption.: 75 mA max.
  • Environmental resistance - Operating ambient luminance: Incandescent lamp: 5000 lux max., Sunlight: 10000 lux max.
  • Environmental resistance - Operating temperature range: -10 to +55C 14 to 131F, No freezing*1
  • Environmental resistance - Operating ambient humidity: 35 to 85% RH (No condensation)
  • Environmental resistance - Vibration: 10 to 55 Hz, 1.5 mm 0.06", double amplitude in X, Y, Z directions, 2 hours respectively
  • Environmental resistance - Shock resistance: 500 m/s2 in X, Y, Z directions, 3 times respectively
  • Case material: Polycarbonate
  • Weight: Approx 115 g (including 2-m 6.6' cable)
  • Footnotes: *1 When several units are connected, the ambient temperature requirement varies depending on the total number of units connected. When 3 to 10 units: -10 to +50C 14 to 122F When 11 to 16 units: -10 to +45C 14 to 113F When connecting several units, be sure to mount the units to a metallic DIN rail. Make sure that the output current does not exceed 20 mA.
  • Output: NPN
  • Light source: Red LED, Green LED, Blue LED
  • Response time: 300 ?s/1 ms (switch-selectable)
  • Indicator lamp: Output: Red LED, Calibration: Orange LED, External synchronization input: Green LED, Matching rate/received light intensity: LCD (Red/Green)
  • Error indication: Excess light intensity, insufficient light intensity, insufficient color difference
  • Calibration method: 1-point/2-point calibration (switch-selectable)
  • Tolerance value adjustment: Numerical value setting on digital display
  • Differentiation mode: C mode/C + I mode/I mode (switch-selectable)
  • Timer function: OFF-delay timer (40 ms)/Timer OFF (switch-selectable)
  • Output selection: Match output: Turns on when target color matches registered color. Mismatch output: Turns on when target color is different from registered color. (switch-selectable)
  • External synchronization input: Response speed: 500 ?s max.
  • External calibration input: Input response time: 20 ms min.
  • Registered color selection: 8-bank selection (By external input), Non-voltage input, Input response time: 20 ms min.
