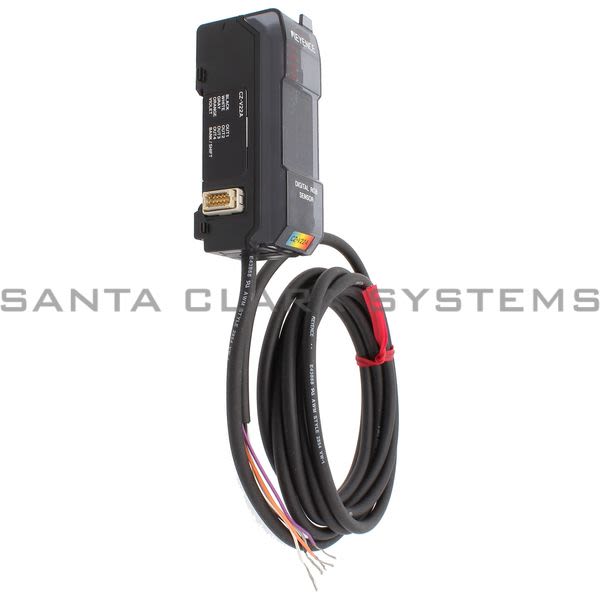

• Keyence CZ-V22A Digital Sensor Product Image

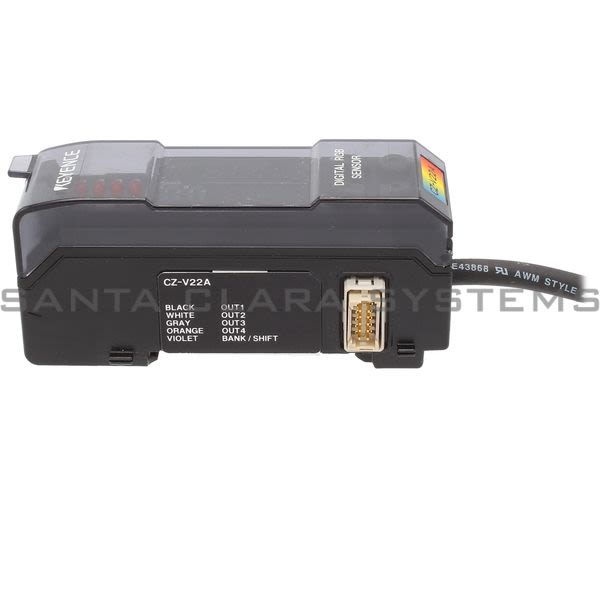

  • Keyence CZ-V22A Digital Sensor Product Image
  • Keyence CZ-V22A Digital Sensor Product Image
  • Keyence CZ-V22A Digital Sensor Product Image
  • Keyence CZ-V22A Barcode

CZ-V22A

Product Summary:

  • Weight: Approx. 100 g
  • Response time: 200 us (HIGH SPEED)/1 ms (FINE)/4 ms (TURBO)/8 ms (SUPER)
  • Output: NPN output
  • Material: Housing, cover: Polycarbonate
  • Accessories: End unit x 2
Get a Quote

Current response time:

By 5AM PT on Monday
  • Description: Digital Sensor
  • Weight: Approx. 100 g
  • Response time: 200 us (HIGH SPEED)/1 ms (FINE)/4 ms (TURBO)/8 ms (SUPER)
  • Output: NPN output
  • Material: Housing, cover: Polycarbonate
  • Accessories: End unit x 2
  • Main unit/expansion unit: Expansion unit
  • Control output: NPN open-collector x 4 channels. 40 VDC max., Up to 100 mA for one output, Up to 200 mA in total of 4 outputs, Residual voltage: 1.0 V max.
  • Protection circuit: Reverse-polarity protection, overcurrent protection, surge absorber
  • External tuning input, external bank switch input (C/C + I-mode), external shift input (super I-mode): Input time: 20 ms min.
  • Timer function: Timer OFF/OFF-delay/ON-delay/One-shot, Timer time: 1 to 1000 ms adkistab;e (for each bank respectively)
  • Unit function: Up to 3 units (4 units total including the main unit)
  • Number of interference prevention units: 0 for HIGH SPEED; 2 for FINE/TURBO/SUPER
  • Rating - Power voltage: 24 V DC, Ripple (P-P): 10% max.
  • Rating - Current consumption: Normal mode: 1.5 W (62.5 mA max.), Eco-mode: 1 W (42.0 mA max.)
  • Enviromental resistance - Operating temperature range: -10 to +55*C 14 to 131*F, No freezing
  • Enviromental resistance - Vibration: 10 to 55 Hz, 1.5 mm 0.06" double-amplitude in X, Y, and Z directions, 2 hours respectively
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on CZ-V22A . Santa Clara Systems carries 1,903 items from Keyence.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
