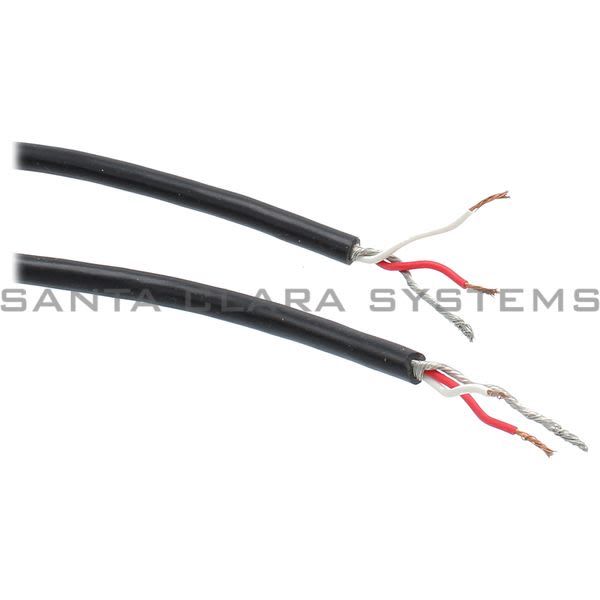

• Keyence DH-220 Proximity Sensor Product Image

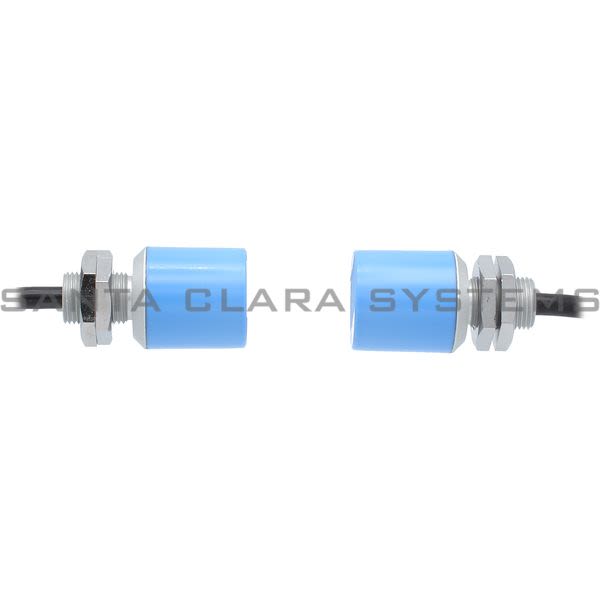

  • Keyence DH-220 Proximity Sensor Product Image

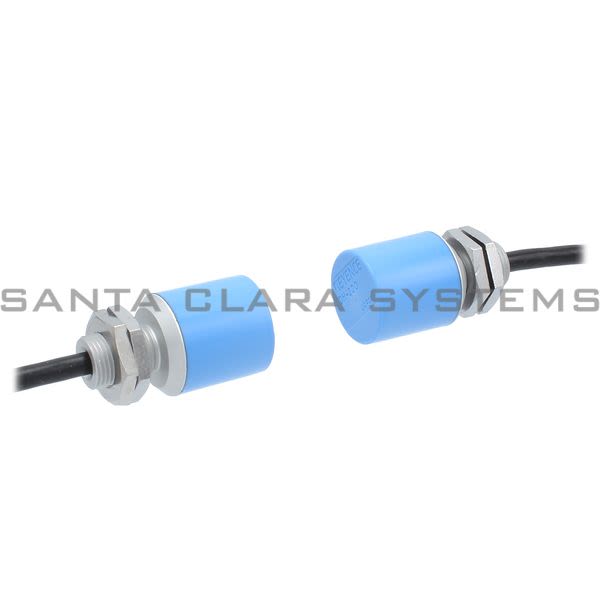

  • Keyence DH-220 Proximity Sensor Product Image
  • Keyence DH-220 Proximity Sensor Product Image
  • Keyence DH-220 Barcode

DH-220

Product Summary:

  • Type: 2 head type (Sensor head)
  • Amplifier unit: DD-860
  • Shape: Standard
  • Maximum separation: 30 mm 1.18"
  • Output - Response time: 50 ms (selectable: 5 ms)
Get a Quote

Current response time:

By 5AM PT on Wednesday
  • Description: Proximity Sensor
  • Output - Response time: 50 ms (selectable: 5 ms)
  • Rating - Power voltage: 115/230 VAC 15%, 50/60 Hz
  • Rating - Power consumption: 10 VAC max.
  • Environmental resistance - Operating temperature range: -10 to +60C 14 to 140F
  • Environmental resistance - Operating ambient humidity: 35 to 85% RH (No condensation)
  • Environmental resistance - Vibration: 10 to 55 Hz, double amplitude: 1.5 mm 0.06", 2 hours in each of X, Y, and Z directions
  • Weight: Approx 300 g
  • Footnotes: *1 NPN output can easily be converted to PNP output by connecting the optional OP-5148 PNP output converter.
  • Type: 2 head type (Sensor head)
  • Amplifier unit: DD-860
  • Shape: Standard
  • Detection method: Detection with a target between the transmitter and the receiver
  • Plate thickness: [T/R separation : 30 mm 1.18" max.] Steel *1 : 0.04 mm to 4.5 mm 0.002"to 0.18" Aluminum : 0.02 mm to 10 mm0.001" to 0.39" Copper : 0.01 mm to 5.0 mm0.0004" to 0.20" Brass : 0.03 mm to 5.0 mm0.001" to 0.20" Stainless steel : 0.1 mm to 5.0 mm0.004" to 0.20"
  • Maximum separation: 30 mm 1.18"
  • Allowable vibration: 30 mm 1.18" max. (100 x 100 mm 3.94" t=3.2 mm 0.13" max.)
  • Minimum detectable object: 50 x 50 mm 1.97" (T-to-R distance: 30 mm 1.18" Vibration: 4 mm 0.16")
  • Output - Control output 1: NPN: 100 mA (40 V) max., Residual voltage: 1 V max.*1
  • Output - Control output 2: Relay output SPDT: 250 VAC, 2 A (resistive load)*1
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on DH-220 . Santa Clara Systems carries 1,405 items from Keyence.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
