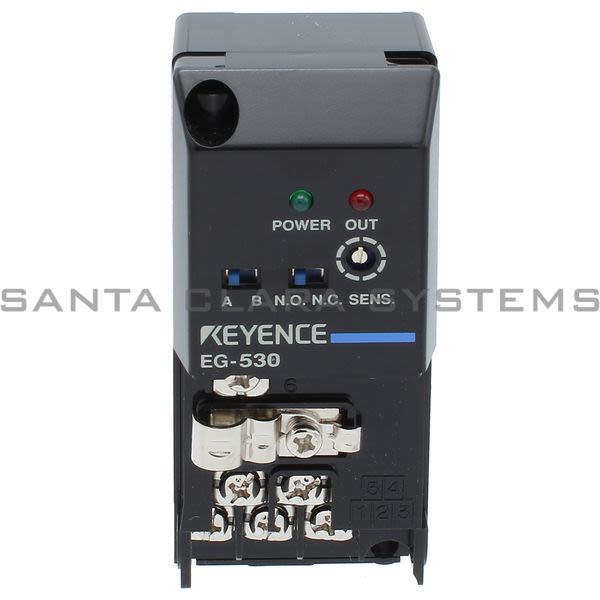

• Keyence EG-530 High Accuracy Positioning Sensor Product Image

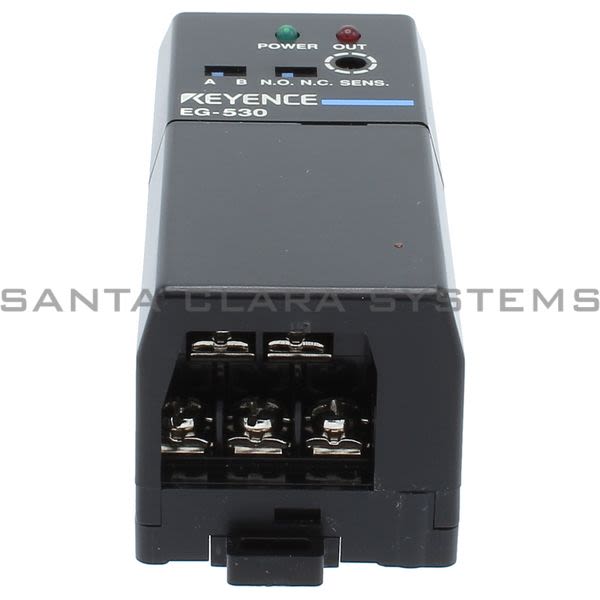

  • Keyence EG-530 High Accuracy Positioning Sensor Product Image

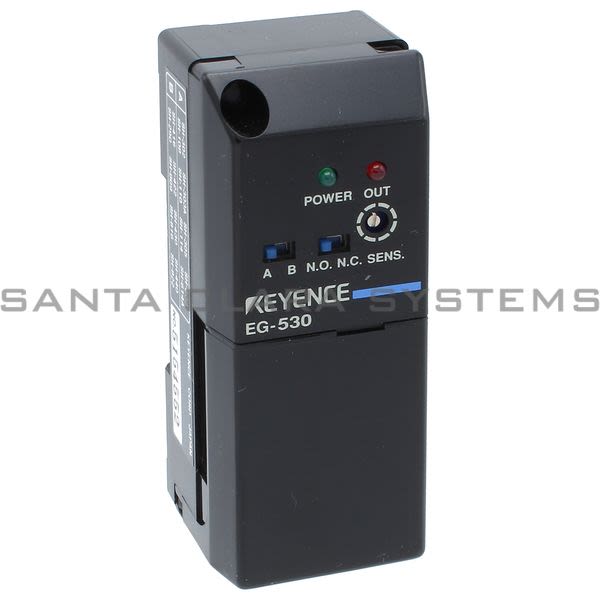

  • Keyence EG-530 High Accuracy Positioning Sensor Product Image

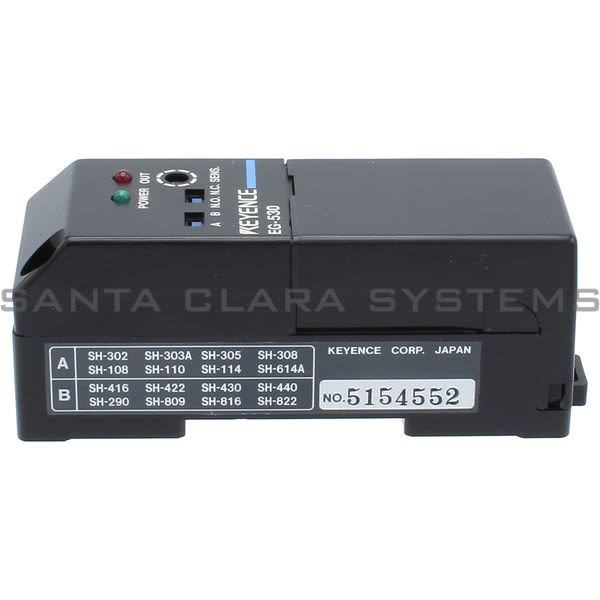

  • Keyence EG-530 High Accuracy Positioning Sensor Product Image
  • Keyence EG-530 Barcode

EG-530

Product Summary:

  • Weight: Approx 75 g
  • Type: DC
  • Sensitivity adjustment: 15-turn trimmer
  • Function - Operation mode: N.O./N.C. (switch-selectable)
  • Output - Response time (Relay contact): 1 ms
Get a Quote

Current response time:

By 5AM PT on Monday
  • Description: High Accuracy Positioning Sensor
  • Weight: Approx 75 g
  • Footnotes: *1 Above values obtained when the detecting distance is set at 50% of the maximum stable detecting distance.
  • Type: DC
  • Sensitivity adjustment: 15-turn trimmer
  • Function - Operation mode: N.O./N.C. (switch-selectable)
  • Output - Control output 1 (NPN): 100 mA max. (40 V max.) Residual voltage? 1 V max.
  • Output - Disconnection alarm output (NPN): 100 mA max. (40 V max.) Residual voltage? 1 V max.
  • Output - Response time (Relay contact): 1 ms
  • OFF-delay time: 1 ms
  • Temperature characteristics: 0.08%/C*1
  • Rating - Power voltage: 12 to 24 VDC? 10% max.
  • Rating - Power consumption: 100 mA max.
  • Environmental resistance - Operating temperature range: 0 to 50C 32 to 122F
  • Environmental resistance - Operating ambient humidity: 35 to 85% RH (No condensation)
  • Environmental resistance - Vibration: 10 to 55 Hz, 1.5 mm 0.06" double amplitude in X, Y, and Z directions, 2 hours respectively
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on EG-530 . Santa Clara Systems carries 1,903 items from Keyence.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
