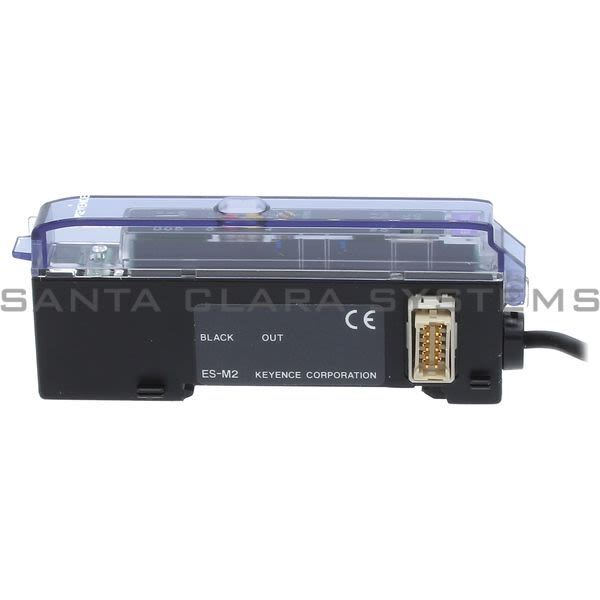

• Keyence ES-M2 Proximity Sensor Product Image

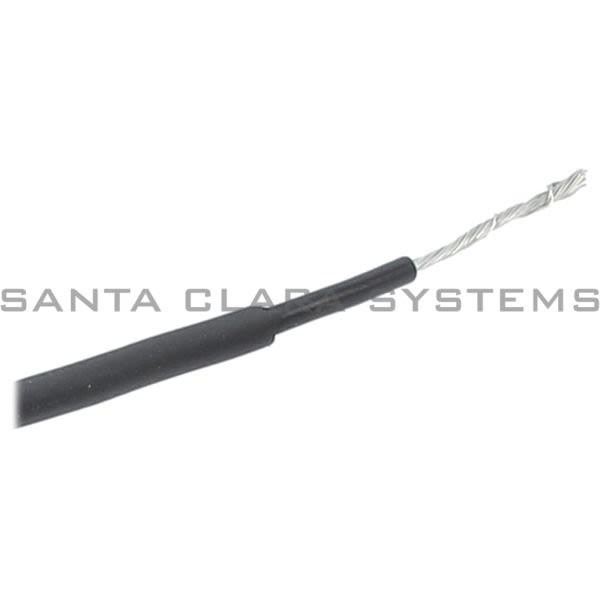

  • Keyence ES-M2 Proximity Sensor Product Image

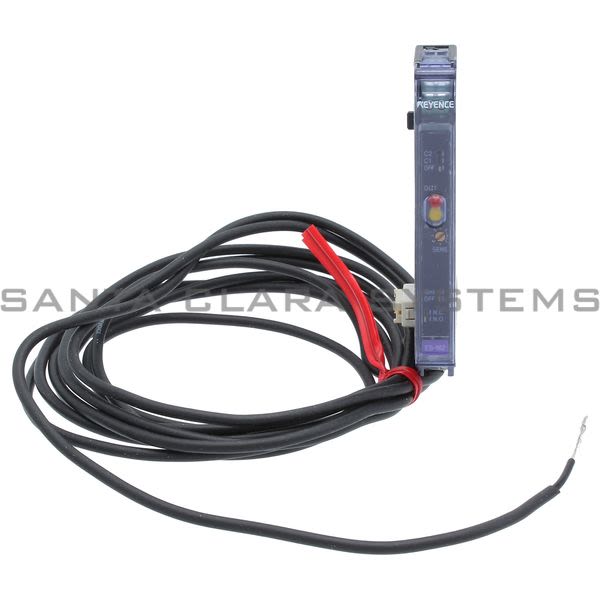

  • Keyence ES-M2 Proximity Sensor Product Image
  • Keyence ES-M2 Proximity Sensor Product Image
  • Keyence ES-M2 Barcode

ES-M2

Product Summary:

  • Weight: Approx. 35 g (including nuts and 2-m 9.8' cable)
  • Type: One-line expansion system
  • Response time: 1 ms max.
  • Output: NPN
  • Sensitivity adjustment: 25-turn trimmer
Get a Quote

Current response time:

11 Minutes 11 Seconds
  • Description: Proximity Sensor
  • Weight: Approx. 35 g (including nuts and 2-m 9.8' cable)
  • Footnotes: *1 The ES-M1(P)/M2(P) cannot be connected to the EH-422, 430, 440 or 290. *2 During N.O. operating configuration, the off delay timer is 10 ms. During N.C., the on delay timer is 10 ms. *3 Broken connection warning output is not available on the ES-M2 (P). *4 The ambient temperature changes according to the following conditions when expansion units are added. When adding units, always attach them to a DIN rail (metal plate) and set the output current to 20 mA or less. 1 to 10 expansion units: 0 to 50?C 32 to 122?F 11 to 16 expansion units: 0 to 45?C 32 to 113?F
  • Type: One-line expansion system
  • Response time: 1 ms max.
  • Output: NPN
  • Sensitivity adjustment: 25-turn trimmer
  • Shape: Expansionunit
  • Operation mode: N.O./N.C. switch-selectable
  • Timer function: 10-ms delay / timer OFF switchable*2
  • Output - Control output: NPN open collector 100 mA max. 40 V, residual voltage 1 V max.
  • Disconnection alarm output: ?*3
  • Temperature characteristics: Within 8% of detecting distance at +23C 73.4F when within 0 to 50C 32 to 122F temperature range
  • Protection circuit: Reverse power connection protection, output overcurrent protection, output surge protection
  • Rating - Power voltage: 12 to 24 VDC, ripple (P-P) 10% max.
  • Rating - Current/power consumption: 25 mA max.
  • Environmental resistance - Operating temperature range: 0 to 50C 32 to 122F *4
  • Environmental resistance - Operating ambient humidity: 35 to 85% RH (No condensation)
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on ES-M2 . Santa Clara Systems carries 1,536 items from Keyence.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
