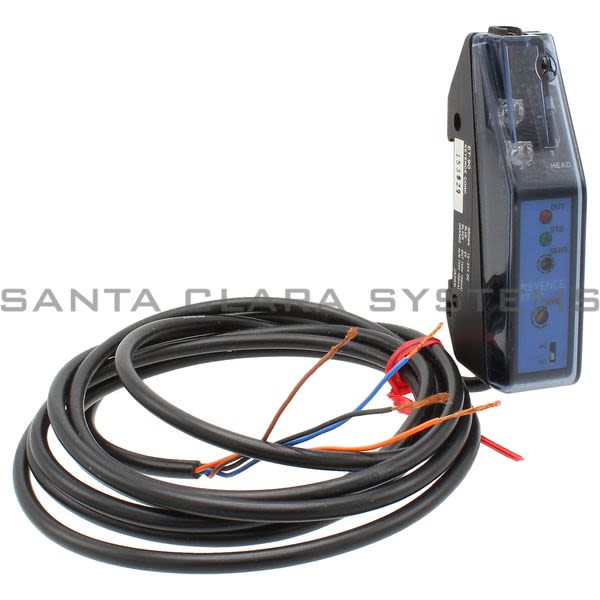

• Keyence ET-90 Sensor Amplifier Product Image

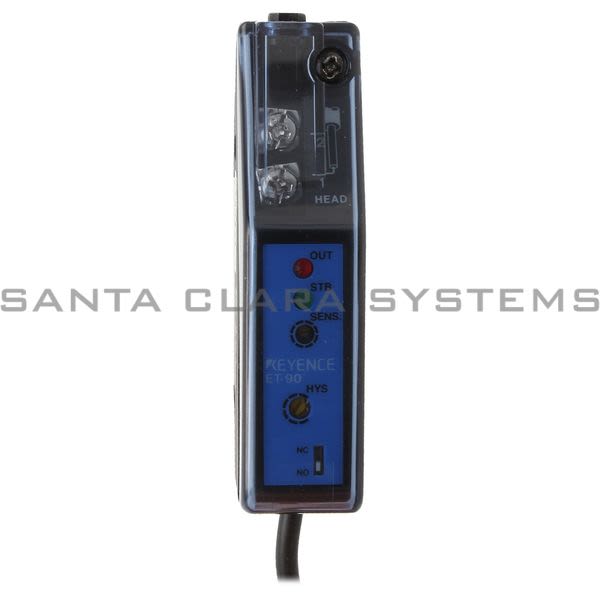

  • Keyence ET-90 Sensor Amplifier Product Image

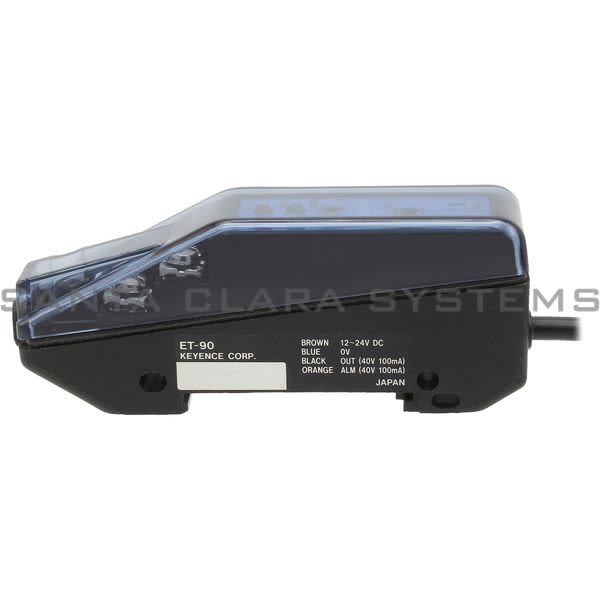

  • Keyence ET-90 Sensor Amplifier Product Image

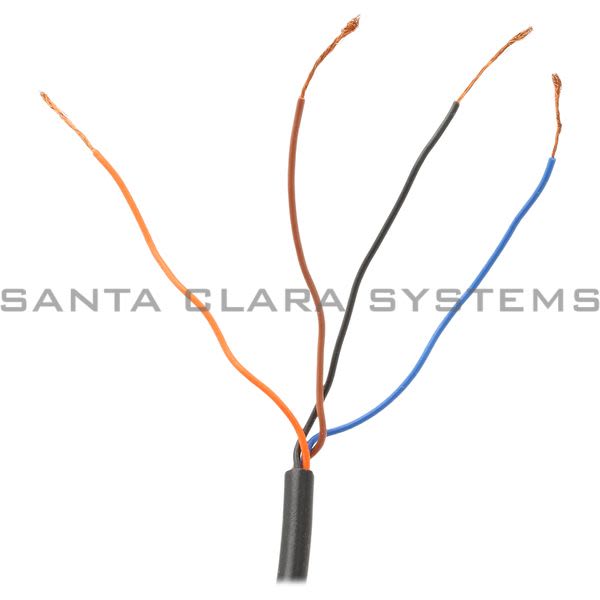

  • Keyence ET-90 Sensor Amplifier Product Image
  • Keyence ET-90 Barcode

ET-90

Product Summary:

  • Weight: Approx. 80 g (including 2m cable)
  • Type: Shielded
  • Accessories: Dedicated mounting bracket, plastic screwdriver
  • Sensitivity adjustment: 15-turn trimmer
  • Detectable object: Nonferrous metals
Get a Quote

Current response time:

By 5AM PT on Monday
  • Description: Sensor Amplifier
  • Weight: Approx. 80 g (including 2m cable)
  • Type: Shielded
  • Accessories: Dedicated mounting bracket, plastic screwdriver
  • Sensitivity adjustment: 15-turn trimmer
  • Detectable object: Nonferrous metals
  • Hysteresis adjustment: 1-turn trimmer (240), approx. 2 to 10% of detecting distance (variable)
  • Operation mode: N.O./N.C. (switch-selectable)
  • Temperature characteristics: +25 to -15% max. of detecting distance at 23C 73.4F, within 0 to 50C 32 to 122F
  • Output - Control output: 100 mA max. (40 V max.), Residual voltage: 1 V max.
  • Control output - Disconnection alarm output: 100 mA max. (40 V max.), Residual voltage: 1 V max.
  • Protection circuit: Reversed polarity, surge absorber
  • Indicator lamp: Output: Red LED, Stable operation: Green LED
  • Rating - Power voltage: 12 to 24 VDC10%
  • Rating - Current consumption.: 45 mA max.
  • Environmental resistance - Operating temperature range: 0 to 50C 32 to 122F, No condensation
  • Environmental resistance - Operating ambient humidity: 35 to 85% RH (No condensation)
  • Environmental resistance - Vibration: 10 to 55 Hz, 1.5 mm 0.06" double amplitude in X, Y, and Z directions, 2 hours
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on ET-90 . Santa Clara Systems carries 1,913 items from Keyence.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
