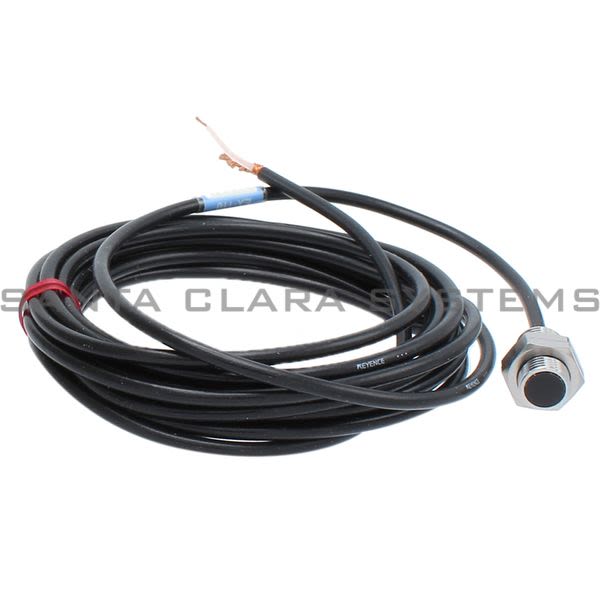

• Keyence EX-110 Inductive Gauging Sensor Product Image

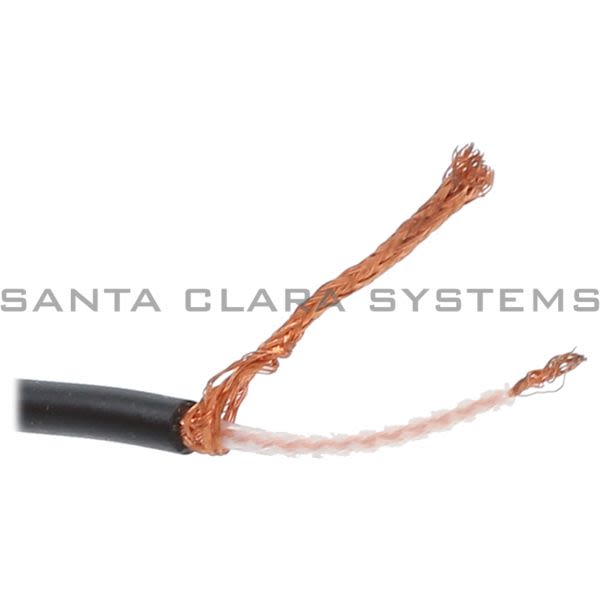

  • Keyence EX-110 Inductive Gauging Sensor Product Image
  • Keyence EX-110 Inductive Gauging Sensor Product Image
  • Keyence EX-110 Inductive Gauging Sensor Product Image
  • Keyence EX-110 Barcode

EX-110

Product Summary:

  • Type: Sensor head
  • Amplifier unit: EX-202
  • Shape: M10 Threaded
  • Measuring range: 0 to 2 mm 0.08"
  • Analog output - Output voltage: 0 to 5 V (Output impedance 100?)*1
Get a Quote
           or
  • Description: Inductive Gauging Sensor
  • Functions: Auto-zero function/Response frequency selecting function
  • Temperature characteristics: 0.03% of F.S./C*3*1
  • Rating - Power supply voltage: 12 to 24 VDC 10%
  • Rating - Current consumption.: 240 mA max.
  • Environmental resistance - Enclosure rating: IP67
  • Environmental resistance - Operating temperature range: -10 to 60C 14 to 140F (No freezing)
  • Environmental resistance - Operating ambient humidity: 35 to 85% RH (No condensation)
  • Environmental resistance - Vibration: 10 to 55 Hz, double amplitude: 1.5 mm 0.06", 2 hours in each of X, Y, and Z directions
  • Weight - Sensor head: Approx. 55 g (including nuts and 3-m 9.8' cable)
  • Footnotes: *1 The above data was obtained using a steel target (S45C, SS41, t=1 mm 0.04" ). When measuring aluminum, copper, or stainless steel targets, refer to the linear characteristics for these materials. *2 NPN output can easily be converted to PNP output by connecting the optional OP-5148 PNP output converter. *3 When the distance between the sensor head and the target is within 50% of the measuring range.
  • Type: Sensor head
  • Amplifier unit: EX-202
  • Shape: M10 Threaded
  • Measuring range: 0 to 2 mm 0.08"
  • Analog output - Output voltage: 0 to 5 V (Output impedance 100?)*1
  • Analog output - Output current: 4 to 20 mA (Applicable load: 0 to 350?)*1
  • Analog output - Resolution: 0.04% of F.S. (Response frequency: LOW)*1
  • Analog output - Linearity: 1% of F.S.*1
  • Analog output - Response frequency - HIGH: 15 kHz (-3 dB)*1
  • Analog output - Response frequency - LOW: 1.3 kHz (-3 dB)*1
  • Disconnection alarm output (N.C.): NPN: 100 mA (40 V) max., Residual voltage: 1 V max. (N.C.)*2
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on EX-110 . Santa Clara Systems carries 1,357 items from Keyence.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
