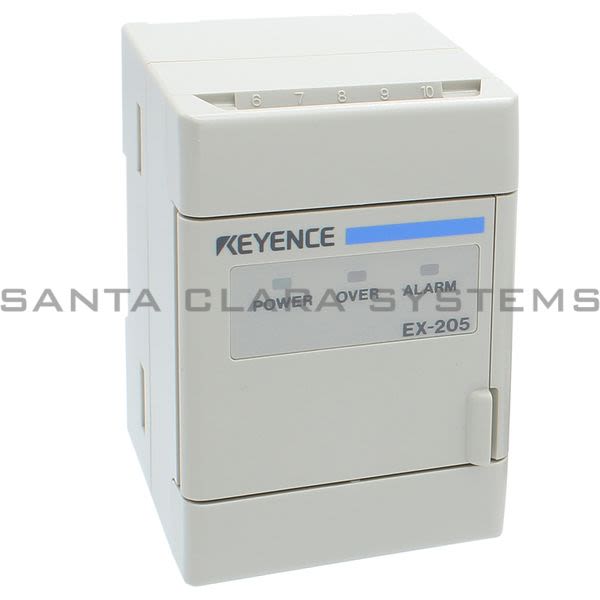

• Keyence EX-205 Inductive Sensor Amplifier Product Image

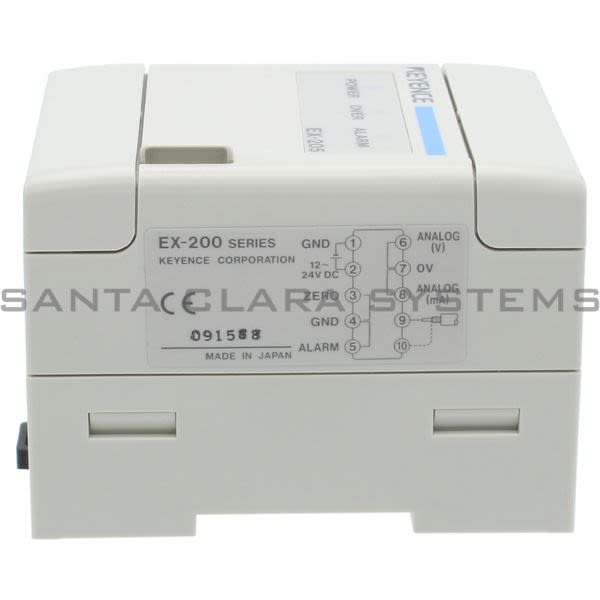

  • Keyence EX-205 Inductive Sensor Amplifier Product Image

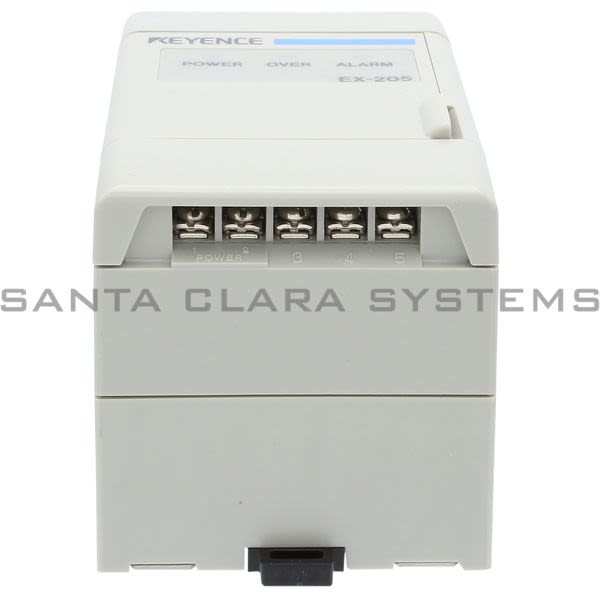

  • Keyence EX-205 Inductive Sensor Amplifier Product Image

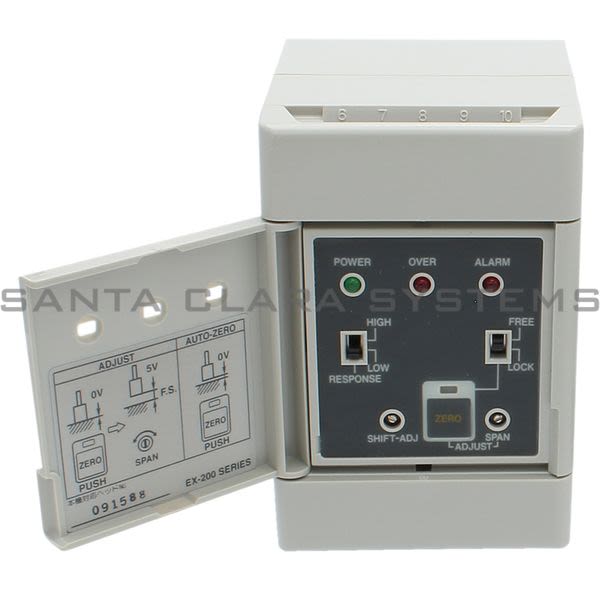

  • Keyence EX-205 Inductive Sensor Amplifier Product Image
  • Keyence EX-205 Barcode

EX-205

Product Summary:

  • Type: Controller
  • Function: Auto-zero function/ Response frequency selecting function
  • Shape: 14.5 0.57"/M16 Cylindrical/Threaded
  • Measuring range: 0 to 5 mm 0.20"
  • Analog output - Output voltage: 0 to 5 V (output impedance 100)
Get a Quote

Current response time:

By 5AM PT on Monday
  • Description: Inductive Sensor Amplifier
  • Type: Controller
  • Function: Auto-zero function/ Response frequency selecting function
  • Shape: 14.5 0.57"/M16 Cylindrical/Threaded
  • Measuring range: 0 to 5 mm 0.20"
  • Analog output - Output voltage: 0 to 5 V (output impedance 100)
  • Analog output - Output current: 4 to 20 mA (Applicable load: 0 to 350)
  • Analog output - Resolution: 0.04% of F.S. (Response frequency: LOW)
  • Analog output - Response frequency - HIGH: 13 kHz (-3 dB)
  • Analog output - Response frequency - LOW: 1.3 khz (-3 dB)
  • Disconnection alarm output (N.C.): NPN: 100 mA (40 V) max. Residual voltage: 1 V max. (N.C.)
  • Temperature characteristics: 0.04% of F.S./*C
  • Rating - Power supply voltage: 12 to 24 V DC +10%
  • Rating - Current consumption: 240 mA max.
  • Enviromental resistance - Enclosure rating: -
  • Enviromental resistance - Operating temperture range: 0 to 50*C 32 to 122*F
  • Enviromental resistance - Operating ambient humidity: 35 to 85% RH (No condensation)
  • Enviromental resistance - Vibration: 10 to 55 Hz, double amplitude: 1.5 mm 0.06", 2 hours in each of X, Y, and Z directions
  • Weight - Sensor head: Approx. 285g
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on EX-205 . Santa Clara Systems carries 1,903 items from Keyence.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
