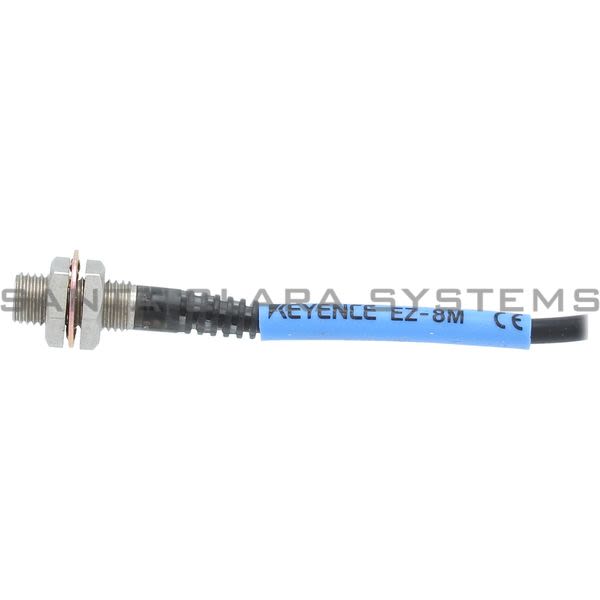

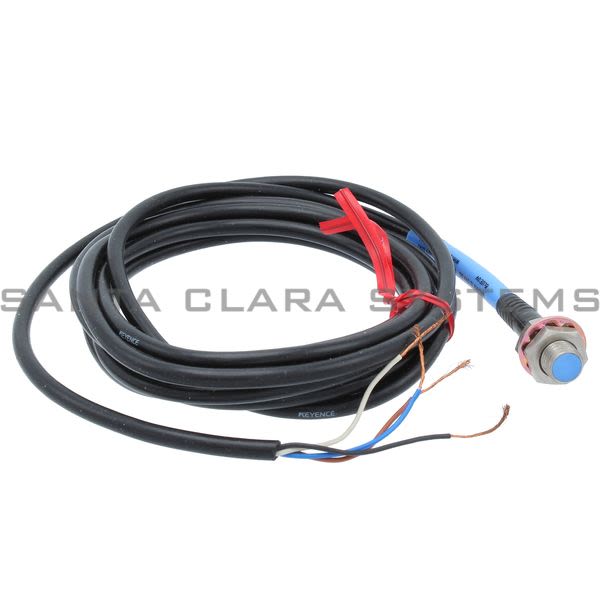

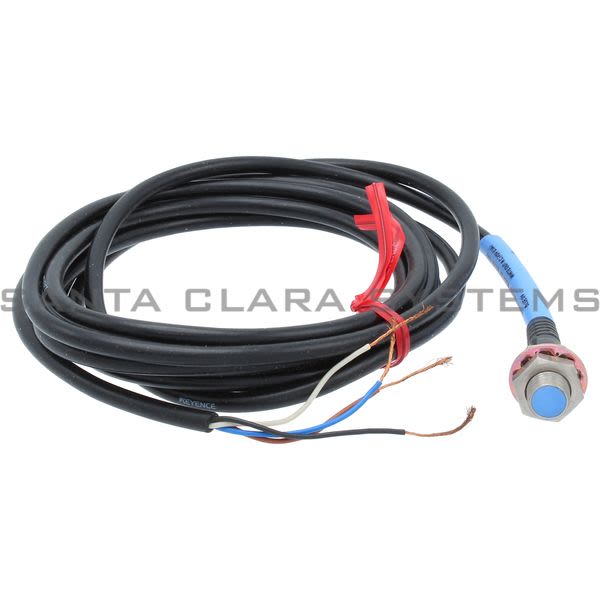

EZ-8M

Keyence - Photo Sensor

Product Summary:

Weight: Approx. 50 g
Type: Shielded
Accessories: Screw nut x 2, toothed washer x 1
Cable length: 2 m 6.6'
Shape: M8

Current response time:

18 Minutes 55 Seconds

Description: Photo Sensor
Weight: Approx. 50 g
Type: Shielded
Accessories: Screw nut x 2, toothed washer x 1
Cable length: 2 m 6.6'
Shape: M8
Detecting distance: 1.5 mm 0.06" ±10%
Detectable object: Ferrous metals (see Characteristics for nonferrous metals)
Standard target (iron, t=1mm 0.04"): 10 x 10 mm 0.39" x 0.39"
Hysteresis: 10% max. of detecting distance
Response frequency: 800 Hz

Operation mode: N.O./N.C.
Temperature characteristics: ±10% max. of detecting distance at +23°C 73.4°F, within -25 to +70°C -13 to 158°F
Control output: NPN open collector 100 mA max. (40 V max.), Residual voltage: 1 V max.
Rating - Power voltage: 12 to 24 VDC ±10%
Rating - Current consumption.: 13 mA max.
Environmental resistance - Enclosure rating: IP67
Environmental resistance - Operating temperature range: -25 to +80°C -13 to 176°F, No freezing
Environmental resistance - Operating ambient humidity: 35 to 95%, No condensation
Environmental resistance - Vibration: 10 to 55 Hz, 1.5 mm 0.06" double amplitude in X, Y, and Z directions, 2 hours
Environmental resistance - Shock resistance: 500 m/s2 1640.4' in X, Y, and Z directions, 3 times respectively
Case material: SUS303

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on EZ-8M . Santa Clara Systems carries 2,147 items from Keyence.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
