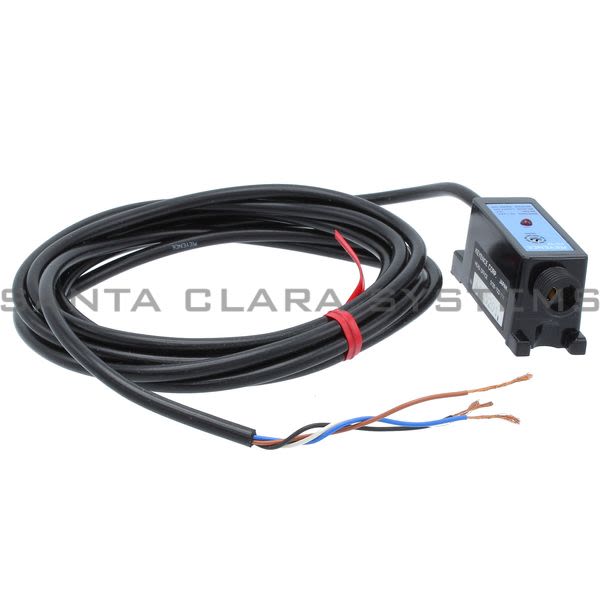

• Keyence FS-17 Photoelectric Sensor Product Image

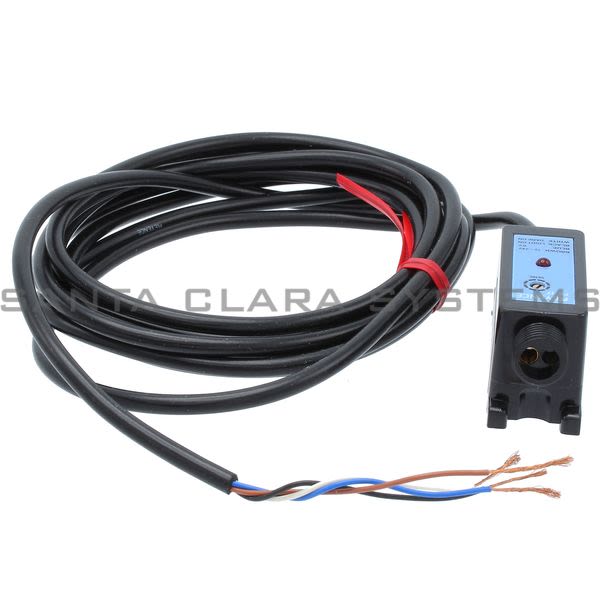

  • Keyence FS-17 Photoelectric Sensor Product Image

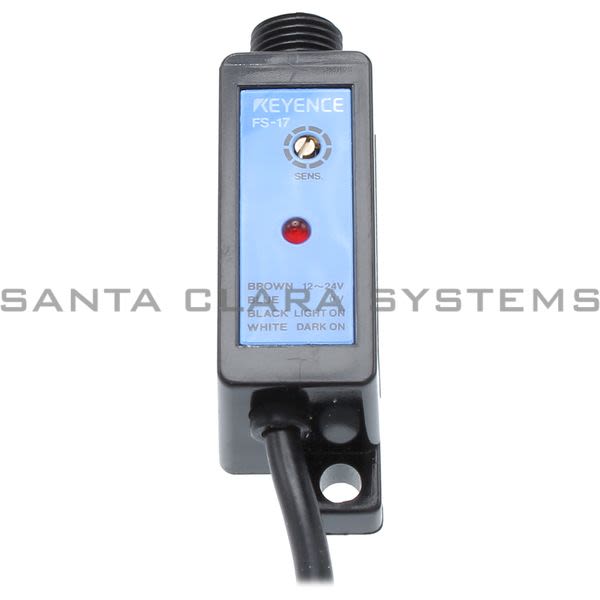

  • Keyence FS-17 Photoelectric Sensor Product Image

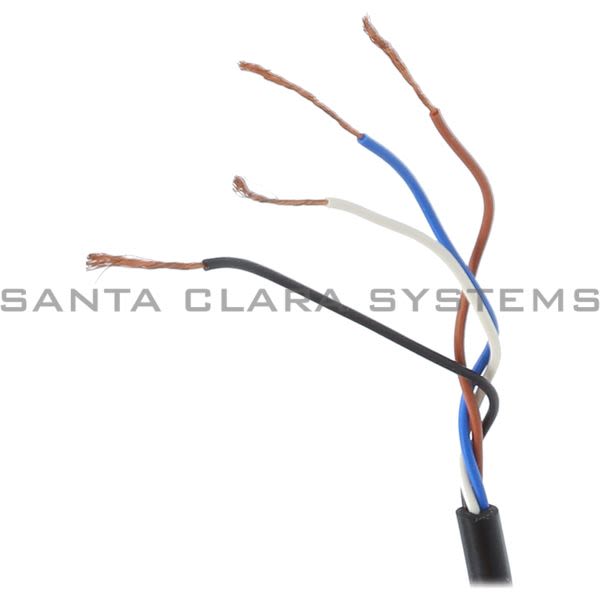

  • Keyence FS-17 Photoelectric Sensor Product Image
  • Keyence FS-17 Barcode

FS-17

Product Summary:

  • Light source: Red LED
  • Sensitivity adjustment: 7-turn trimmer
  • Response time: Approx 0.5 ms
  • Operation mode: Light-ON and Dark-ON dual output
  • Indicator lamp: Operation when lit: red LED
Get a Quote

Current response time:

By 5AM PT on Thursday
  • Description: Photoelectric Sensor
  • Rating - Power voltage: 12 to 24 VDC 10%. Ripple (P-P): 10% max
  • Rating- Current consumption: 35 mA or less
  • Enviromental resistance - Operating ambientluminance: Incandescent lamp: 10,000 lux max., Sunlight lux max.
  • Enviromental resistance - Operating ambient temperature: -10 to +55*C (no freezing)
  • Enviromental resistance - Operating ambient humidity: 35 to 85% RH
  • Material: Polycarbonate
  • Light source: Red LED
  • Sensitivity adjustment: 7-turn trimmer
  • Response time: Approx 0.5 ms
  • Operation mode: Light-ON and Dark-ON dual output
  • Indicator lamp: Operation when lit: red LED
  • Output: NPN output
  • Control output: NPN open-collector 100 mA max. (40V max.) Residual voltage 1 V max
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on FS-17 . Santa Clara Systems carries 1,475 items from Keyence.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
