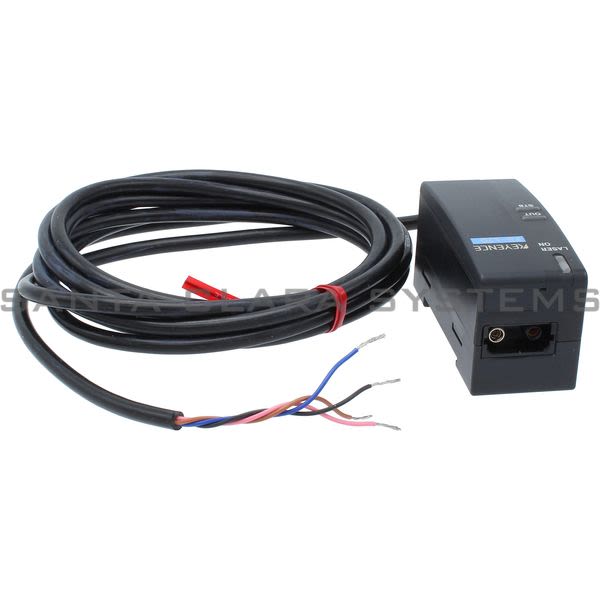

• Keyence FS-L70 Laser Sensor Amplifier Product Image

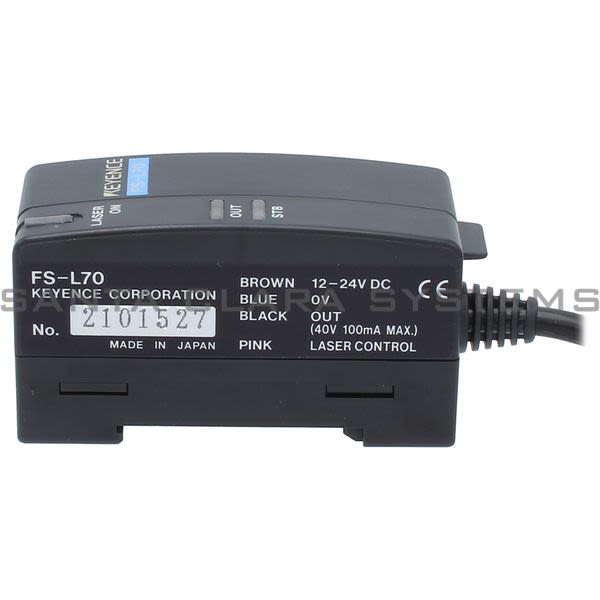

  • Keyence FS-L70 Laser Sensor Amplifier Product Image
  • Keyence FS-L70 Laser Sensor Amplifier Product Image
  • Keyence FS-L70 Laser Sensor Amplifier Product Image
  • Keyence FS-L70 Barcode

FS-L70

Product Summary:

  • Type: ?
  • Product name: ?
  • Cable length: ?
  • Allowable bending radius: ?
  • Sensitivity adjustment: 8-turn trimmer
Let Us Find It

Current response time:

By 5AM PT on Wednesday
  • Description: Laser Sensor Amplifier
  • Output: ?
  • Control output: NPN open-collector 100 mA max. (24 VDC max.), Residual voltage: 1 V max.
  • Stability output: ?
  • Protection circuit: Reversed polarity protection, Overcurrent protection, Surge absorber
  • Laser emission stop input: No-voltage input, light generation is stopped during input
  • Rating - Power voltage: 12 to 24 VDC 10%, Ripple (P-P): 10% max.
  • Rating - Current consumption.: 50 mA or less
  • Environmental resistance - Operating ambient luminance: Incandescent lamp: 10,000 lux max., Sunlight: 20,000 lux max.
  • Environmental resistance - Operating temperature range: 0 to +40? 32F to 104F
  • Environmental resistance - Operating ambient humidity: 35 to 85% RH (No condensation)
  • Environmental resistance - Vibration: 10 to 55 Hz, double amplitude: 1.5 mm 0.06", 2 hours each in the X, Y and Z axis
  • Environmental resistance - Shock resistance: 500 m/s2 in X, Y, and Z directions, 3 times respectively
  • Material: Polycarbonate
  • Weight: Approx 130 g
  • Type: ?
  • Product name: ?
  • Cable length: ?
  • Allowable bending radius: ?
  • Light source: Semiconductor laser (red), wavelength: 650 nm, 3 mW maximum, JIS standard Class 2
  • Sensitivity adjustment: 8-turn trimmer
  • Detecting distance (standard detection object): ?
  • Spot diameter: ?
  • Minimum detectable object: ?
  • Response time: 250 ?s
  • Hysteresis: ?
  • Operation mode: LIGHT-ON/DARK-ON (switch-selectable)
  • Indicator lamp: Output: red LED, stable operation and laser light generation: green LED
  • Timer function: On delay, off delay, timer off (switchable by way of a switch; trimmer variable between 40 ms and 5 s)
  • External tuning input signal: ?
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on FS-L70 . Santa Clara Systems carries 1,382 items from Keyence.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
