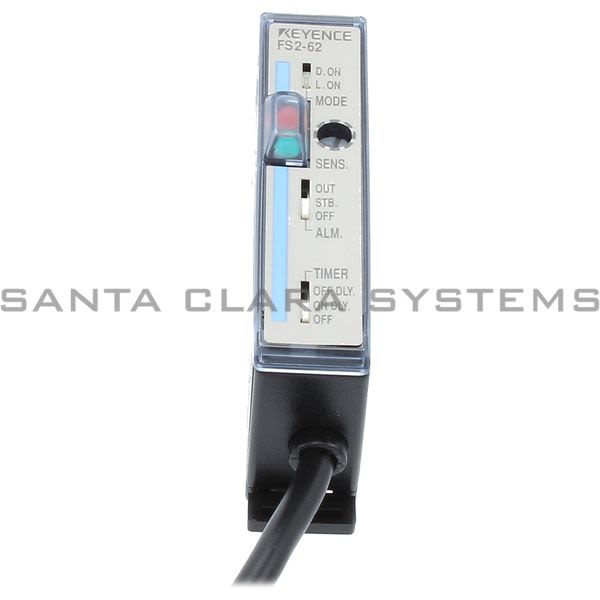

• Keyence FS2-62 Liquid Level Detector Product Image

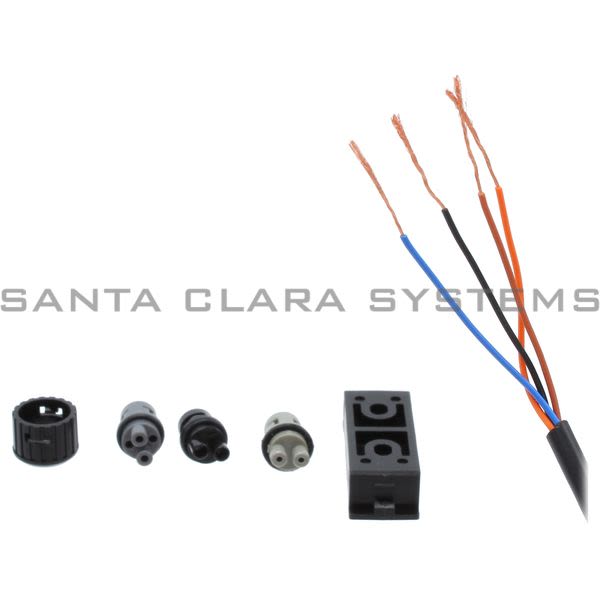

  • Keyence FS2-62 Liquid Level Detector Product Image
  • Keyence FS2-62 Liquid Level Detector Product Image
  • Keyence FS2-62 Liquid Level Detector Product Image
  • Keyence FS2-62 Liquid Level Detector Product Image
  • Keyence FS2-62 Barcode

FS2-62

Product Summary:

  • Type: Trimmer?Ultra-long detecting distance
  • Light source: Red LED
  • Sensitivity adjustment: 8-turn trimmer
  • Response time: 500 ?s
  • Operation mode: LIGHT-ON/DARK-ON (switch-selectable)
Get a Quote
           or
  • Description: Liquid Level Detector
  • Protection circuit: Reversed polarity protection, Overcurrent protection, Surge absorber
  • Rating - Power voltage: 12 to 24 VDC 10%, Ripple (P-P): 10% max.
  • Rating - Current consumption.: 35 mA or less
  • Environmental resistance - Operating ambient luminance: Incandescent lamp: 10,000 lux max., Sunlight: 20,000 lux max.
  • Environmental resistance - Operating temperature range: -10 to 55C 14 to 131F, No freezing
  • Environmental resistance - Operating ambient humidity: 35 to 85% RH (No condensation)
  • Environmental resistance - Vibration: 10 to 55 Hz, double amplitude: 1.5 mm 0.06", 2 hours each in the X, Y and Z axis
  • Environmental resistance - Shock resistance: 500 m/s2 in X, Y and Z directions, 3 times respectively
  • Material: Polycarbonate
  • Weight: Approx 61 g
  • Type: Trimmer?Ultra-long detecting distance
  • Light source: Red LED
  • Sensitivity adjustment: 8-turn trimmer
  • Response time: 500 ?s
  • Operation mode: LIGHT-ON/DARK-ON (switch-selectable)
  • Indicator lamp: Output: Red LED Stable operation: Green LED
  • Timer function: ON-delay: 40 ms/OFF-delay: 40 ms/Timer OFF (switch-selectable)
  • External calibration input signal: ?
  • Buzzer mode: Buzzer ON when control output turns ON/Buzzer ON when alarm output turns ON/Buzzer OFF (switch-selectable)
  • Output: NPN output
  • Control output: NPN open-collector 100 mA max. (40 V max.), Residual voltage 1 V max.
  • Stability output: NPN open-collector 50 mA max. (40 V max.), Residual voltage 1 V max.
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on FS2-62 . Santa Clara Systems carries 1,357 items from Keyence.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
