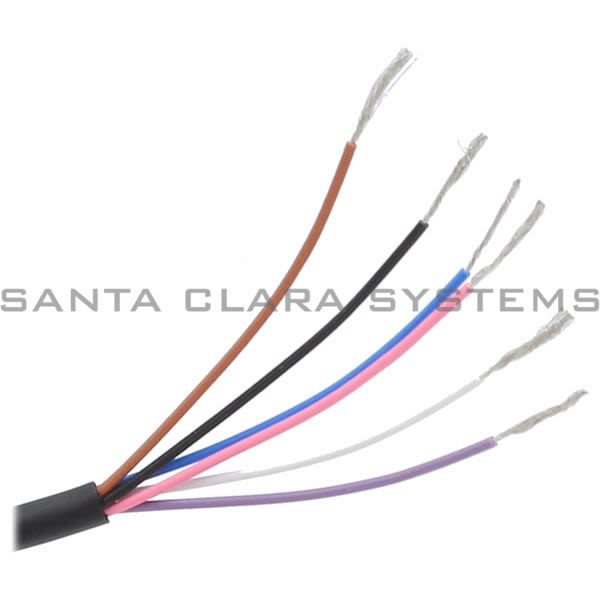

• Keyence FT-50AWP Multi-Function Amplifier Product Image

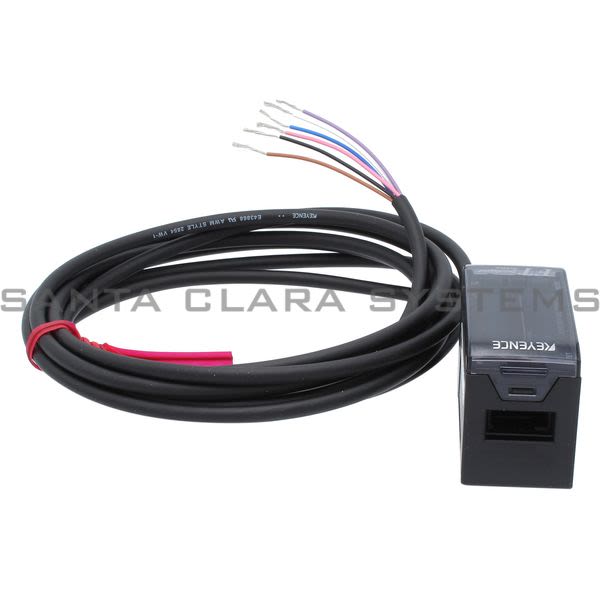

  • Keyence FT-50AWP Multi-Function Amplifier Product Image
  • Keyence FT-50AWP Multi-Function Amplifier Product Image
  • Keyence FT-50AWP Multi-Function Amplifier Product Image
  • Keyence FT-50AWP Barcode

FT-50AWP

Product Summary:

  • Type: DIN-rail mounting type
  • Power consumption - Normal: 1400 mW (For 12 V), 1600 mW (For 24 V)
  • Power consumption - Eco mode: 1150 mW (For 12 V), 1350 mW (For 24 V)
  • Hysteresis: Variable
  • External input - Timing input: Input time: 2 ms min.
Get a Quote

Current response time:

By 5AM PT on Monday
  • Description: Multi-Function Amplifier
  • Analog output: 4 to 20 mA, maximum load resistance: 260 - The upper- and lower-limit values of the analog output range can be set optionally.
  • Bank specifications: Emissivity (valid in temperature mode) and limit settings x 2 can be set for each bank.
  • Rating - Power voltage: 12 to 24 V DC 10% ripple (P-P) 10% or less
  • Environmental resistance - Operating temperature range: -10 to 50C 14 to 122F, No freezing*1
  • Environmental resistance - Operating ambient humidity: 35 to 85% RH (No condensation)
  • Environmental resistance - Vibration: 10 to 55 Hz, double amplitude: 1.5 mm 0.06", 2 hours in each of X, Y, and Z axis directions*2
  • Material - Main unit: Main unit, Cover: Polycarbonate, Keycaps: Polyester elastomer, Cable: Vinyl chloride
  • Material - Mounting bracket: SPCC
  • Accessories: DIN anchoring fixture, power cable, unit cover sticker
  • Weight: Approx 85 g
  • Footnotes: *1 Ambient temperature when using the analog output is -10 to 45C 14 to 113F *2 Ambient temperature when using the analog output is -10 to 45C 14 to 113F .
  • Type: DIN-rail mounting type
  • Power consumption - Normal: 1400 mW (For 12 V), 1600 mW (For 24 V)
  • Power consumption - Eco mode: 1150 mW (For 12 V), 1350 mW (For 24 V)
  • Display power: 4 + 1/two-digit 7-segment LED, dual-display (red/green) display (character height in the upper display (red): 8 mm 0.31", character height in the lower display (green): 5.7 mm 0.22"), Display updating cycle: 10/s
  • Operation indicator: Red LED x 3 (control output1/control output2/timing input indicator)
  • Display resolution: 0.1C or 1C 32.2F or 33.8F (when using the FT-H10/H20/H30), 1C 33.8F (when using the FT-H50/H40K/H50K)
  • Hysteresis: Variable
  • Response: HSP, 30, 100, 200, 500, 1000, or 5000 ms can be selected (In HSP: 10ms typ., 15 ms max.)
  • Bank selection: Pink and Purple wires can be configured for Bank Inputs #1,2 respectively for up to 4 total banks.
  • External input - Timing input: Input time: 2 ms min.
  • External input - Bank input: Input time: 20 ms min.
  • Control output: PNP open collector x 2 channels (N.O./N.C. selectable), 50 mA max. (30 VDC max.), residual voltage: 1 V max.
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on FT-50AWP . Santa Clara Systems carries 1,405 items from Keyence.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
