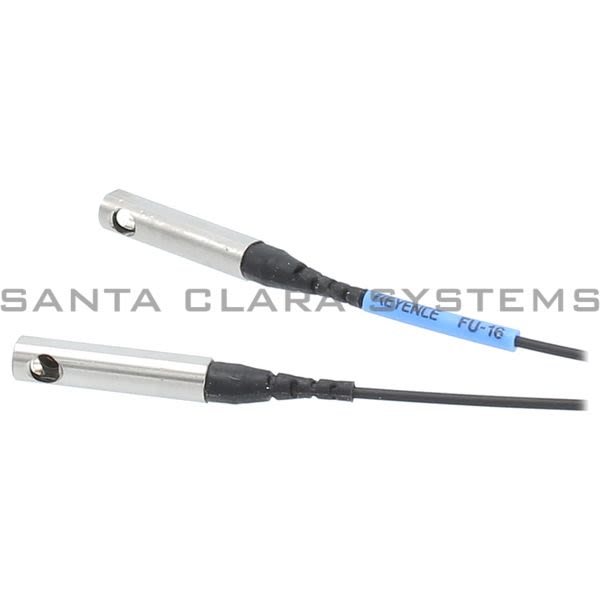

• Keyence FU-16 Fiber Optic Sensor Product Image

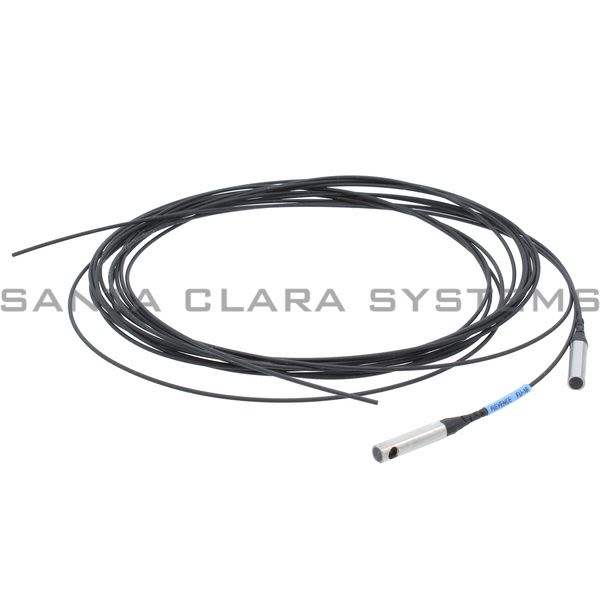

  • Keyence FU-16 Fiber Optic Sensor Product Image
  • Keyence FU-16 Fiber Optic Sensor Product Image

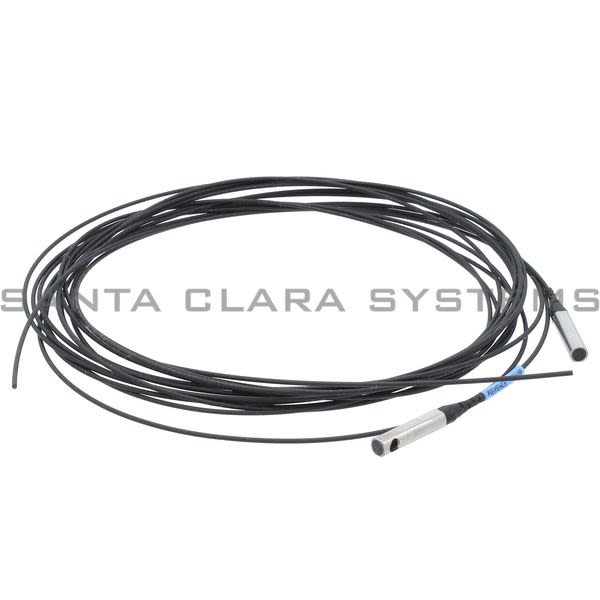

  • Keyence FU-16 Fiber Optic Sensor Product Image
  • Keyence FU-16 Barcode

FU-16

Product Summary:

  • Optical axis diameter (Standard target to be detected): 2.5 mm0.098"
  • Beam emitting direction: Side
  • Aperture angle: Approx 6
  • Fibre unit length: 2 m78.74" free-cut
  • Fibre unit diameter: 1.0
Get a Quote
           or
  • Description: Fiber Optic Sensor
  • Detection distance - Other power modes - ULTRA: 3600 mm 141.732"*1
  • Detection distance - Other power modes - SUPER: 3600 mm 141.732"*1
  • Detection distance - Other power modes - TURBO: 2700 mm106.299"
  • Detection distance - Other power modes - HSP: 1000 mm39.37"
  • Minimum detectable object: Object with a diameter of 0.1 mm0.004"*2
  • Weight: Approx 8 g
  • Footnotes: *1 The maximum detecting distance is 3600 mm141.732" because the fiber length is 2 m 6.56' for each side. *2 The minimum detectable object is the value when the detecting distance and sensitivity have been set to their optimal state.
  • Optical axis diameter (Standard target to be detected): 2.5 mm0.098"
  • Beam emitting direction: Side
  • Aperture angle: Approx 6
  • Fibre unit length: 2 m78.74" free-cut
  • Fibre unit diameter: 1.0
  • Ambient temperature: -40 to +70C -40 to 158F
  • Minimum bend radius: R10 mm0.394"
  • Detection distance - MEGA/FINE - MEGA: 3600 mm 141.732"*1
  • Detection distance - MEGA/FINE - FINE: 1900 mm74.803"
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on FU-16 . Santa Clara Systems carries 1,357 items from Keyence.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
