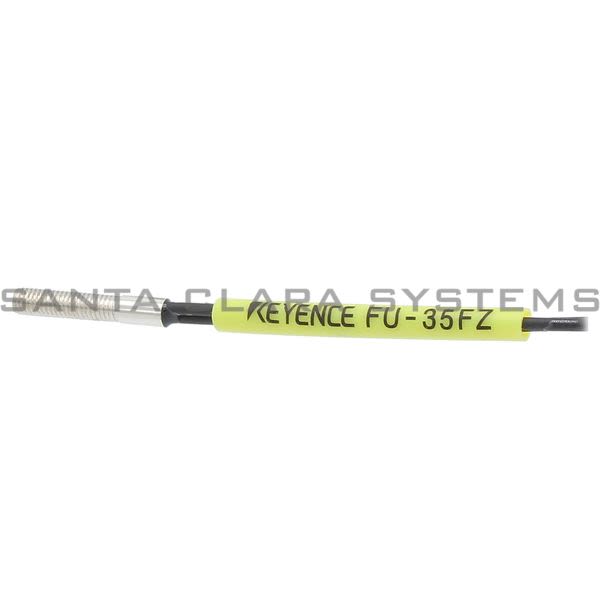

• Keyence FU-35FZ Dual Display Fiberoptic Sensor Product Image

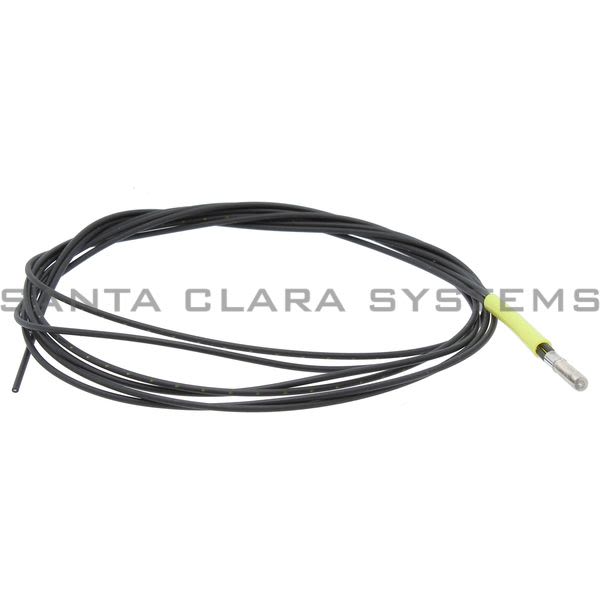

  • Keyence FU-35FZ Dual Display Fiberoptic Sensor Product Image

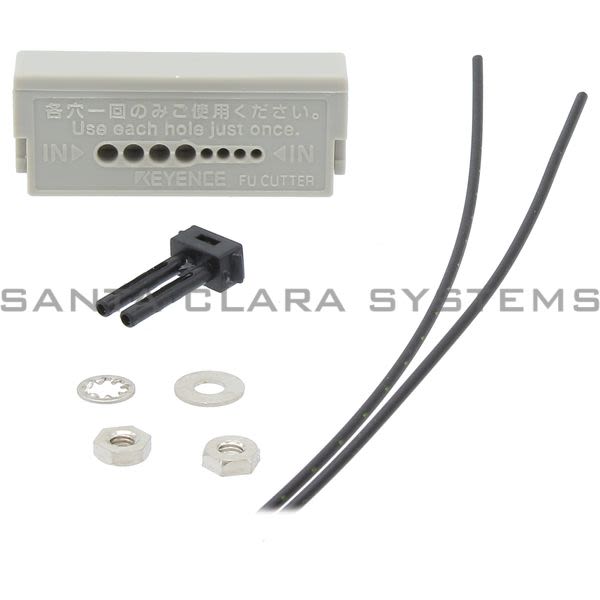

  • Keyence FU-35FZ Dual Display Fiberoptic Sensor Product Image

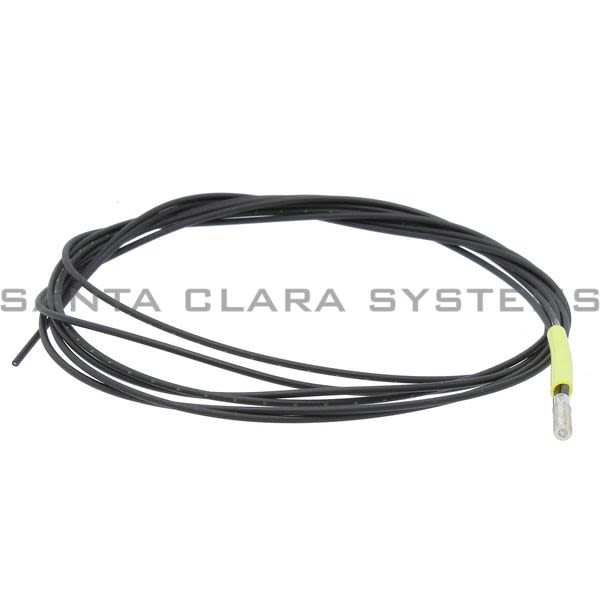

  • Keyence FU-35FZ Dual Display Fiberoptic Sensor Product Image
  • Keyence FU-35FZ Barcode

FU-35FZ

Product Summary:

  • Size: M3
  • Detection arrangement: Coaxial
  • Fibre unit length: 1 m39.37" free-cut
  • Fibre unit diameter: 1.32
  • Ambient temperature: -40 to +50C -40 to 122F
Get a Quote

Current response time:

5 Minutes 44 Seconds
  • Description: Dual Display Fiberoptic Sensor
  • Detection distance - Other power modes - ULTRA: 290 mm11.417"*1
  • Detection distance - Other power modes - SUPER: 190 mm7.48"*1
  • Detection distance - Other power modes - TURBO: 115 mm4.528"*1
  • Detection distance - Other power modes - HSP: 36 mm1.417"*1
  • Minimum detectable object: Gold wire with a diameter of 0.005 mm0.0002" *2
  • Weight: Approx 6g
  • Footnotes: *1 The detecting distance is a value for white mat paper (the standard detection object) detections. *2 The minimum detectable object is the value when the detecting distance and sensitivity have been set to their optimal state.
  • Size: M3
  • Detection arrangement: Coaxial
  • Fibre unit length: 1 m39.37" free-cut
  • Fibre unit diameter: 1.32
  • Ambient temperature: -40 to +50C -40 to 122F
  • Shape: Straight
  • Minimum bend radius: R2 mm0.079" Tough-Flex
  • Detection distance - MEGA/FINE - MEGA: 450 mm17.717"*1
  • Detection distance - MEGA/FINE - FINE: 72 mm2.835"*1
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on FU-35FZ . Santa Clara Systems carries 1,475 items from Keyence.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
