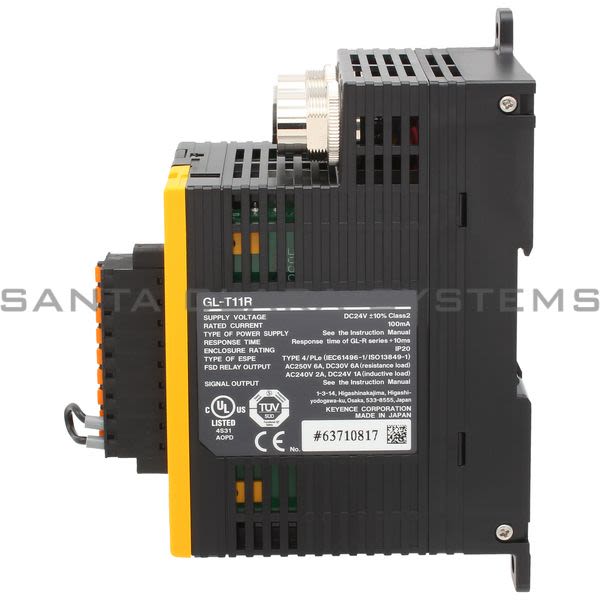

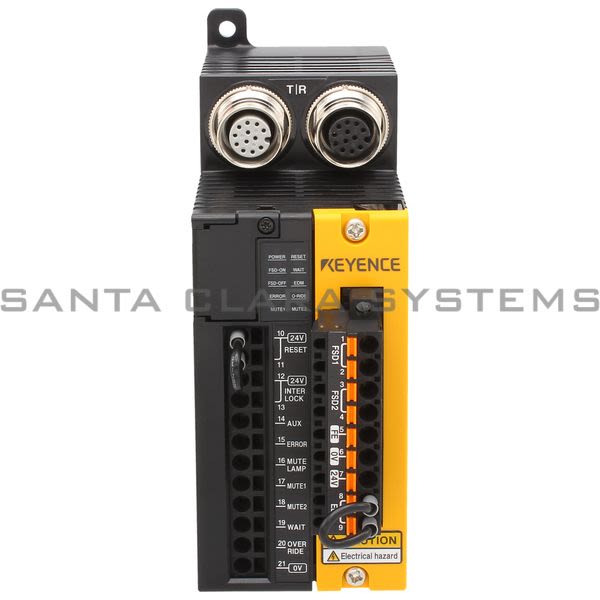

GL-T11R

Keyence - Safety Relay

Current response time:

By 5AM PT on Friday

Emergency?

Description: Safety Relay
Weight: Approx 310 g
Footnotes: *1 The output operation is the same as that when the PNP output type cable is used.
Applicable model: GL-R Series
Relay output - FSD1,2: 250 VAC 6 A 30 VDC 6 A (Resistance load) 240 VAC 2 A (COS=0.3) (Inductive load) 24 VDC 1 A (COS=0.3) (Inductive load)
Life-span - Electrical life-span: 100,000 cycles or more with 250 VAC 6 A resistance load (open/close frequency: 20 times/minute) 100,000 cycles or more with 30 VDC 6 A resistance load (open/close frequency: 20 times/minute) 500,000 cycles or more with 250 VAC 1 A resistance load (open/close frequency: 30 times/minute) 500,000 cycles or more with 30 VDC 1 A resistance load (open/close frequency: 30 times/minute) AC15: 100,000 cycles or more with 240 VAC 2 A inductive load (open/close frequency: 20 times/minute, cos = 0.3) DC13: 100,000 cycles or more with 24 VDC 1 A inductive load (open/close frequency: 20 times/minute, L/R = 48 ms)
Response time - ON?OFF: GL-R +10 ms
Response time - OFF?ON: GL-R +32 ms
Supplemental output (Non-safety-related output) - AUX: Transistor output (PNP/NPN input device can be connected.)*1 50 mA max., residual voltage 2.5 V max. (When the cable between the GL-R and GL-T11R is 5 m)
Supplemental output (Non-safety-related output) - Error output: Transistor output (PNP/NPN input device can be connected.)*1 50 mA max., residual voltage 2.5 V max. (When the cable between the GL-R and GL-T11R is 5 m)
Supplemental output (Non-safety-related output) - Muting lamp output: Incandescent lamp (24 VDC, 1 to 5.5 W) LED lamp (load current: 10 to 230 mA) can be connected.
External input - EDM input Wait input Reset input Muting input 1, 2 Override input: ON voltage: [Power supply voltage - 5 V] to [Power supply voltage] OFF voltage: Open or 0 to 3 V Short circuit current: Approx. 2.5 mA (Approx. 10 mA with EDM input only)
Rating - Power voltage: 24 VDC 10%, ripple (P-P) 10% or less, Class 2
Rating - Current consumption.: 100 mA max. (24 VDC, GL-T11R only)

Approved standards - EMC - EMS: EN61496-1, UL61496-1, IEC61496-1
Approved standards - EMC - EMI: EN55011 ClassA, FCC Part15B ClassA, ICES-003 ClassA
Approved standards - Safety: EN61496-1, UL61496-1, IEC61496-1 (Type4 ESPE) EN ISO13849-1 : 2015 (Category4, PLe) UL508, EN50178
Environmental resistance - Enclosure rating: IP20 (IEC60529) Must be installed within a control panel rated at IP54 or higher.
Environmental resistance - Pollution degree: 2
Environmental resistance - Overvoltage category: III
Environmental resistance - Ambient temperature: -10 to 55C 14 to 131F, No freezing
Environmental resistance - Ambient temperature for storage: -25 to +60C -13 to 140F (No freezing)
Environmental resistance - Relative humidity: 15 to 85% RH (No condensation)
Environmental resistance - Storage relative humidity: 15 to 95% RH
Environmental resistance - Altitude: 2,000 m or less
Environmental resistance - Vibration: 10 to 55 Hz, 0.7 mm 0.03" compound amplitude, 20 sweeps each in the X, Y and Z directions
Environmental resistance - Shock resistance: 100 m/s2 (approx. 10 G), 16 ms pulse in X, Y and Z directions, 1,000 times each axis
Material - Main unit case: Polycarbonate
