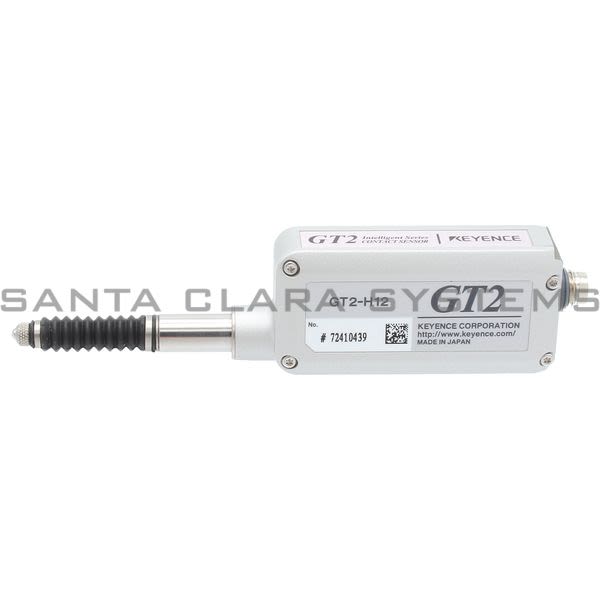

• Keyence GT2-H12 Contact Sensor Product Image

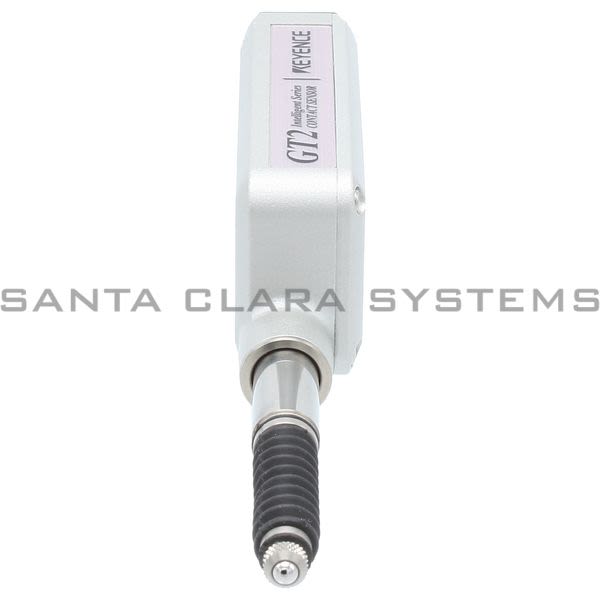

  • Keyence GT2-H12 Contact Sensor Product Image

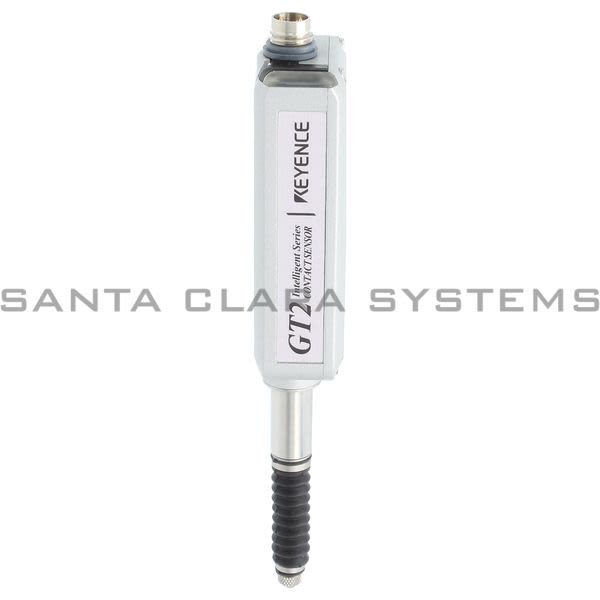

  • Keyence GT2-H12 Contact Sensor Product Image
  • Keyence GT2-H12 Contact Sensor Product Image
  • Keyence GT2-H12 Barcode

GT2-H12

Product Summary:

  • Measuring range: 12 mm 0.47"
  • Resolution: 0.5 ?m 0.02 Mil
  • Indicated accuracy: 2 ?m 0.08 Mil (p-p)*1
  • Measuring force - Downward mounting: 1.0 N*2
  • Measuring force - Side mounting: 0.9 N*2
Get a Quote

Current response time:

11 Minutes 26 Seconds
  • Description: Contact Sensor
  • Environmental resistance - Ambient temperature: -10 to +55C 14 to 131F (No freezing)
  • Environmental resistance - Relative humidity: 35 to 85% RH (No condensation)
  • Environmental resistance - Vibration: 10 to 55 Hz, 1.5 mm 0.06", double amplitude, 2 hours in each of X, Y, and Z directions
  • Materials - Main body: Main body cast: Zinc die-casting, Indicator: Polyarylate, Dust boot: NBR
  • Materials - Dust boot: NBR
  • Materials - Contact: TYPE304, 440C Stainless steel*3
  • Sensor head cable: Optional (connect to the M8 connector)
  • Weight: Approx 95 g (excluding cable)
  • Footnotes: *1 Value when the ambient temperature is 20C 68F. *2 Value at center of measuring range. Please note that the measurement force changes depending on the installation state of the dust boots. *3 The contact is included with the sensor.
  • Detection system: Quartz glass scale, CMOS image sensor projection system, Absolute type (without tracking error)
  • Measuring range: 12 mm 0.47"
  • Resolution: 0.5 ?m 0.02 Mil
  • Indicated accuracy: 2 ?m 0.08 Mil (p-p)*1
  • Measuring force - Downward mounting: 1.0 N*2
  • Measuring force - Side mounting: 0.9 N*2
  • Measuring force - Upward mounting: 0.8 N*2
  • Mechanical response: 10 Hz*1
  • Operation indicator light: 2-color LED (red, green)
  • Environmental resistance - Enclosure rating: IP67
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on GT2-H12 . Santa Clara Systems carries 1,475 items from Keyence.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
