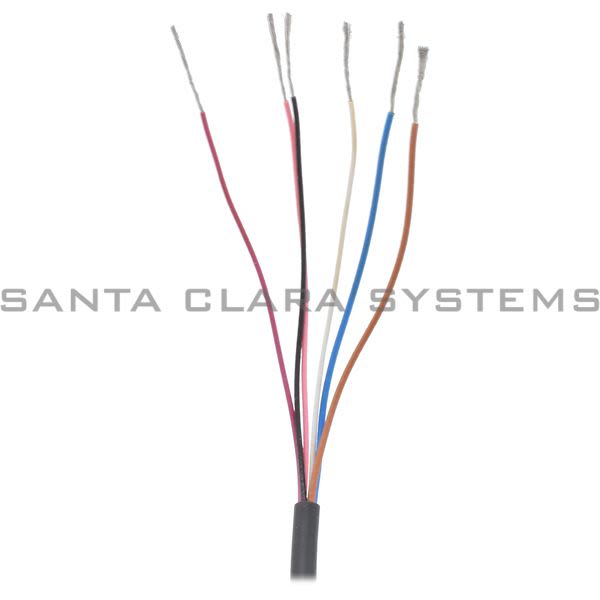

• Keyence GV-21 Laser Sensor Product Image

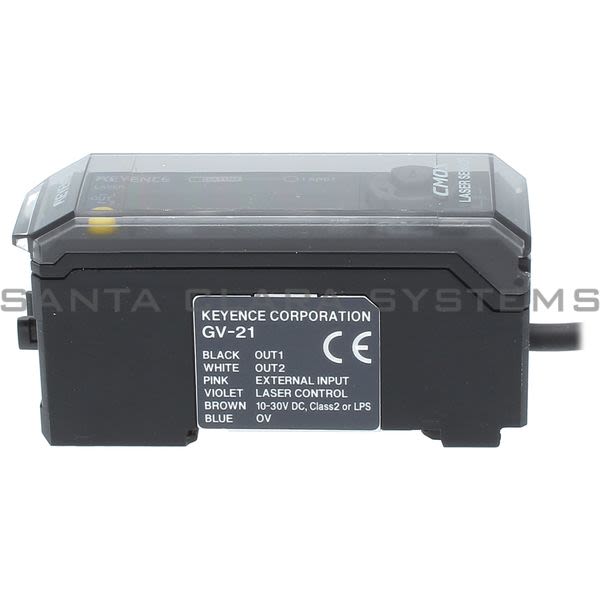

  • Keyence GV-21 Laser Sensor Product Image

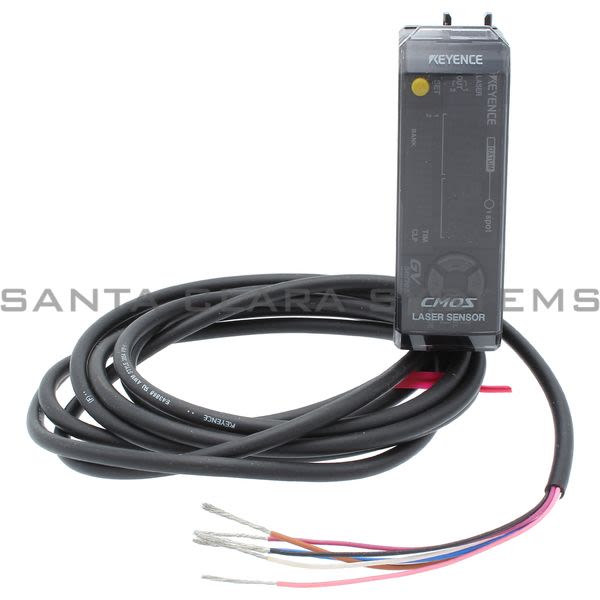

  • Keyence GV-21 Laser Sensor Product Image
  • Keyence GV-21 Laser Sensor Product Image
  • Keyence GV-21 Barcode

GV-21

Product Summary:

  • Type: Amplifier Unit, Main Unit
  • Power consumption - Normal: 2200 mW max. (at 30 V: 73.3 mA max.)
  • Power consumption - Eco-Half: 1700 mW max. (at 30 V: 56.7 mA max.)
  • Power consumption - Eco-All: 1600 mW max. (at 30 V: 53.3 mA max.)
  • Output: NPN
Get a Quote
           or
  • Description: Laser Sensor
  • Response time: 1.5/3/10/20/50 ms
  • Rating - Power voltage: 10 to 30 VDC, Ripple (P-P): 10% max, Class 2*1
  • Environmental resistance - Operating temperature range: -10 to 55C 14 to 131F, No freezing
  • Environmental resistance - Operating ambient humidity: 35 to 85% RH (No condensation)
  • Environmental resistance - Vibration: 10 to 55 Hz, 1.5 mm 0.06", double amplitude in the X, Y, and Z directions, 2 hours respectively
  • Material: Housing material, display cover: Polycarbonate, Key Top: Polyacetal, Cable: PVC
  • Weight: Approx 110 g
  • Footnotes: *1 If expansion units are added, supply voltage must be 11 to 30 VDC.
  • Type: Amplifier Unit, Main Unit
  • Power consumption - Normal: 2200 mW max. (at 30 V: 73.3 mA max.)
  • Power consumption - Eco-Half: 1700 mW max. (at 30 V: 56.7 mA max.)
  • Power consumption - Eco-All: 1600 mW max. (at 30 V: 53.3 mA max.)
  • Display indicator: Dual 7-segment display (Current Value: 3-digit red LED indicator, Preset Value: 3-digit green LED indicator) + 2-color 13-level Bar LED (Red, Green)
  • Operation status indicators: Control output: Red LED x 2 Channel display: Green LED x 2 Laser radiation emission indicator Green LED Other: Green LED x 2/Red LED x 3
  • Output: NPN
  • Control output: NPN open collector x 2ch, 40 V DC max./Max. 100 mA, residual voltage 1 V max.
  • Control input: Emission stop input, Bank switching input, Shift input, Timing input, Each input response time: 20 ms
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on GV-21 . Santa Clara Systems carries 1,309 items from Keyence.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
