HR-100

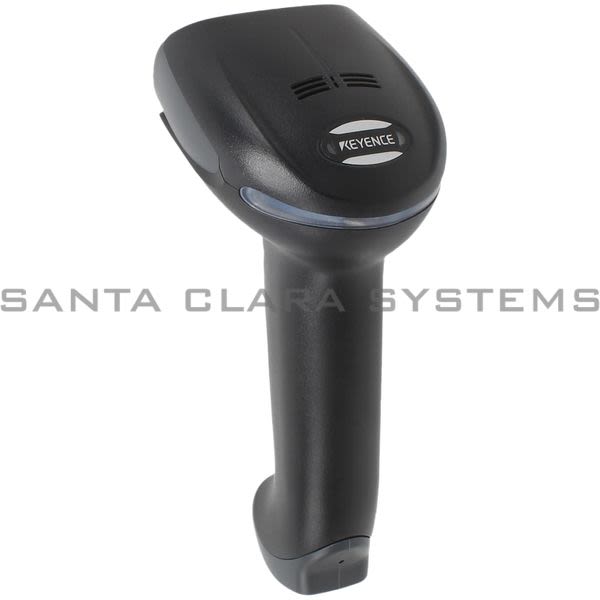

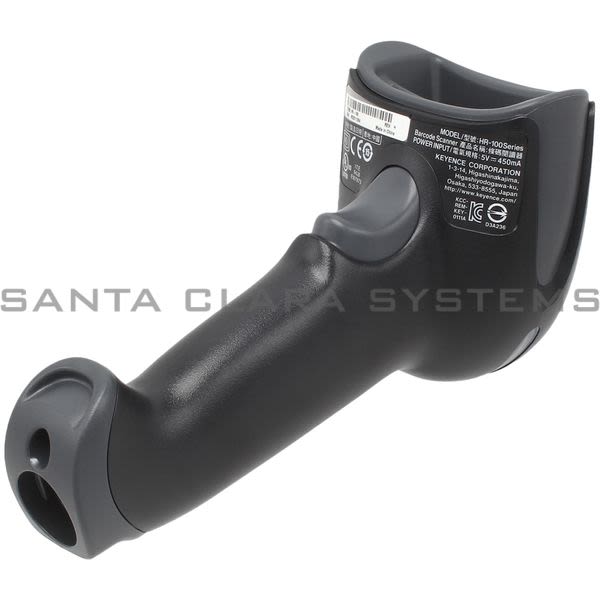

Keyence - Handheld Code Reader

Current response time:

By 5AM PT on Wednesday

Emergency?

Description: Handheld Code Reader
Weight: Approx. 150 g
Type: Standard
Light source: Red LED
Operating time: -
Interface: Wired
Wireless - Standard: -
Reading specifications - Supported symbol - 2D: QR, MicroQR, DataMatrix (ECC200), PDF417, MicroPDF417, GS1 Composite (CC-A/CC-B/CC-C), MaxiCode, AztecCode
Reading specifications - Supported symbol - Barcode: CODE39, ITF, 2of5 (Industrial 2of5), NW-7 (Codabar), CODE128, GS1-128, GS1 DataBar, CODE93, JAN/EAN/UPC, MSI, Postal, CODE11, 2of5
Reading specifications - Minimum resolution - 2D: 0.169 mm 0.007"

Reading specifications - Minimum resolution - Barcode: 0.127 mm 0.005"
Reading specifications - Reading distance - 2D: 15 to 180 mm 0.59" to 7.09" (Cell size = 0.254 mm 0.01")
Reading specifications - Reading distance - Barcode: 25 to 115 mm 0.98" to 4.53" (Narrow bar width = 0.127 mm 0.005")
Rating - Power voltage: 4.0 to 5.5 VDC
Rating - Current consumption.: Reading: 450 mA, Standby: 90 mA
Environmental resistance - Ambient temperature: 0 to 50°C 32 to 122°F
Environmental resistance - Relative humidity: 5 to 95% RH (no condensation)
Environmental resistance - Ambient light: Sunlight: 10000 lux, Fluorescent lamp: 2000 lux
Environmental resistance - Drop impact resistance: 1.8 m 5.91' 50 times on concrete
Dimensions: 161 × 86 (head) × 71 mm (head) 6.34" × 3.39" × 2.80"

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on HR-100 . Santa Clara Systems carries 2,110 items from Keyence.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
