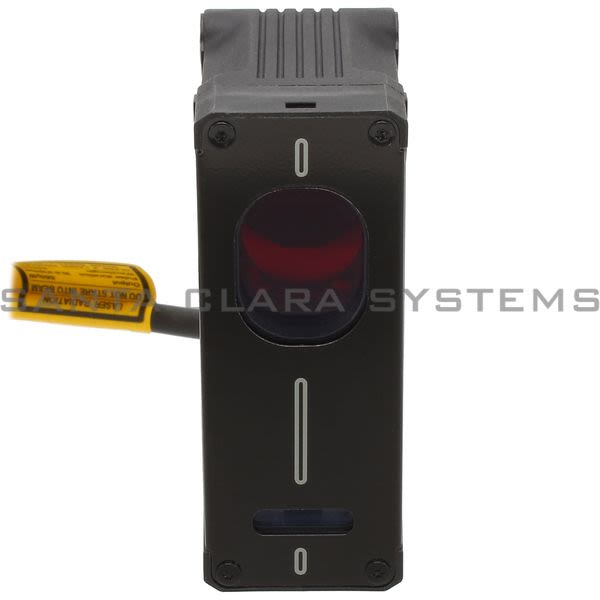

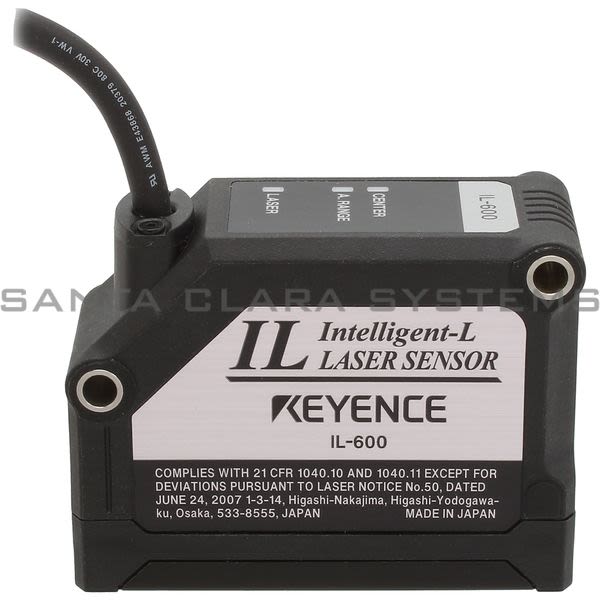

IL-600

Keyence - Sensor Head

Current response time:

By 5AM PT on Friday

Emergency?

Description: Sensor Head
Weight: Approx. 135 g
Footnotes: *1 The laser classification for FDA (CDRH) is implemented based on IEC 60825-1 in accordance with the requirements of Laser Notice No.50. *2 Value when measuring the KEYENCE standard target (white diffuse object). *3 F.S. of each model is as follows. IL-030: 5 mm 0.20" IL-065: 10 mm 0.39" IL-100: 20 mm 0.79" IL-300: 140 mm 5.51" IL-600: 400 mm 15.75" IL-2000: +1000 to -1500 mm 39.37" to -59.05" *4 Value when measuring the KEYENCE standard target (white diffuse object) at the reference distance, sampling rate: 1 ms, and average number of times: 128. For the IL-300/IL-600, the sampling rate is 2 ms. For the IL-2000, the sampling rate is set to 5ms. *5 F.S. of each model is as follows. IL-030: 5 mm 0.20" IL-065: 10 mm 0.39" IL-100: 20 mm 0.79" IL-300: 140 mm 5.51" IL-600: 400 mm 15.75" *6 Value when the sampling rate is set to 2 ms or 5 ms.
Material: Housing material: PBT, Metal parts: SUS304, Packing: NBR, Lens cover: Glass, Cable: PVC
Reference distance: 600 mm 23.62"
Measurement range: 200 to 1000 mm 7.87" to 39.37"
Light source - Type: Red semiconductor laser, wavelength: 655 nm (visible light)
Light source - Laser class: Class 2 (FDA (CDRH) Part1040.10)*1 Class 2 (IEC 60825-1)
Light source - Output: 560 ?W
Spot diameter (at standard distance): Approx. 1.6 mm 0.06"
Linearity: 0.25% of F.S. (200 to 600 mm 7.84" to 23.62")*2*3 0.5% of F.S. (200 to 1000 mm 7.84" to 39.37")*2*3

Repeatability: 50 m 1.97 Mil*4
Sampling rate: 0.33/1/2/5 ms (4 levels available)

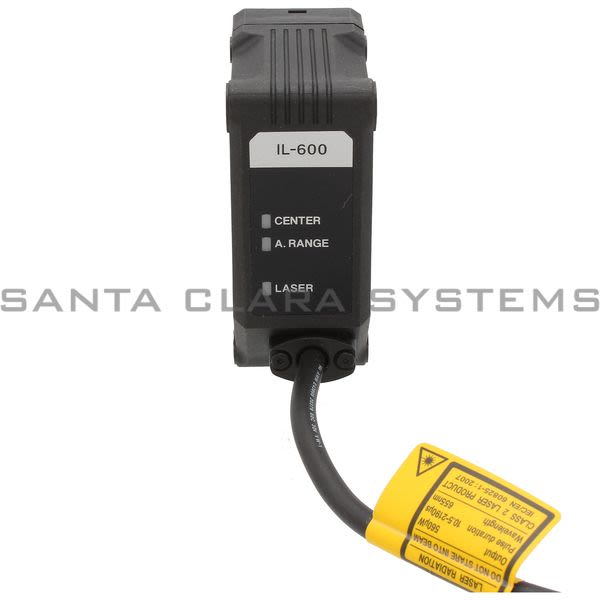

Operation status indicators: Laser emission warning indicator: Green LED, Analog range indicator: Orange LED, Reference distance indicator: Red/Green LED
Temperature characteristics: 0.08% of F.S./C*5
Environmental resistance - Enclosure rating: IP67
Environmental resistance - Ambient light: Incandescent lamp: 5000 lux*6
Environmental resistance - Ambient temperature: -10 to +50C 14 to 122F (No condensation or freezing)
Environmental resistance - Relative humidity: 35 to 85% RH (No condensation)
Environmental resistance - Vibration: 10 to 55 Hz Double amplitude 1.5 mm 0.06" XYZ each axis: 2 hours
Environmental resistance - Pollution degree: 3
