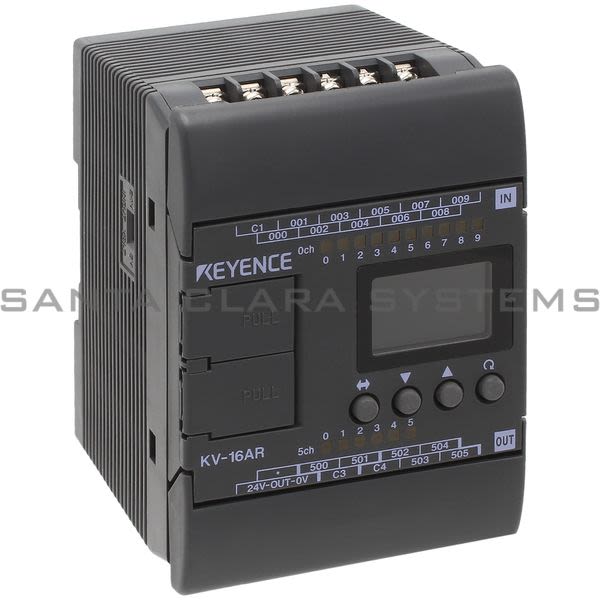

• Keyence KV-16AR Relay Product Image

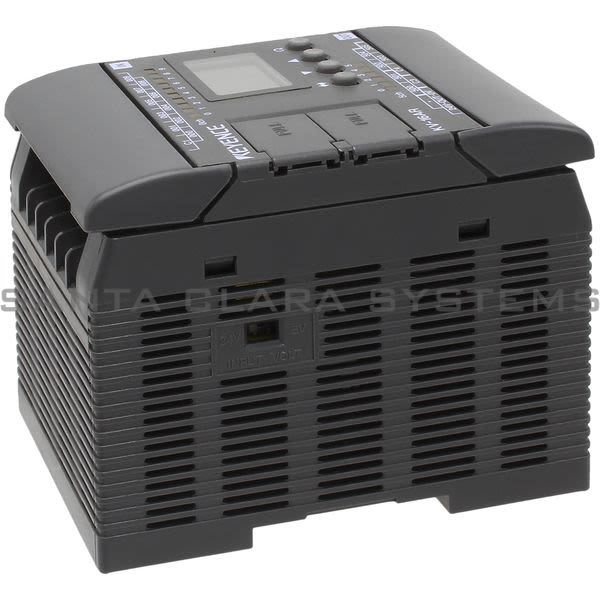

  • Keyence KV-16AR Relay Product Image

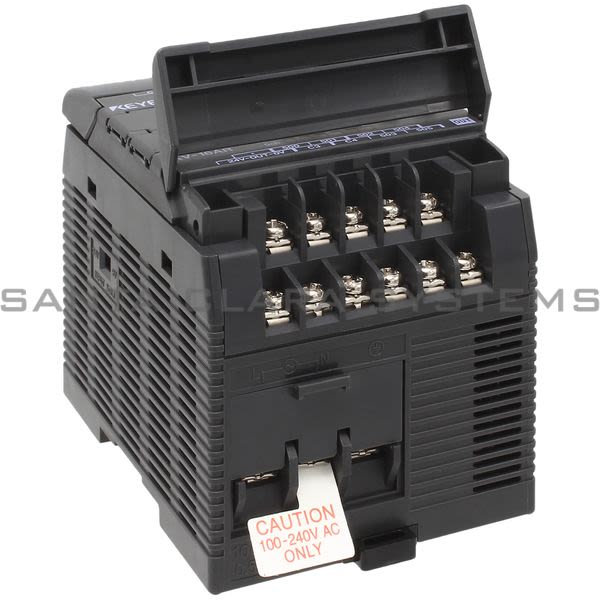

  • Keyence KV-16AR Relay Product Image

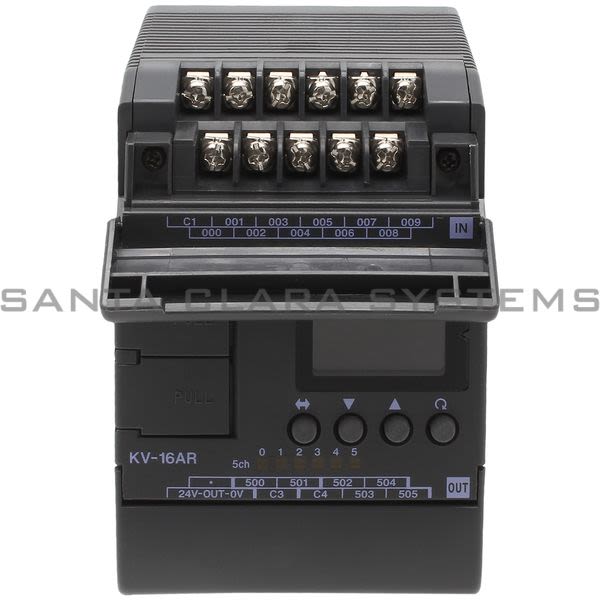

  • Keyence KV-16AR Relay Product Image
  • Keyence KV-16AR Barcode

KV-16AR

Get a Quote

Current response time:

By 5AM PT on Thursday
  • Description: Relay
  • Footnotes: *1 Conforms to JIS B 3502, IEC61131-2 Number of sweeps: 10 times respectively in the X, Y, and Z directions, 80 minutes
  • Type: AC power supply type base unit
  • Input power supply voltage - Base unit: 100 to 240 VAC ( 10%)
  • Allowable instantaneous outage time: Less than 40 ms
  • General specifications - Internal current consumption (24 VDC conversion value) - Base unit: 120mA or less
  • General specifications - Internal current consumption (24 VDC conversion value) - Expansion unit: KV-E4X 20mA or less KV-E8X 25mA or less KV-E16X 35mA or less KV-E4T 25mA or lessKV-E8T (P) 40mA or less KV-E16T 60mA or less KV-E4R 40mA or less KV-E8R 70mA or lessKV-E16TP 70mA or less KV-E4XT (P) 30mA or less KV-E4XR 45mA or less KV-E16R 110mA or less
  • General specifications - Internal current consumption (24 VDC conversion value) - Other: Operator panel KV-D20: 60 mA or less KL link adapter KL-N10V: 35 mA or less Programming console KZ-P3: 65 mA or less
  • General specifications - Environmental resistance - Operating temperature range: 0 to 50C 32 to 122F (no freezing), 0 to 45C 32 to 113F (KZ-P3)
  • General specifications - Environmental resistance - Operating ambient humidity: 35 to 85% RH (no condensation)
  • General specifications - Environmental resistance - Ambient temperature for storage: -20 to 70C -4 to 158F (no freezing)
  • General specifications - Environmental resistance - Withstand voltage: 1,500 VAC for 1 minute (between the power supply terminal and the I/O terminals and between all the external terminals and the case)
  • General specifications - Environmental resistance - Noise resistance: 1,500 Vp-p or more, pulse width: 1 s, 50 ns (by way of a noise simulator), conforms to EN standards (EN 61000-4-2/-3/-4/-6)
  • General specifications - Environmental resistance - Shock resistance: Conforms to JIS C 0041, 150 m/s2 (15 G), operating time: 11 ms, 2 times in each of the 3 axial directions
  • General specifications - Weight - Base unit: Approx 300g
  • General specifications - Insulation resistance: 50 M? or more (tested with a 500 VDC megger, between the power supply terminal and the input terminal and between all the external terminals and the case)
  • General specifications - Environmental resistance - Ambient operating atmosphere: Minimal amount of dust and corrosive gas present
  • General specifications - Weight - Expansion unit: KV-E4X: Approx 80 g, KV-E8X: Approx 100 g, KV-E16X: Approx 130 g, KV-E4T: Approx 80 g, KV-E8T (P): Approx 100 g, KV-E16T (P): Approx 130 g, KV-E4R: Approx 100 g, KV-E8R: Approx 130 g, KV-E16R: Approx 190 g, KV-E4XT (P): Approx 100 g, KV-E4XR: Approx 120 g
  • General specifications - Weight - Other: KZ-P3 Approx 230g KV-D20 Approx 160g KL-N10V Approx 80g
  • General specifications - Vibration resistance - Intermittent vibration - Frequency: 10 to 57 Hz: Amplitude: 0.075 mm*1
  • General specifications - Vibration resistance - Intermittent vibration - Frequency: 57 to 150 Hz: Acceleration: 9.8 m/s2*1
  • General specifications - Vibration resistance - Continuous vibration - Frequency: 10 to 57 Hz: Amplitude: 0.035 mm*1
  • General specifications - Vibration resistance - Continuous vibration - Frequency: 57 to 150 Hz: Acceleration: 4.9 m/s2*1
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on KV-16AR . Santa Clara Systems carries 2,096 items from Keyence.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
