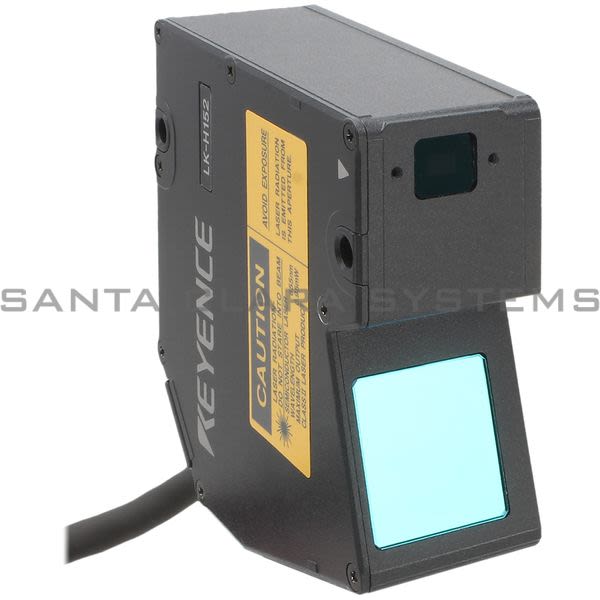

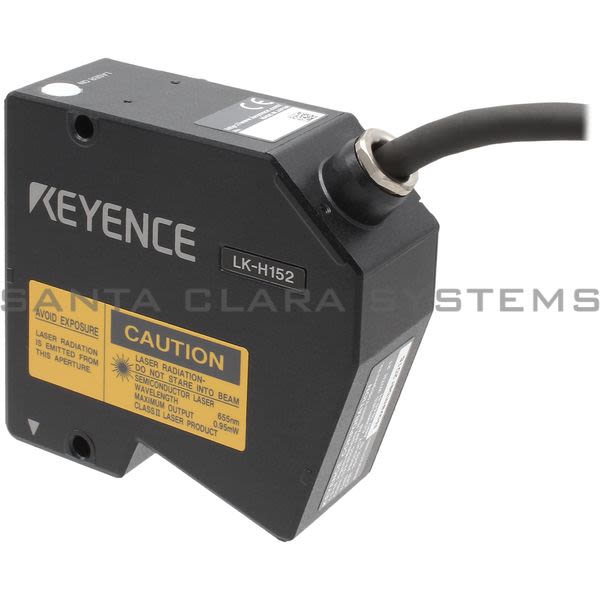

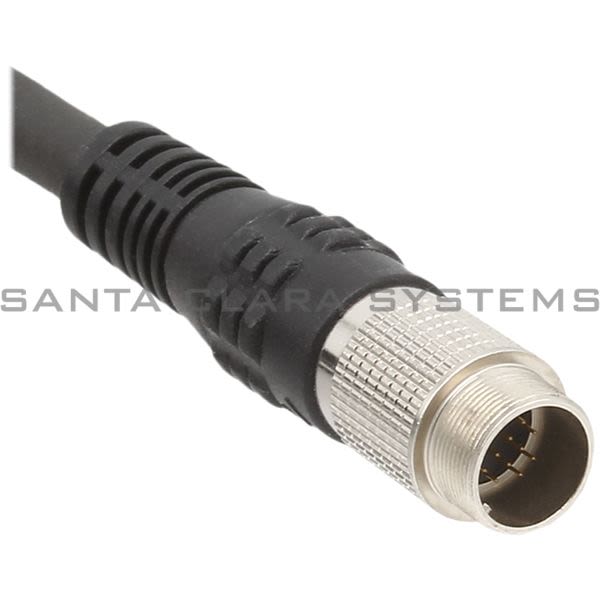

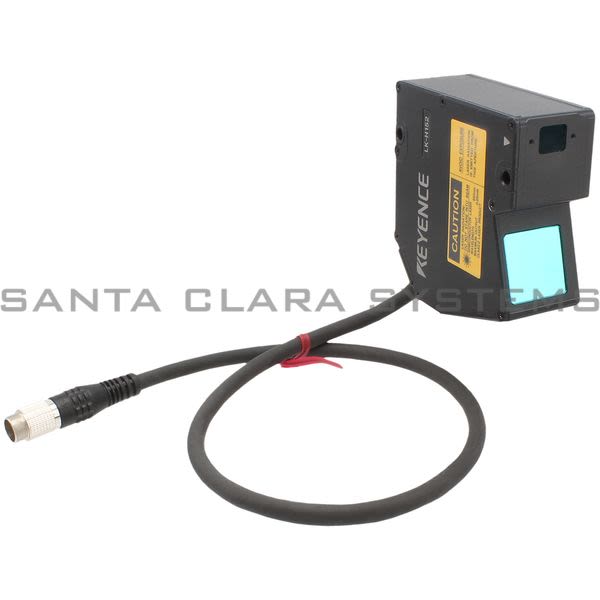

LK-H152

Keyence - Sensor Head

Current response time:

4 Minutes 45 Seconds

Description: Sensor Head
Weight: Approx 300 g
Footnotes: *1 Use one of the following dark filters when measuring a transparent or mirror surface object: LK-H082/LK-H087: LK-F3, LK-H152/LK-H157: LK-F2 *2 Measurement range when the sampling cycle is 20 s or more. *3 This value is obtained when the KEYENCE standard target (White diffuse workpiece or workpiece with a metal mirror surface only for the LK-H008/LK-H008W) is measured in the normal measurement mode. *4 This value is obtained when the KEYENCE standard target (White diffuse workpiece or workpiece with a metal mirror surface only for the LK-H008/LK-H008W) is measured at the reference distance with the number of averaging measurements set to 16384. The value in parentheses is a typical example of a measurement with the number of averaging measurements set to 65536 and the sampling cycle to 200 ?s. *5 When the ambient temperature rises to 40C 104F or more, mount this on a metal plate before use.
Material: Aluminum die-cast
Mounting mode: Diffuse reflective / Specular reflective*1
Reference distance: Diffuse reflective: 150 mm 5.91" Specular reflective: 147.5 mm 5.81"
Measuring range: Diffuse reflective: 40 mm 1.57" Specular reflective: -39.5 mm to +24.4 mm -1.56" to +0.96"*2
Light source - Type: Red semiconductor laser
Light source - Wavelength: 655nm
Light source - Laser class (JIS C6802): Class 2
Light source - Output: 0.95mW

Spot diameter (at standard distance): 120 ?m
Linearity: 0.02% of F.S. (F.S.= 80 mm 3.15")*3
Repeatability: 0.25 ?m*4
Sampling cycle: 2.55/5/10/20/50/100/200/500/1000 ?s (9 steps selectable)
Temperature characteristics: 0.01% of F.S. (F.S.= 80 mm 3.15")
Environmental resistance - Enclosure rating: IP67
Environmental resistance - Operating ambient luminance: Incandescent lamp or fluorescent lamp: 5000 lux max.
Environmental resistance - Operating temperature range: 0 to +50C 32 to 122?F *5
Environmental resistance - Operating ambient humidity: 35 to 85% RH (No condensation)
Environmental resistance - Vibration: 10 to 55 Hz, 1.5 mm 0.06" double amplitude for 2 hours in each of the X, Y, and Z directions
