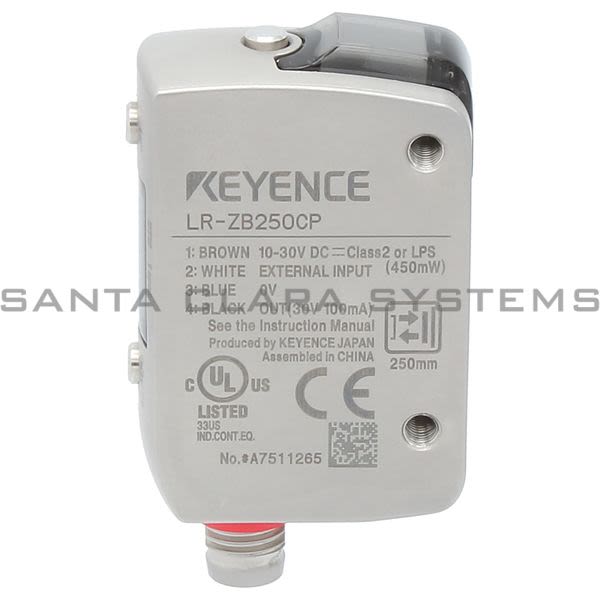

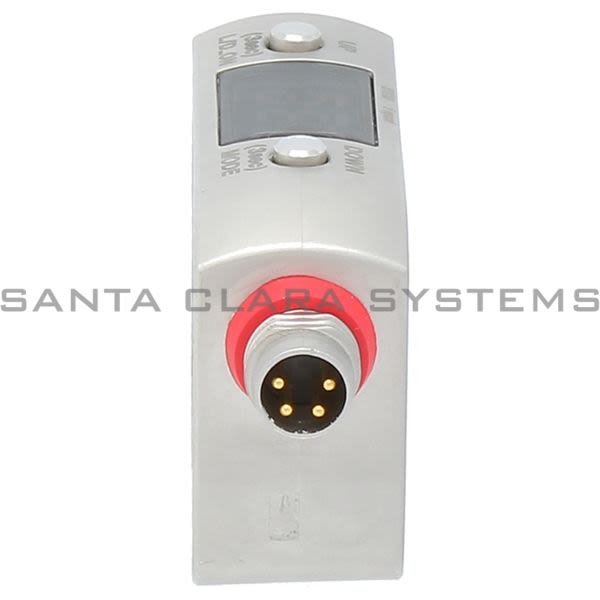

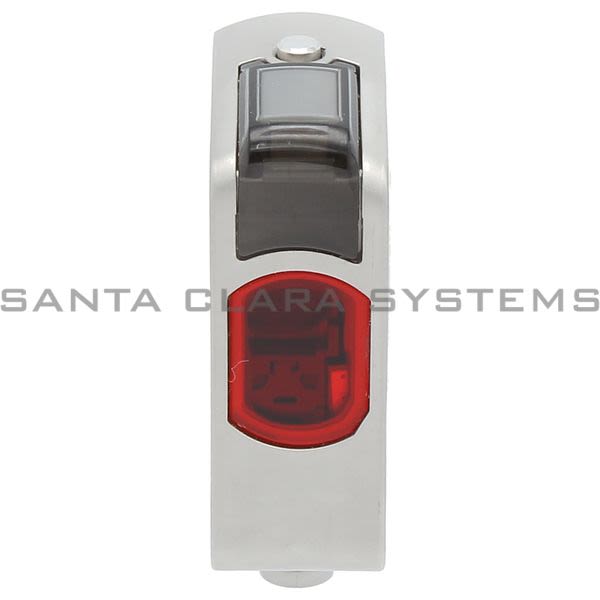

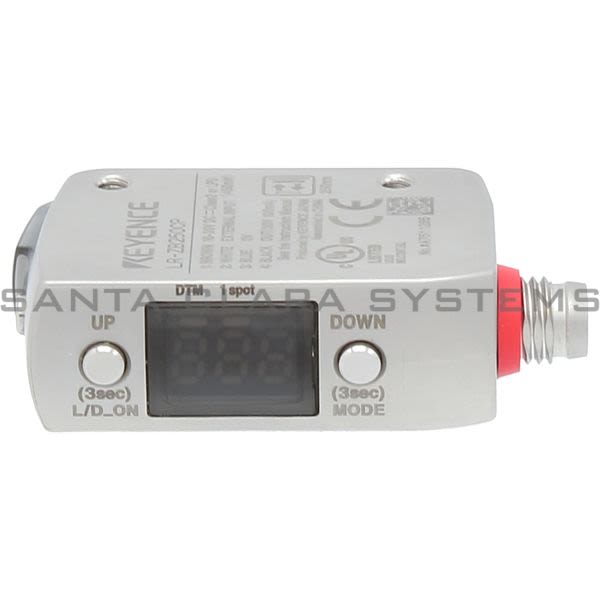

LR-ZB250CP

Keyence - Sensor

Current response time:

By 5AM PT on Wednesday

Emergency?

Description: Sensor
Weight: Approx. 55 g
Footnotes: *1 Display readings can be used as a guide for the detecting distance. When the setting value is tuned, the readout shifts. When the value exceeds "-99", "-FF" is displayed. *2 The laser classification for FDA (CDRH) is implemented based on IEC60825-1 in accordance with the requirements of Laser Notice No.50. *3 Have passed resistance tests with cleaning agents from multiple manufactures. *4 When the response time is 10 ms
Type: Distance based laser sensor
Response time: 1.5 ms / 10 ms / 50 ms selectable
Output: PNP
Material: Case: SUS316L, Display: PES, Lens cover: PMMA with scratch-resistant coating, Packing/Connector ring: FKM
Appearance: Rectangular
Cable connection: M8 connector, 4-pin
Detectable distance: 35 to 250 mm 1.38" to 9.84" (215 to 0)*1
Standard detectable deviation: 35 to 180 mm 1.38" to 7.09": 9 mm 0.35" 180 to 250 mm 7.09" to 9.84": 25 mm 0.98"
Display resolution: 1 to 3 (1 to 3 mm 0.04" to 0.12")
Spot size: Approx. 2.4 1.2 mm 0.09" 0.05" at 250 mm 9.84"
Light source - Type: Red laser (660 nm)
Light source - Laser class: Class 1 laser product (IEC60825-1, FDA (CDRH) Part1040.10*2)
Function - Indicator: 3-digit 7-segment display (red), output indicator (yellow), DATUM indicator (orange), 1 spot indicator (green)
Function - Timer: OFF/ON delay/OFF delay/One-shot

Specifications - Power voltage: 10 to 30 VDC, including 10% ripple (P-P), Class 2 or LPS
Specifications - Power consumption: 450 mW or less (18 mA or less at 24 V, 34 mA or less at 12 V)
Specifications - Control output: PNP Open collector, Applied voltage 30 VDC or less, Control current 100 mA or less, Residual voltage 1.2 V or less at 10 mA or less, 2 V or less at 10 to 100 mA
Specifications - Protection circuit: Protection against reverse power connection, output overcurrent, output surge, reverse output connection
Specifications - Output operation: Light-ON / Dark-ON selectable
Specifications - External input: Input time calibration: 35 ms or more ON, 35 ms or more OFF Laser emission stop: 2 ms or more ON, 20 ms or more OFF Short-circuit current NPN: 1 mA or less/PNP: 2 mA or less
Environmental resistance - Enclosure rating: IP68 (IEC60529), IP69K (DIN40050-9), NEMA 4X, 6P, 13 (NEMA250), ECOLAB*3, Diversey*3
Environmental resistance - Ambient light: Incandescent lamp: 2000 lux or less Sunlight: 4000 lux or less*4
Environmental resistance - Ambient temperature: -10 to +50C 14 to 122F (No freezing)
Environmental resistance - Storage temperature: -25 to +75C -13 to 167F (No freezing)
Environmental resistance - Ambient humidity: 35 to 85%RH (No condensation)
Environmental resistance - Shock resistance: 1000 m/s2 in X, Y, Z axis directions respectively 6 times
Environmental resistance - Vibration resistance: 10 to 55 Hz Double amplitude 1.5 mm 0.06" in the X, Y, Z axis directions respectively, 2 hours
Environmental resistance - Insulation resistance: 20 M? or more (500 VDC)
Environmental resistance - Withstand voltage: 1000 VAC 50/60 Hz 1 min
Accompanying items: Instruction Manual, Certification/Identification label (FDA)
