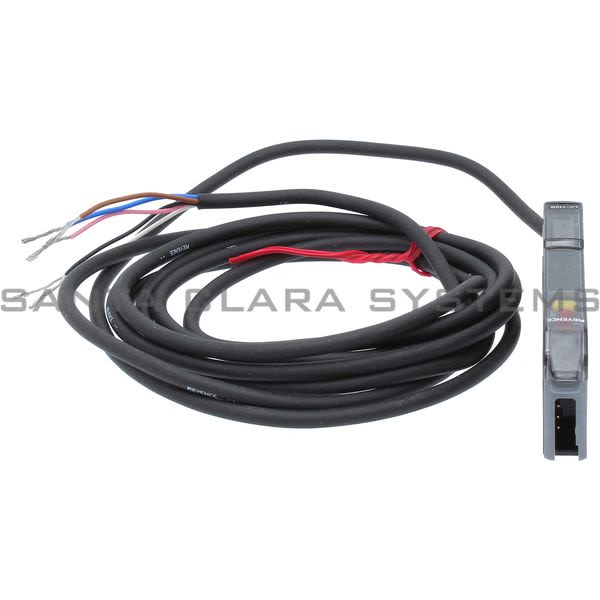

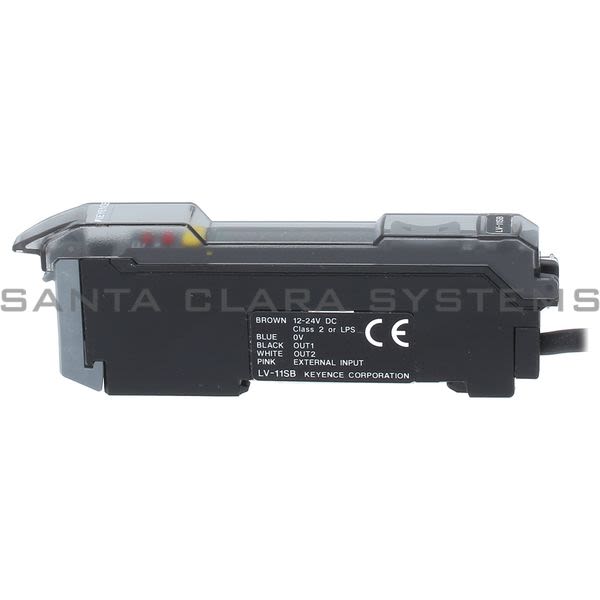

- Description: Laser Sensor

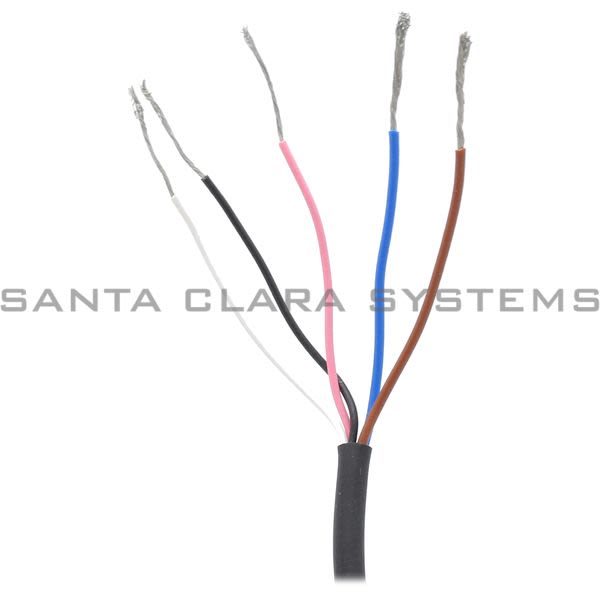

- Weight: Approx 80 g (including 2 m 6.6' cable)
- Footnotes: *1 LV-S62 and LV-S63 can ONLY be used with amplifiers ending with B or BP. *2 Numbers for the LV-S31 are four in standard mode and two in high-speed mode. *3 To connect several units they must be mounted on a METAL DIN rail. Ensure that the output current is 20 mA max. With several units connected, the allowable ambient temperature range varies as follows: 1 to 2 units connected: -10 to +55C 14 to 131F 3 to 10 units connected: -10 to +50C 14 to 122F 11 to 16 units connected: -10 to +45C 14 to 113F *4 When more than 8 units connected, be sure to use supply voltage 24 VDC Ripple (P-P) 10% max. *5 To connect several units they must be mounted on a METAL DIN rail. Ensure that the output current is 20 mA max. With several units connected, the allowable ambient temperature range varies as follows: 1 to 2 units connected: -10 to +55C 14 to 131F 3 to 10 units connected: -10 to +50C 14 to 122F 11 to 16 units connected: -10 to +45C 14 to 113F
- Type: Main unit
- Output: NPN
- Control output: NPN open-collector x 2 ch 40 VDC max. 100 mA max. per output
- Response time - ExceptLV-S31 - ULTRA: 4 ms
- Response time - ExceptLV-S31 - SUPER: 2 ms
- Response time - ExceptLV-S31 - TURBO: 500 ?s
- Response time - ExceptLV-S31 - FINE: 250 ?s
- Response time - ExceptLV-S31 - HSP: 80 ?s
- Response time - LV-S31standard mode: 500 ?s
- Response time - LV-S31standard mode - SPED2: 2 ms
- Response time - LV-S31standard mode - SPED3: 8 ms
- Response time - LV-S31standard mode - SPED4: 32 ms
- Response time - LV-S31High-speed mode: 250 ?s
- Control input: Light emission stop input, external calibration, set value bank selection input, or shift input
- Number of interference prevention units - ULTRA: 4*2
- Number of interference prevention units - SUPER: 4*2
- Number of interference prevention units - TURBO: 2*2
- Number of interference prevention units - FINE: 2*2
- Number of interference prevention units - HSP: 0*2
- Unit expansion: Up to 16 expansion units can be installed (17 units including the main unit)*3
- Rating - Power voltage: 12 to 24 VDC ripple (P-P) 10% max. Class 2*4
- Rating - Power consumption - Normal: 1.7 W max. (70 mA max. for 24 V)
- Environmental resistance - Ambient temperature: -10 to +55C 14 to 131F, No freezing*5
- Environmental resistance - Vibration: 10 to 55 Hz, 1.5 mm 0.06" double amplitude: 2 hours in each of X, Y, and Z axis directions
- Material - Main unit: Main body, cover: Polycarbonate
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on LV-11SB . Santa Clara Systems carries 2,098 items from Keyence.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
