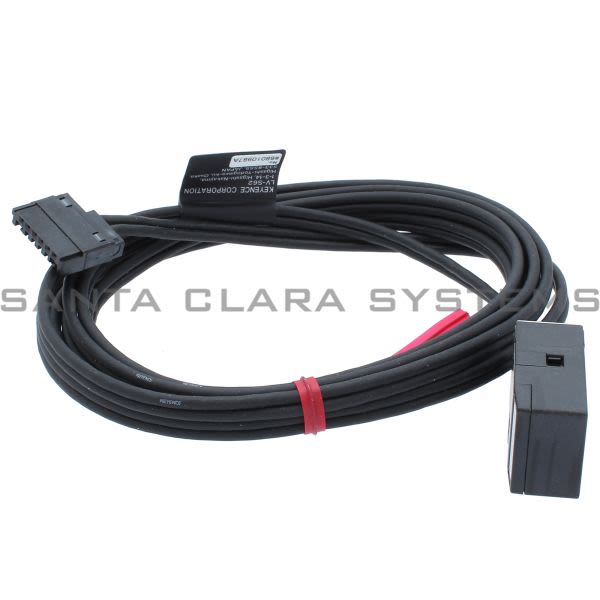

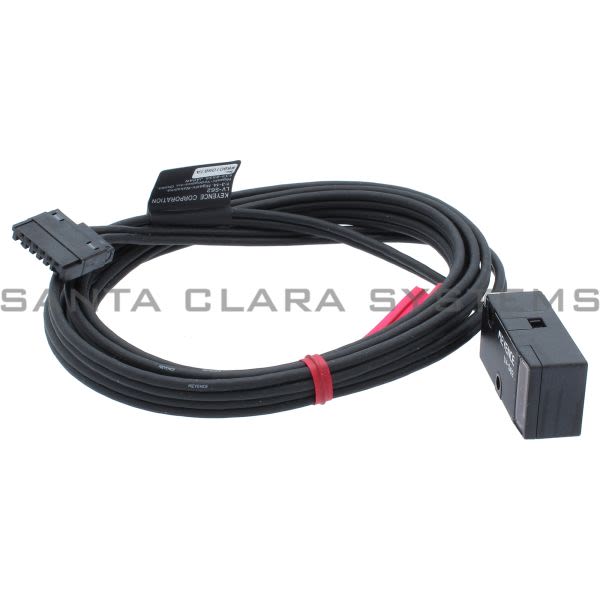

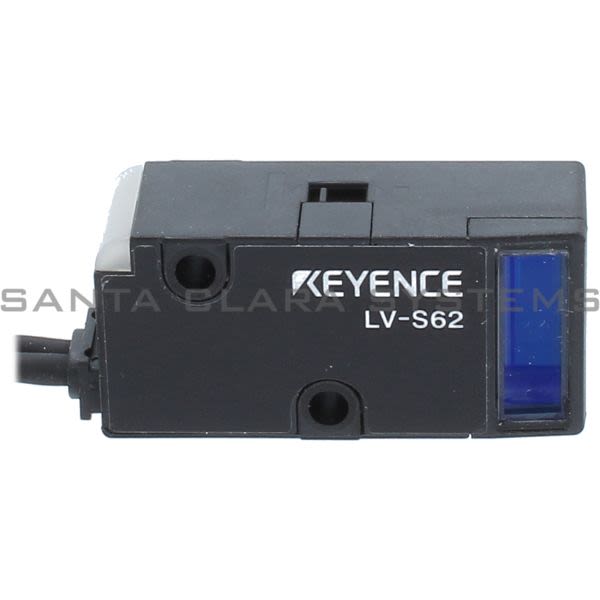

LV-S62

Keyence - Sensor Head

Current response time:

19 Minutes 23 Seconds

Description: Sensor Head
Weight: Approx. 65 g
Footnotes: *1 Numbers enclosed in parentheses are the detecting distance for small beam spot.
Type: Parallel light area
Light source: Visible red semiconductor laser, Wavelength: 660 nm
FDA (CDRH) Part 1040.10: Class 1 Laser Product
IEC 60825-1: Class 1 Laser Product
Detecting distance - MEGA: 12 m (6 m) 39.4' (19.7')*1
Detecting distance - ULTRA: 10 m (5 m) 32.8' (16.4')*1

Detecting distance - SUPER: 8 m (3.5 m) 26.2' (11.5')*1
Detecting distance - TURBO: 5 m (2 m) 16.4' (6.6')*1
Detecting distance - FINE: 2.5 m (0.7 m) 8.2' (2.3')*1
Detecting distance - HSP: -
Environmental resistance - Ambient temperature: -10 to +50C 14 to 122F (No freezing)
Material - Case: Glass reinforced plastic
Material - Lens cover: Acrylic
Material - Reflective mirror: Polycarbonate, acrylic
