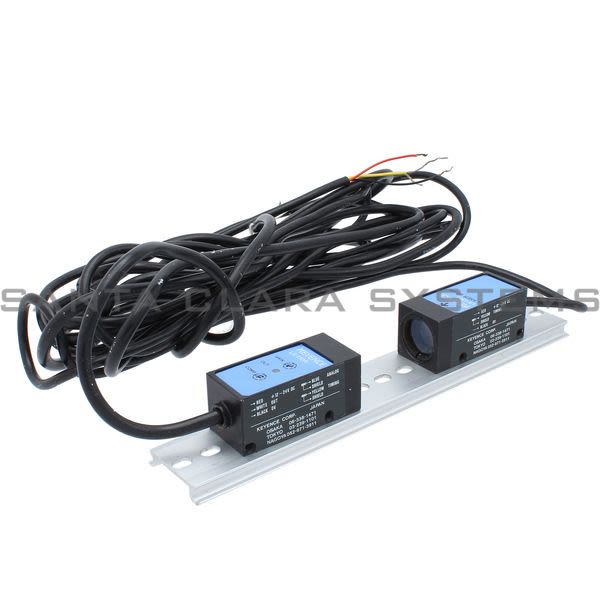

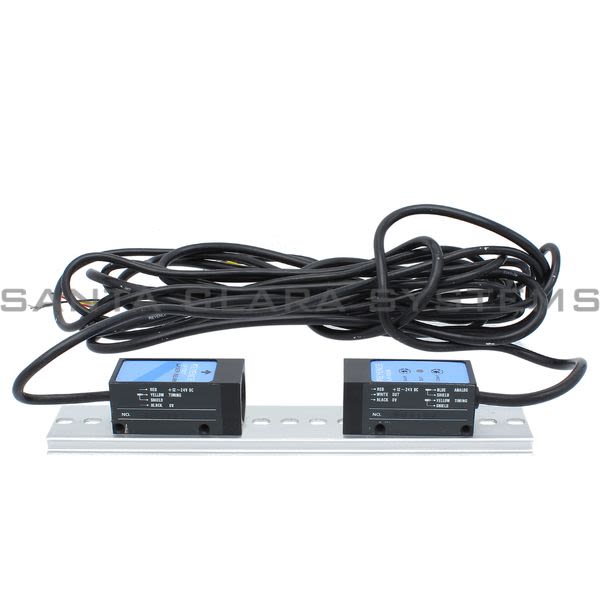

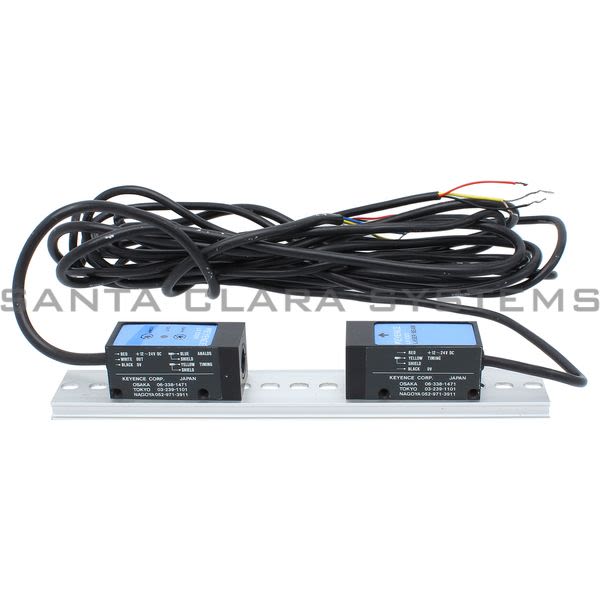

- Description: Photo Electric Set | LX-130R and LX-130T
- Response time: 0.5 ms (PT-A170)
- Light source: Semiconductor laser (wavelength: 780 nm, 3 mW maximum, Class 1M)
- Detecting area: 10 mm
- Setting distance: 0 to 300 mm
- Detection capability: Opaque material with a diameter of 0.1 mm
- Analogue output - Output voltage: 1 - 5 V
- Analogue output - Response frequency: 1 kHz
- Analogue output - Temperature characteristics: 0.1% of F.S./*C
- Control output: Maximum NPN open-collector output: 100 mA (40 V or less)
- Repetition accuracy: 0.01 mm
- Rating - Power voltage: 12 to 24 VDC +10%, ripple (P-P): 10% or less
- Rating - Current consumption: 60 mA or less (total for the transmitter and receiver)
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on LX-130 . Santa Clara Systems carries 2,098 items from Keyence.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
