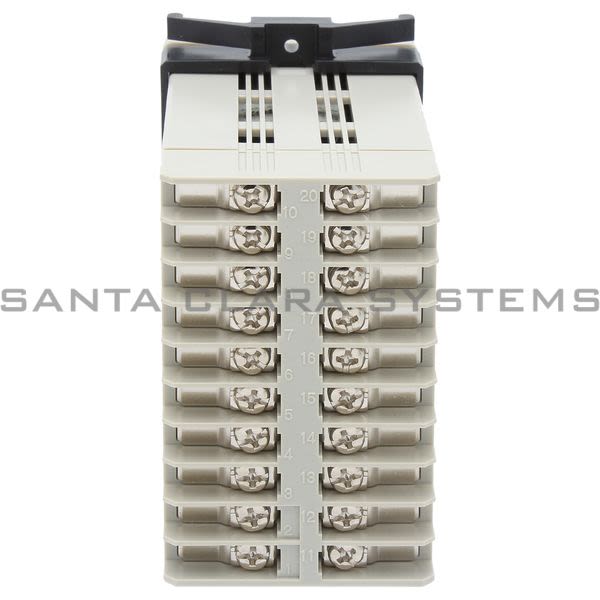

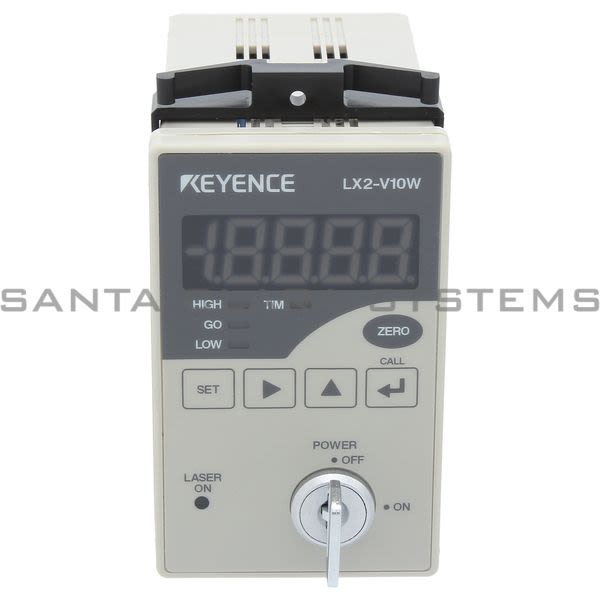

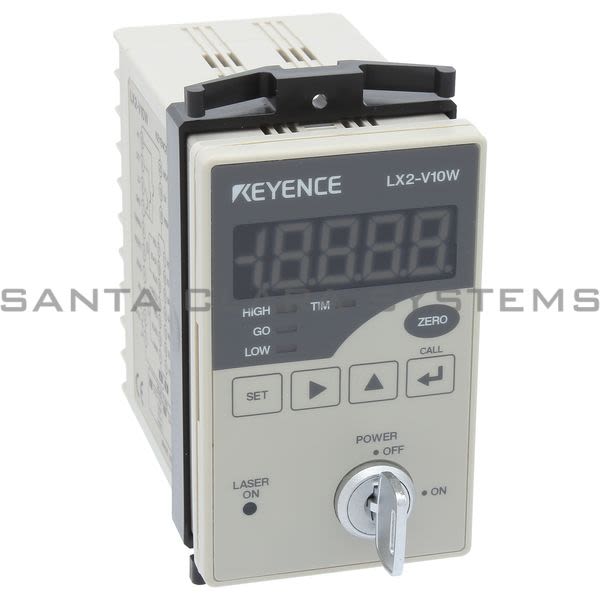

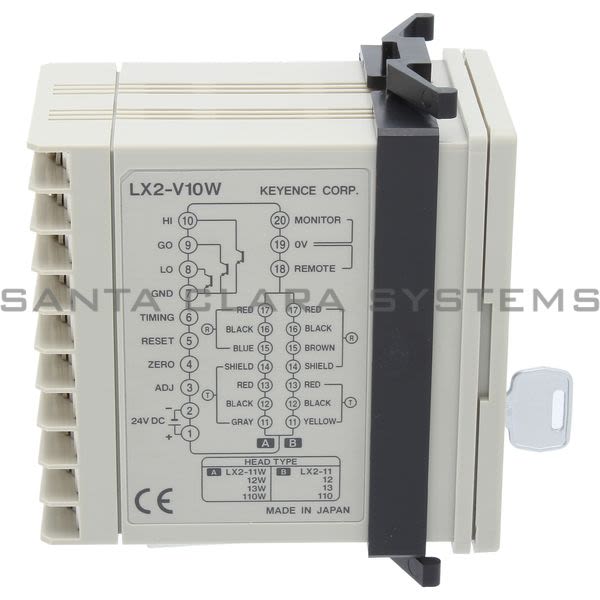

LX2-V10W

Keyence - Photoelectric Amplifier Thrubeam Laser

Product Summary:

Weight: Approx 220 g
Display range: -19,999 to +19,999
Sampling rate: 12,500 /sec
Control input - Laser remote: NPN open collector or non-voltage contact signal
Output - Control output: NPN open collector: 100 mA max. (40 V max.)

Current response time:

By 5AM PT on Wednesday

Emergency?

Description: Photoelectric Amplifier Thrubeam Laser
Weight: Approx 220 g
Footnotes: *1 Data obtained when the number of measurements to average is set to 1 *2 Typical data obtained when the sensor head is connected. The temperature characteristic obtained when connecting the LX2- 110 (W) is 0.2% of F.S./°C.
Display range: -19,999 to +19,999
Sampling rate: 12,500 /sec
Control input - Laser remote: NPN open collector or non-voltage contact signal
Output - Control output: NPN open collector: 100 mA max. (40 V max.)
Output - Response time: 0.16 ms*1

Analog output - Output voltage: 0 to 5 V
Analog output - Impedance: 100 ?
Temperature characteristics: 0.1 % of F.S./ °C*2
Major functions: Reference light quantity entry, Auto Gain adjustment, auto scaling, manual scaling, auto-zero, offset, data processing (10 modes), etc.
Rating - Power voltage: 24 VDC ± 10%
Rating - Current consumption.: 190 mA max.
Environmental resistance - Operating temperature range: 0 to +50°C 32 to 122°F (No condensation)
Environmental resistance - Operating ambient humidity: 35 to 85% RH (No condensation)

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on LX2-V10W . Santa Clara Systems carries 2,147 items from Keyence.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
