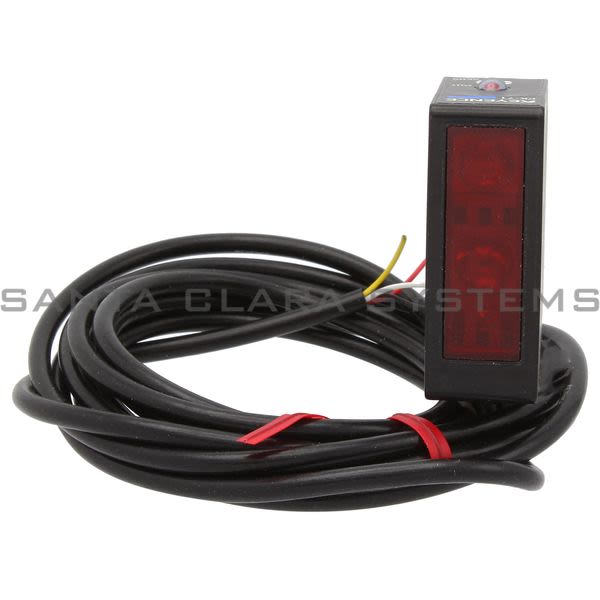

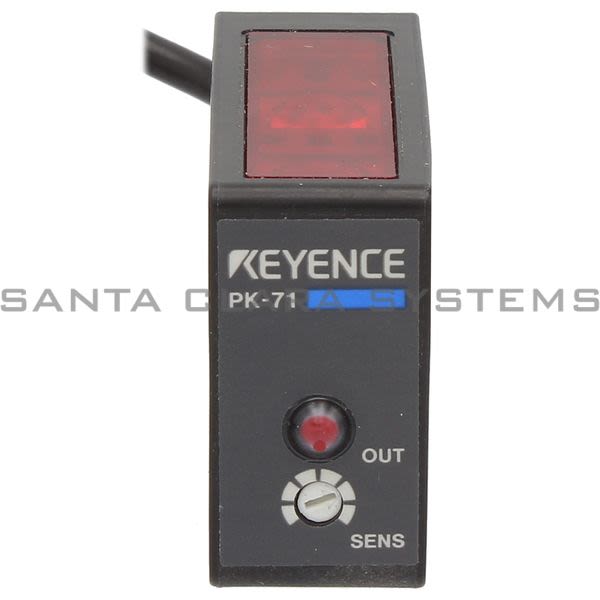

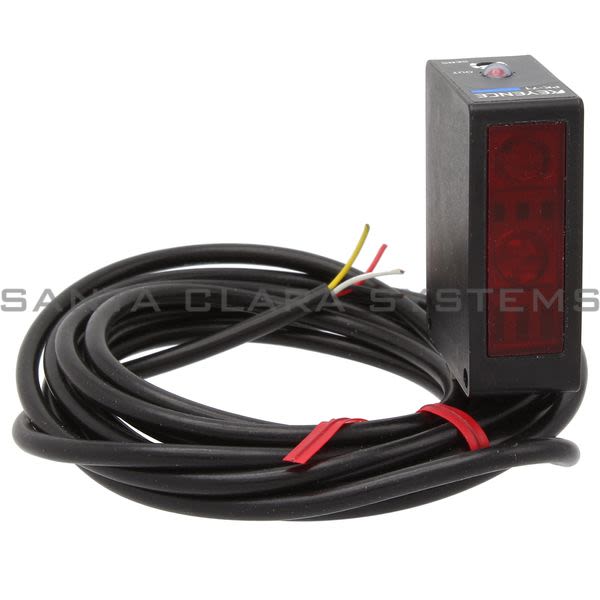

- Description: Photoelectric Sensor
- Weight: Approx 75 g (including 2-m 6.6' cable)
- Type: Mid-range
- Response time: 2 ms max.
- Light source: Red LED
- Sensitivity adjustment: 1-turn trimmer (240°C 464°F)
- Detecting area: 40 to 100 mm 1.57" to 3.93" (10 × 10 cm 3.93" × 3.93" white mat paper)
- Spot diameter: 8 mm or less
- Detectable object: Transparent and opaque
- Hysteresis (of detecting distance): 4% (at 40 mm) to 10% (at 100 mm) of the detecting distance
- Operation mode: LIGHT-ON/DARK-ON (switch-selectable)
- Indicator lamp: Output: red LED
- Control output: NPN open-collector 100 mA max. (24 VDC max.), Residual voltage: 1 V max.
- Protection circuit: Reversed polarity,surge voltage
- Rating - Power voltage: 12 to 24 VDC ±10%, ripple: 10% max., Class 2
- Rating - Current consumption.: 45mA or less
- Environmental resistance - Enclosure rating: IP67
- Environmental resistance - Operating ambient luminance: Incandescent lamp: 3,000 lux or less, sunlight: 10,000 lux or less
- Environmental resistance - Operating temperature range: -10 to +50°C 14 to 122°F (no freezing)
- Environmental resistance - Operating ambient humidity: 35 to 85%RH (no condensation)
- Environmental resistance - Vibration: 10 to 55 Hz compound amplitude 1.5 mm 0.06", 2 hours for each of X, Y, Z axis
- Environmental resistance - Shock resistance: 1,000 m/s2, 6 times in each of the X, Y, and Z directions
- Case material: Fiberglass reinforced plastic
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on PK-71 . Santa Clara Systems carries 2,127 items from Keyence.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
