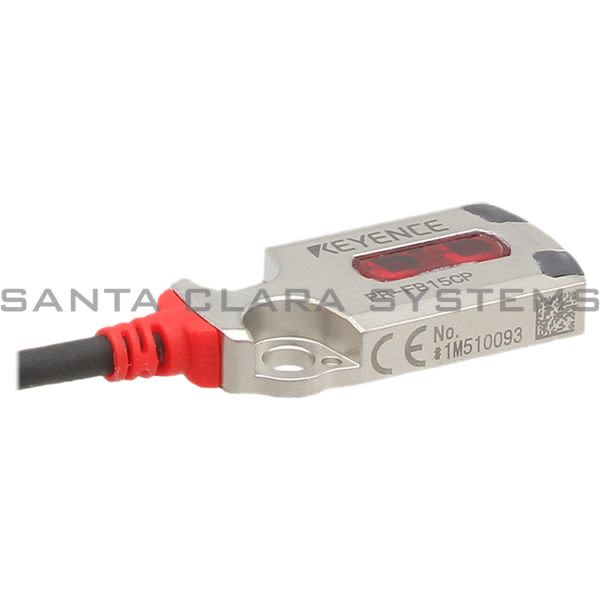

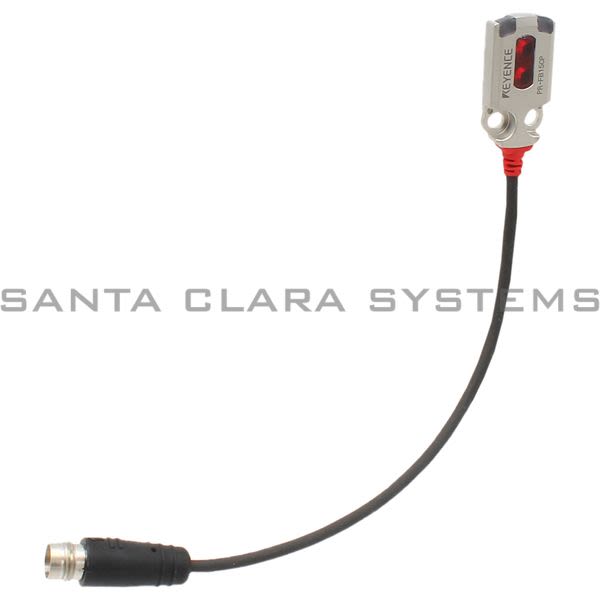

PR-FB15CP

Keyence - Photoelectric Sensor

Current response time:

4 Minutes 26 Seconds

Description: Photoelectric Sensor
Weight: Approx. 10 g
Footnotes: *1 The number of control outputs for the M8 connector (3 pin) type is 1 output. If "D" is at the end of the model code, the sensor is equipped with a Dark-ON output. If "L" is at the end of the model code, the sensor is equipped with a Light-ON output. Example: The PR-M51C3PL has a Light-ON output (output 2). (The response time also becomes the output 2 response time)
Type: Reflective (Background suppression)
Output: PNP
Light source: 4 element, point light source, red LED (650 nm)
Accessories: Instruction Manual
Sensitivity adjustment: None
Shape: Flat

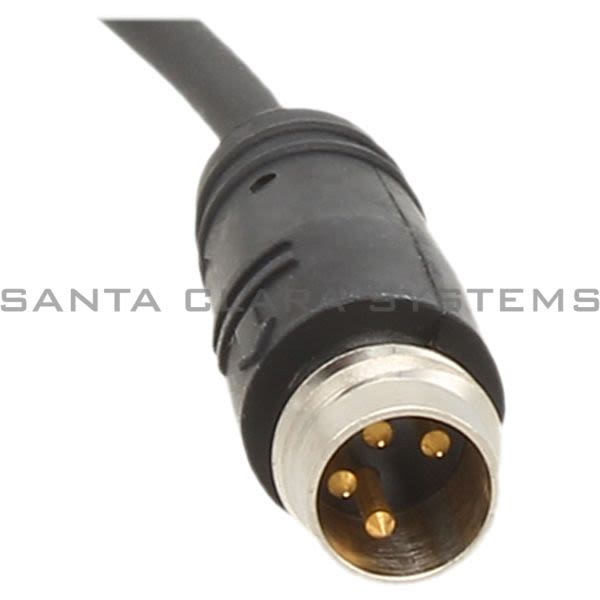

Cable connection: M8 connector (4 pin)
Detection distance: 1 to 15 mm 0.04" to 0.59"
Number of control outputs: 2
Output operation - Output 1: Light-ON
Output operation - Output 2: Dark-ON
Response time - Output 1: 0.5 ms
Response time - Output 2: ON?OFF: 2.7 ms, OFF?ON: 0.5 ms*1
Spot diameter: Approx. 2.5 x 4.5 mm (at 15 mm)

Mutual interference prevention function: 4 sensors
Indicator lamp: Output indicator (orange), stable operation indicator (green), thrubeam type transmitter: power supply indicator (green)
Control output: 30 VDC or lower, 50 mA or lower Leakage current: When 3 k? load resistance, 0.3 mA or lower. When 1 k? load resistance, 0.5 mA or lower. When 0.2 k? load resistance, 1.5 mA or lower Residual voltage: When 10 mA or lower, 1.0 V or lower. When 10 to 30 mA, 1.5 V or lower. When 30 to 50 mA, 2.0 V or lower.
Protection circuit: Power supply reverse connection protection, output overcurrent protection, output surge protection, power supply surge protection
Rating - Power voltage: 10 to 30 VDC including 10% ripple (P-P)
Rating - Current consumption.: 19 mA
Environment resistance - Enclosure rating: IP67 (IEC 60529), IP69K (DIN 40050-9), 4X, 6P, 13 (NEMA 250)
Environment resistance - Ambient Light: Incandescent lamp 5,000 lx or lower, sunlight: 20,000 lx or lower
Environment resistance - Ambient temperature: -25 to +55°C -13 to 131°F (no freezing)
Environment resistance - Ambient storage temperature: -25 to +75°C -13 to 167°F
Environment resistance - Ambient humidity: 35 to 85% RH (no condensation)
Environment resistance - Shock resistance: 1,000 m/s2, X, Y, Z each direction 6 times
Environment resistance - Vibration resistance: 10 to 55 Hz, double amplitude 1.5 mm 0.06", X, Y, Z each direction 2 hours
Environment resistance - Insulation resistance: 20 M? or higher (500 VDC)
Environment resistance - Withstand voltage: 1,000 VAC 50/60Hz 1min
Materials: Case: SUS 316L, indicator cover/lens cover: polysulfone, cord protector: polymethylpentene, filler: polyester-based resin
