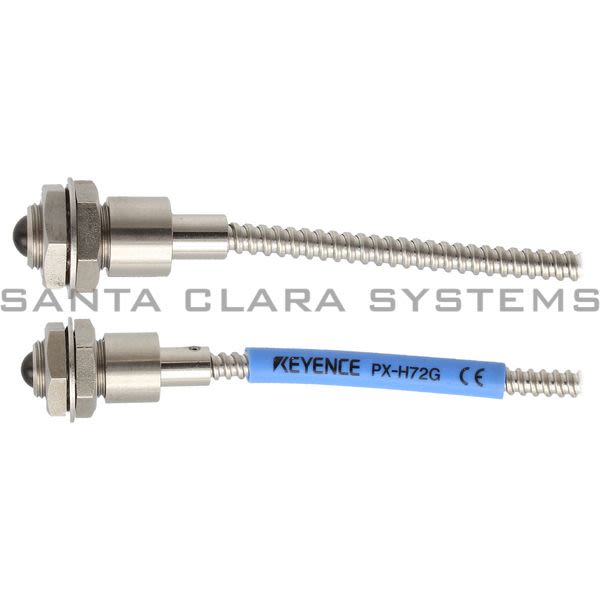

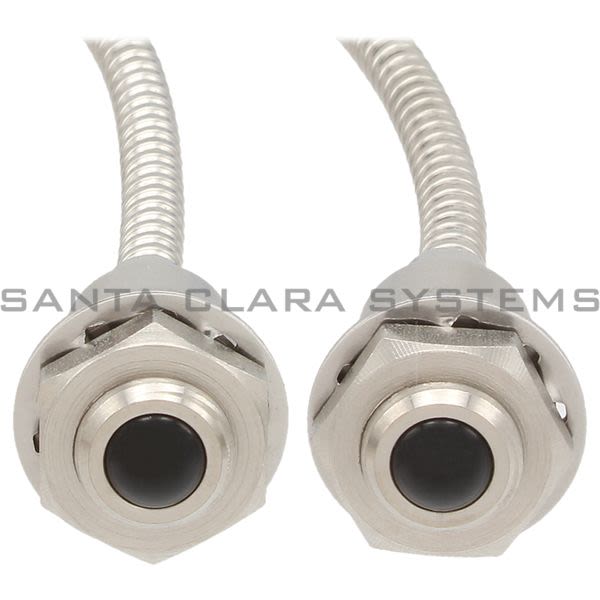

PX-H72G

Keyence - Sensor Throughbeam

Current response time:

13 Minutes 18 Seconds

Description: Sensor Throughbeam
Weight: Approx. 260 g (Including cable)
Footnotes: *1 The PX-H72 is available with a 30 m 98.4' cable for the transmitter and 10 m 32.8' cable for the receiver.
Type: M12 Thrubeam Armored
Accessories: Screw nut (SUS303) x 4, toothed washer (SUS304) x 2
Light source LED: Infrared LED (Wavelength?870 nm)
Detecting distance - TURBO: 10 m 32.8'
Detecting distance - SUPER: 15 m 49.2'
Detecting distance - ULTRA: 30 m 98.4'

Detecting distance - MEGA: 40 m 131.2'
Detectable object: ø7.5 mm ø0.30" Opaque materials
Environmental resistance - Enclosure rating: IEC?IP68/JEM?IP68g/NEMA?4X, 6P, 13/DIN?IP69K
Environmental resistance - Operating ambient luminance: Incandescent lamp?20000 lux max., Sunlight?30000 lux max.
Environmental resistance - Operating temperature range: -10 to 55°C 14 to 131°F, No freezing
Environmental resistance - Operating ambient humidity: 35 to 85% RH (No condensation)
Environmental resistance - Vibration: 10 to 55 Hz double amplitude 1.5 mm 0.06" 2 hours each in X, Y and Z axis
Case material: Housing ?SUS303 (Plastic parts?PMP, POM) Lens ?BK7

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on PX-H72G . Santa Clara Systems carries 2,110 items from Keyence.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
