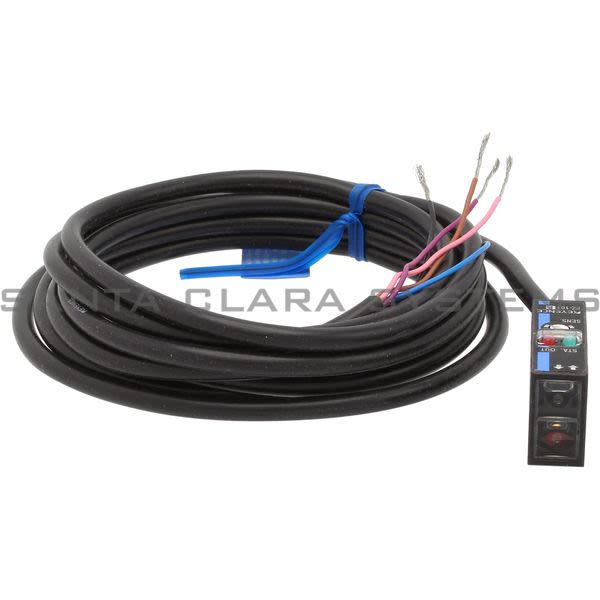

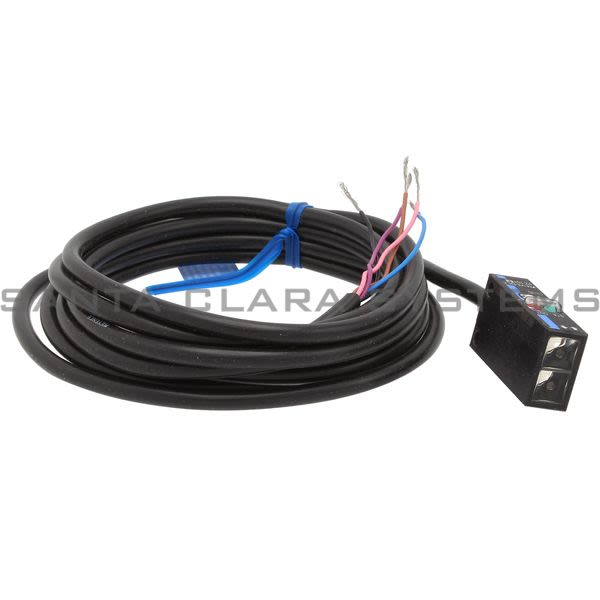

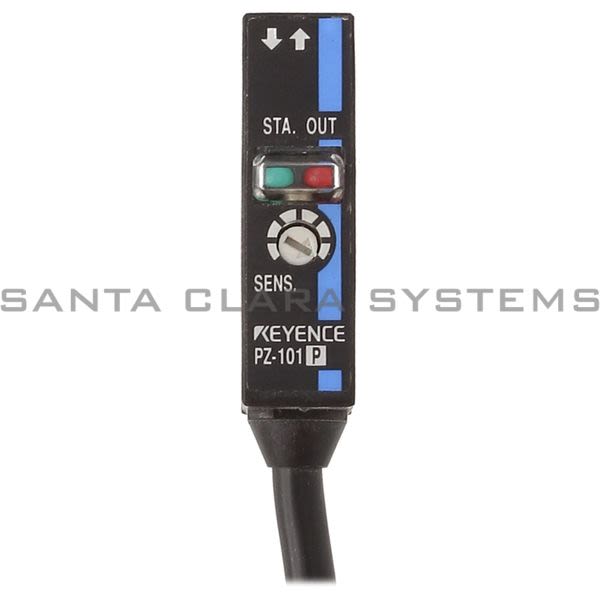

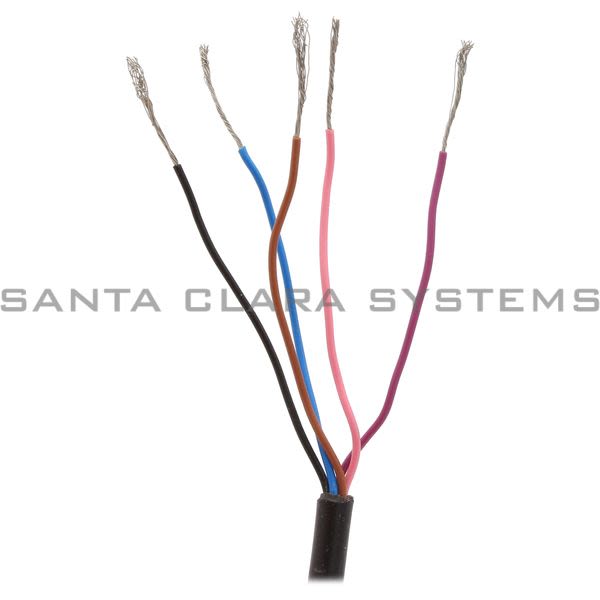

PZ-101P

Keyence - Photoelectric Sensor

Current response time:

16 Minutes 4 Seconds

Description: Photoelectric Sensor
Weight: Approx. 75 g
Type: Focused-beam
Response time: 1 ms max. (2 ms in alternate frequency mode)
Light source: Visible red LED
Sensitivity adjustment: 1-turn trimmer (240°)
Detecting distance: 0 to 100 mm 3.94"
Spot diameter: Approx5mm? (when detecting distance is 50 mm )?Approx7mm? (when detecting distance is 100 mm )
Detectable object: Transparent and opaque materials
Hysteresis: 20% max. of detecting distance
Operation mode: LIGHT-ON/DARK-ON (selectable by wiring)

Indicator lamp: Output: Red LED, Stable operation: Green LED, Power supply: Red LED
Control output: PNP open-collector 100 mA max. (30 V max.)
Protection circuit: Reversed polarity, overcurrent protection
Rating - Power voltage: 12 to 24 VDC ±10%
Rating - Current consumption.: 30 mA max.
Environmental resistance - Enclosure rating: IP67
Environmental resistance - Operating ambient luminance: Incandescent lamp: 5,000 lux max., Sunlight: 20,000 lux max.
Environmental resistance - Operating temperature range: -20 to +55°C -4 to 131°F, No freezing
Environmental resistance - Operating ambient humidity: 35 to 85%, No condensation
Environmental resistance - Vibration: 10 to 55 Hz compound amplitude 1.5 mm 0.06", 2 hours for each of X, Y, Z axis
Case material: Glass-fiber reinforced plastic
