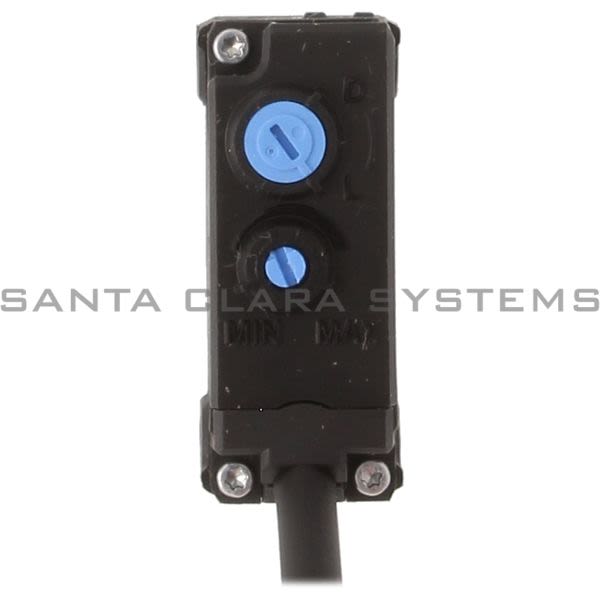

• Keyence PZ-G62N Photoelectric Sensor Product Image

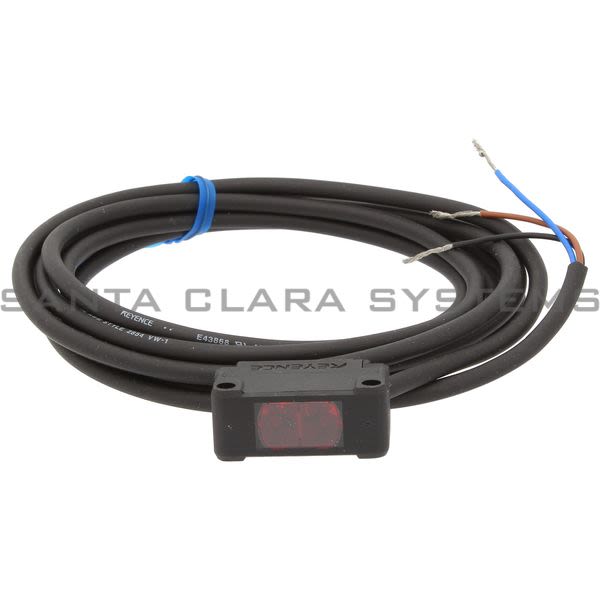

  • Keyence PZ-G62N Photoelectric Sensor Product Image

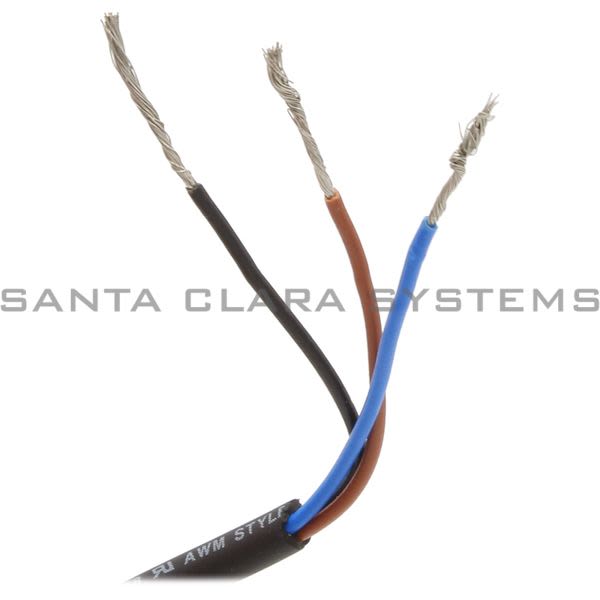

  • Keyence PZ-G62N Photoelectric Sensor Product Image

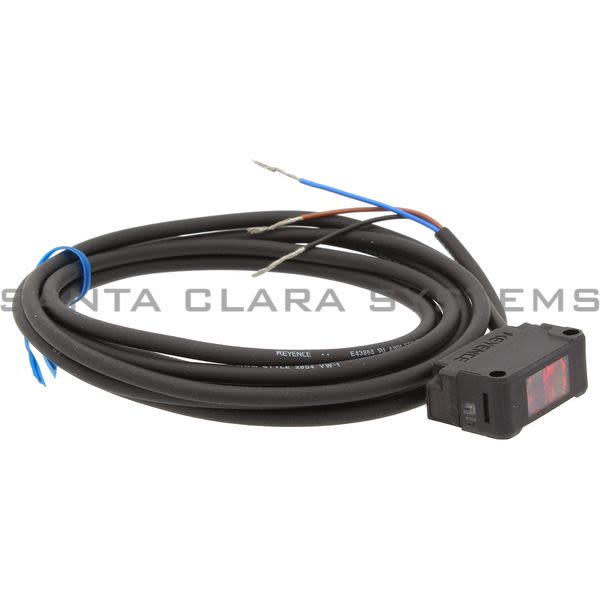

  • Keyence PZ-G62N Photoelectric Sensor Product Image
  • Keyence PZ-G62N Barcode

PZ-G62N

Product Summary:

  • Type: Retro-reflective *1
  • Shape: Rectangular
  • Output: NPN
  • Cable connection: Cable (2 m 78.74") *2
  • Spot diameter: ?
Get a Quote
           or
  • Description: Photoelectric Sensor
  • Environmental resistance - Enclosure rating: IEC: IP67/NEMA: 4A, 6, 12/DIN: IP69K
  • Environmental resistance - Operating ambient luminance: Incandescent lamp: 5,000 lux max., Sunlight: 20,000 lux max.
  • Environmental resistance - Operating temperature range: -20 to +55C -4 to 131F, No freezing
  • Environmental resistance - Operating ambient humidity: 35 to 85% RH (No condensation)
  • Environmental resistance - Vibration: 10 to 55 Hz, 1.5 mm 0.06" double amplitude in the X, Y, and Z directions, 2 hours respectively
  • Environmental resistance - Shock resistance: 1,000 m/s2 6 times in the X and Y directions
  • Material - Housing, M18 nut (threaded models only): Glass-fiber reinforced PBT
  • Material - Lens cover: Polyarylate (PAR)
  • Material - Trimmer: Glass-fiber reinforced polyamide (PA)
  • Material - Case connection: Screw: Nickel-plated iron and zinc, packing: nitrile butadiene rubber (NBR)
  • Material - Cable (cable models only): Polyvinyl chloride (PVC)
  • Material - Connector (connector type with cable only): ?
  • Accessories: Instruction manual
  • Weight: Rectangular cable models: Approx. 60 g (Thrubeam-models transmitter: Approx. 50 g)
  • Footnotes: *1 Cable sold separately for connector models/pigtail quick disconnect models. Reflector sold separately for retro-reflective models. *2 Cable sold separately for connector models
  • Type: Retro-reflective *1
  • Shape: Rectangular
  • Output: NPN
  • Cable connection: Cable (2 m 78.74") *2
  • Detecting distance: 0.1 to 1 m 0.3' to 3.3' (When R-2L reflector is used)
  • Spot diameter: ?
  • Light source: Infrared LED
  • Sensitivity adjustment: 1-turn trimmer (230)
  • Response time: 500 ?s
  • Operation mode: LIGHT-ON/DARK-ON (switch-selectable)
  • Indicators (LED): Output: Orange LED, Stable operation: Green LED
  • Control output: Open collector output, 30 V max., 100 mA max., Residual voltage: 1 V max.
  • Protection circuit: Reversed polarity, overcurrent protection, surge absorber
  • Interference suppression: Up to 2 units (with the automatic different frequency function)
  • Tightening torque: Rectangular models (Mounting hole part): 0.5 N m max.
  • Rating - Power voltage: 10 to 30 VDC including Ripple 10% (P-P), Class 2
  • Rating - Current consumption.: 34 mA max.
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on PZ-G62N . Santa Clara Systems carries 1,255 items from Keyence.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
