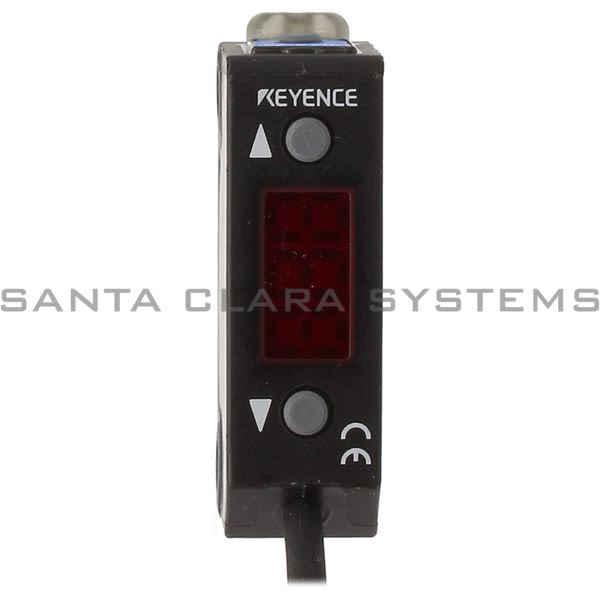

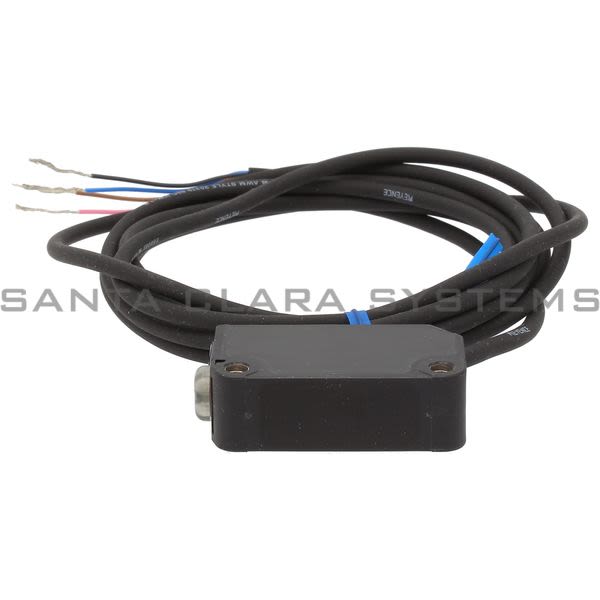

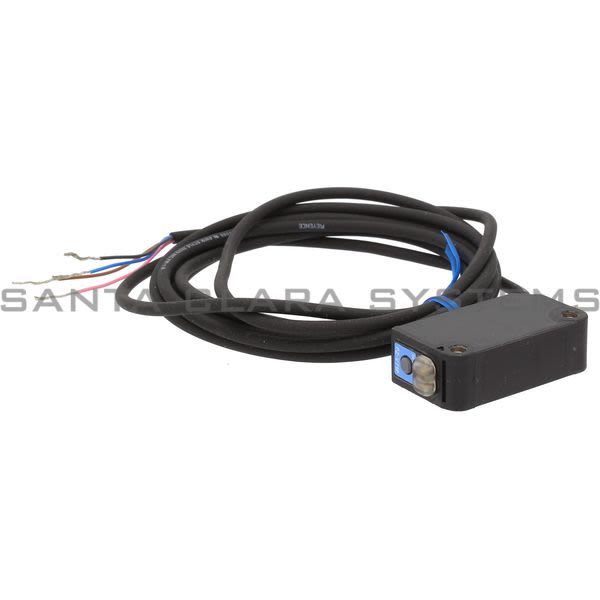

PZ-V71P

Keyence - Photoelectric Sensor

Current response time:

By 5AM PT on Monday

Emergency?

Description: Photoelectric Sensor

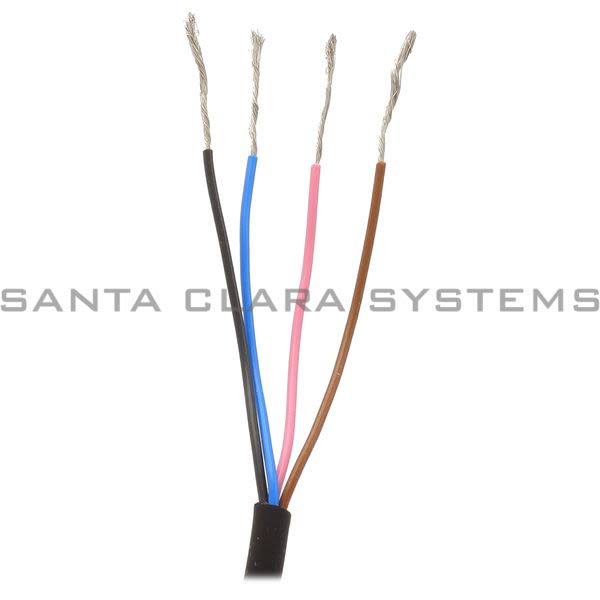

Weight: Approx 70 g (including 2-m 6.6' cable)
Footnotes: *1 The detecting distance is obtained with the maximum sensitivity.
Type: Intelligent reflective
Response time: 1 ms max.
Output: PNP
Sensitivity adjustment: Automatic push button
Detecting distance: 20 to 900 mm 0.79" x 35.43" (300 x 300 mm 11.81" x 11.81" white mat paper)*1
Setting distance: 150 to 900 mm5.91" x 35.43" (300 x 300 mm11.81" x 11.81"white mat paper)
Light source.: Infrared LED
Operation mode: LIGHT-ON/DARK-ON (switch-selectable)
Control output: 100 mA (24 V) max., Residual voltage: 1 V max.

Digital monitor: 7-segment, 3-digit red LED
Protection circuit: Reversed polarity, overcurrent protection, surge absorber
Rating - Power voltage: 12 to 24 VDC 10%, Ripple (P-P): 10% max., Class 2
Rating - Power consumption: 45 mA max.
Environmental resistance - Enclosure rating: IP67
Environmental resistance - Operating ambient luminance: Incandescent lamp 3000 lux max., Sunlight: 20000 lux max.
Environmental resistance - Operating temperature range: -20 to +55C -4 to 131F, No freezing
Environmental resistance - Operating ambient humidity: 35 to 85% RH (No condensation)
Environmental resistance - Vibration: 10 to 55 Hz, double amplitude 1.5 mm 0.06", 2 hours for each of X,Y,Z axis
Environmental resistance - Shock resistance: 1,000 m/s2, 6 times in each of the X, Y, and Z directions
Case material: Glass-fiber reinforced plastic

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on PZ-V71P . Santa Clara Systems carries 2,096 items from Keyence.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
