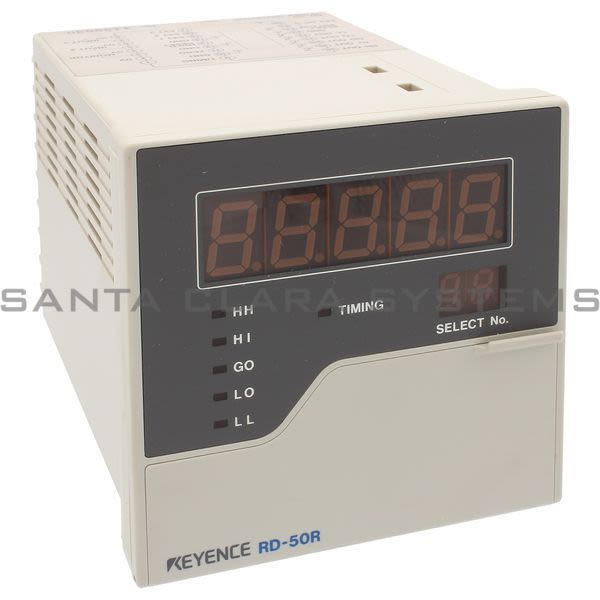

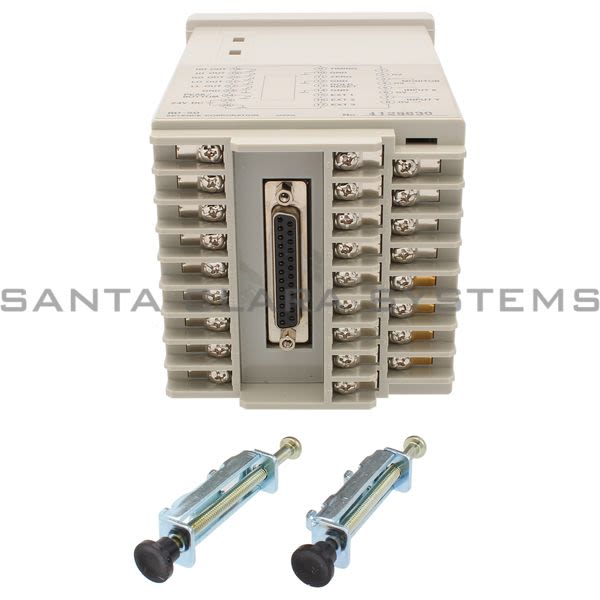

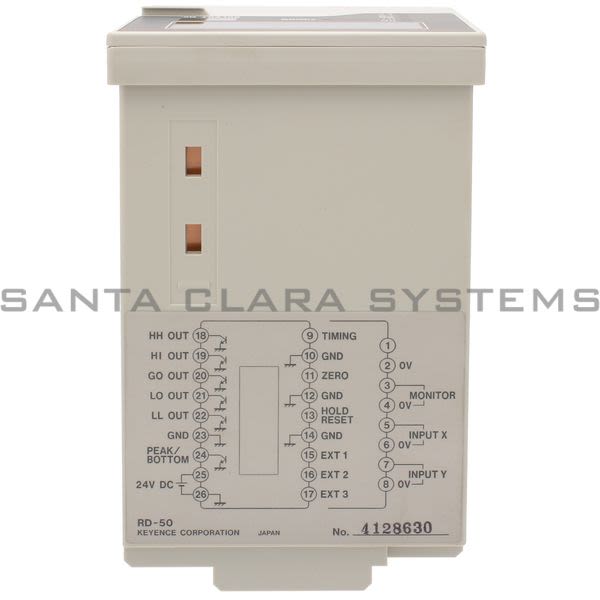

- Description: Analog Sensor Controller
- Weight: Approx 700 g (excluding fi ttings)
- Footnotes: *1 Calibration is performed once per second, and when it is, this becomes 1.5 ms.
- Measurement function: DC voltage measurement, DC current measurement
- A/D converting system: Successive comparison
- Measurement range: ±5 VDC, ±10 VDC, 4 to 20 mA DC (switchable)
- Display range: -19,999 to +39,999
- Measurement accuracy: ±0.03% of F.S. (±5 V range), ±0.03% of F.S. (±10 V range), ±0.05% of F.S. (4 to 20 mA range) * F.S. is 20 mA.
- Input - Impedance: 1 M? (for voltage input), 350 - (for current input)
- Input - System: Single-ended
- Input - Number of inputs: 2
- Sampling rate: 2000 times/second
- Display speed: 20 times/second
- Display power: 7-segment 3-color LED (character height: 15.24 mm 0.60")
- Over-range alarm: FFFF is displayed
- Control input: NPN open-collector or non-voltage contact signal
- Control input - Timing input: NPN open-collector or non-voltage contact signal
- Control input - Hold reset input: NPN open-collector or non-voltage contact signal
- Control input - Auto-zero input: NPN open-collector or non-voltage contact signal
- Control input - External setting input: NPN open-collector or non-voltage contact signal
- Control output - Setting method: 4 steps x 8 programmable setups (selectable)
- Control output - Signal: 5 x NPN (HH, HI, GO, LO, LL): 100 mA max. (40 V max.)
- Control output - Response time: 1 ms (at the highest speed)*1
- Control output - OFF-delay time: 60 ms (ON/OFF selectable)
- Analog output voltage - Output voltage: ±10 VDC
- Analog output voltage - Impedance: 100 ?
- Analog output voltage - Response time: 1 ms (at the highest speed)*1
- Interface: Data output and control input through RS-232C
- Major functions: MDL, digital filter, auto-zero, offset, input, data processing (10 modes), tolerance limit storage (up to 8 sets), decimal point shift, error message display, etc.
- Rating - Power voltage: 24 VDC ±10%
- Rating - Current consumption.: 270 mA max.
- Environmental resistance - Operating temperature range: 0 to 50°C 32 to 122°F
- Environmental resistance - Operating ambient humidity: 35 to 85% RH (No condensation)
- Environmental resistance - Vibration: 10 to 55 Hz, double amplitude 1.5 mm 0.06", 2 hours for each of X,Y,Z axis
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on RD-50RK . Santa Clara Systems carries 2,110 items from Keyence.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
