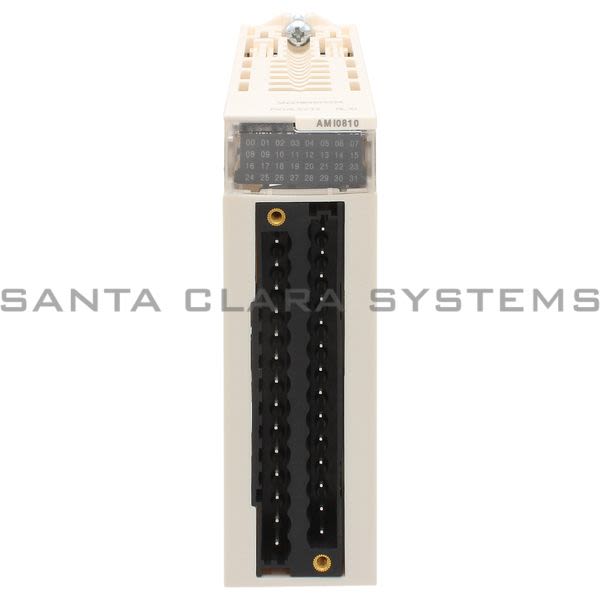

• Modicon BMX AMI0810 isolated analog input module Product Image

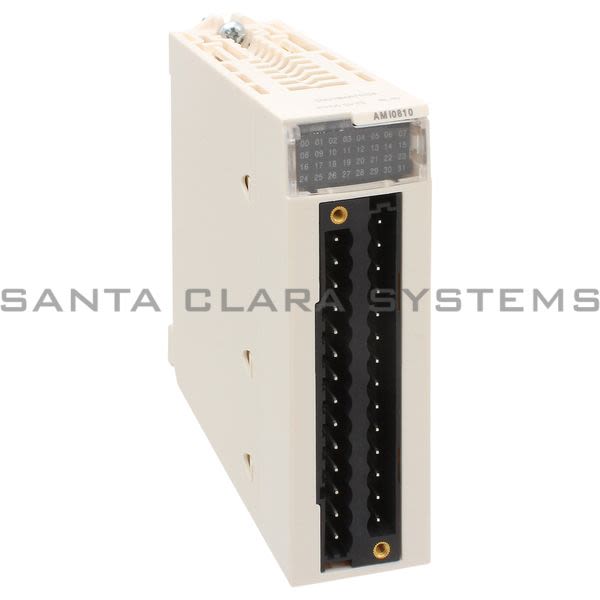

  • Modicon BMX AMI0810 isolated analog input module Product Image

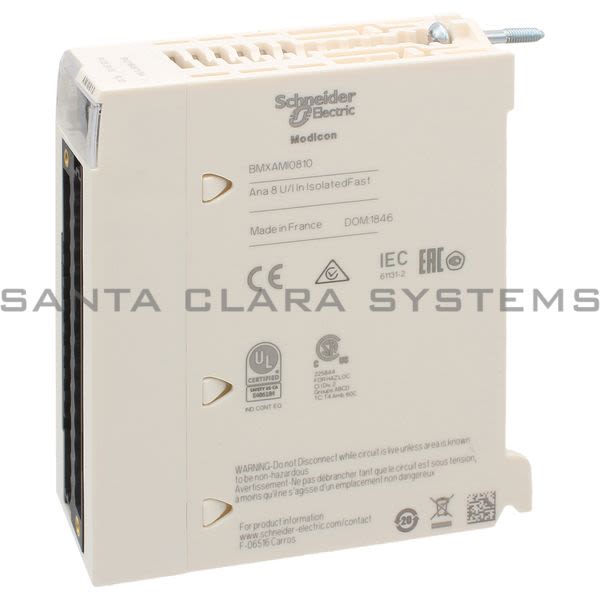

  • Modicon BMX AMI0810 isolated analog input module Product Image

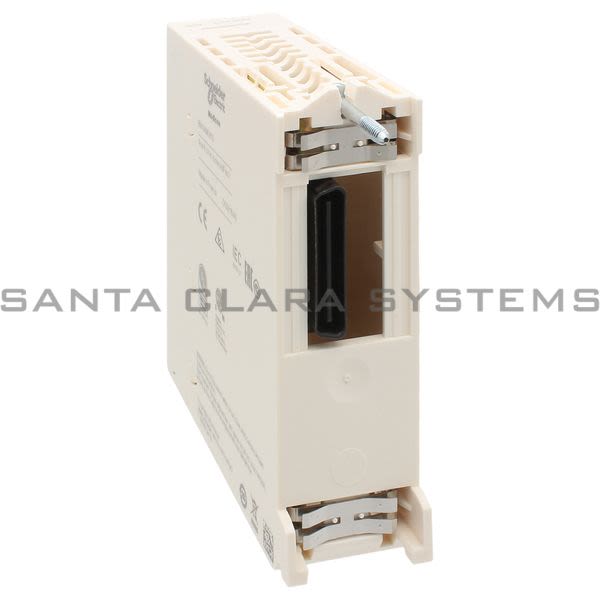

  • Modicon BMX AMI0810 isolated analog input module Product Image
  • Modicon BMX AMI0810 Barcode

BMXAMI0810

Product Summary:

  • Range of product: Modicon X80
  • Product weight: 0.36 lb(US) (0.165 kg)
  • Electrical connection: 1 connector 28 ways
  • Protective treatment: TC
  • Relative humidity: 5...95 % without condensation
Get a Quote

Current response time:

9 Minutes 2 Seconds
  • Description: isolated analog input module
  • Range of product: Modicon X80
  • Product weight: 0.36 lb(US) (0.165 kg)
  • Electrical connection: 1 connector 28 ways
  • Protective treatment: TC
  • Relative humidity: 5...95 % without condensation
  • Standards: EN/IEC 61131-2, CSA C22.2 No 61010-2-201, UL 61010-2-201, EN/IEC 61010-2-201
  • Operating altitude: 0...6561.68 ft. (0...2000 m), 2000...5000 m (with derating factor)
  • Analog/digital conversion: 16 bits
  • Vibration resistance: 3 gn
  • Product or component type: Analog input module
  • Analogue input resolution: 15 bits + sign
  • Shock resistance: 30 gn
  • Input impedance: 10 MOhm
  • Ambient air temperature for storage: -40...185 F (-40...85 C)
  • Input output isolation: Isolated
  • Permitted overload on inputs: +/- 30 mA 0...20 mA, +/- 30 mA 4...20 mA, +/- 30 V +/- 10 V, +/- 30 V +/- 5 V, +/- 30 V 0...10 V, +/- 30 V 0...5 V, +/- 30 V 1...5 V, +/- 30 mA +/- 20 mA
  • Ambient air temperature for operation: 32...140 F (0...60 C)
  • Input level: High level
  • Internal conversion resistor: 250 Ohm
  • Analogue input number: 8
  • Precision of internal conversion resistor: 0.1 % - 15 ppm/C
  • IP degree of protection: IP20
  • Analogue input type: Current +/- 20 mA, Current 0...20 mA, Current 4...20 mA, Voltage +/- 10 V, Voltage +/- 5 V, Voltage 0...10 V, Voltage 0...5 V, Voltage 1...5 V
  • Type of filter: First order digital filtering
  • Product certifications: CE, CSA, EAC, UL, Merchant Navy, RCM
  • Fast read cycle time: 1 ms + 1 ms x number of channels used
  • Nominal read cycle time: 9 ms for 8 channels
  • Measurement error: <= 0.1 % of full scale +/- 10 V 0...60 C, <= 0.1 % of full scale +/- 5 V 0...60 C, <= 0.1 % of full scale 0...10 V 0...60 C, <= 0.1 % of full scale 0...5 V 0...60 C, <= 0.1 % of full scale 1...5 V 0...60 C, <= 0.3 % of full scale +/- 20 mA 0...60 C, <= 0.3 % of full scale 0...20 mA 0...60 C, <= 0.3 % of full scale 4...20 mA 0...60 C, 0.15 % of full scale +/- 20 mA 25 C, 0.15 % of full scale 0...20 mA 25 C, 0.15 % of full scale 4...20 mA 25 C, 0.08 % of full scale +/- 10 V 25 C, 0.08 % of full scale 0...10 V 25 C, 0.08 % of full scale 0...5 V 25 C, 0.08 % of full scale 1...5 V 25 C, 0.08 % of full scale +/- 5 V 25 C, <= 0.2 % of full scale +/- 10 V 0...60 C
  • Temperature drift: 30 ppm/C, 50 ppm/C
  • Common mode between channels: >= 80 dB
  • Digital value format: +/- 32000 in user scale, +/- 10000 by default
  • Isolation voltage: 300 V DC between channels, 1400 V DC between channels and ground, 1400 V DC between channels and bus
  • Measurement resolution: 0.36 mV +/- 10 V, 0.36 mV 0...10 V, 0.36 mV 0...5 V, 0.36 mV 1...5 V, 0.36 mV +/- 5 V, 1.4 A +/- 20 mA, 1.4 A 0...20 mA, 1.4 A 4...20 mA
  • Maximum conversion value: +/- 11.4 V +/- 10 V, +/- 11.4 V 0...10 V, +/- 11.4 V 0...5 V, +/- 11.4 V 1...5 V, 0...30 mA +/- 20 mA, 0...30 mA 0...20 mA, 0...30 mA 4...20 mA, 0...30 mA +/- 5 V
  • status LED: 1 LED green RUN, 1 LED per channel green channel diagnostic, 1 LED red ERR, 1 LED red I/O
  • Current consumption: 150 mA at 3.3 V DC, 45 mA at 24 V DC
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on BMXAMI0810 . Santa Clara Systems carries 1,951 items from Modicon.
  • Isolated Analog Input Module
