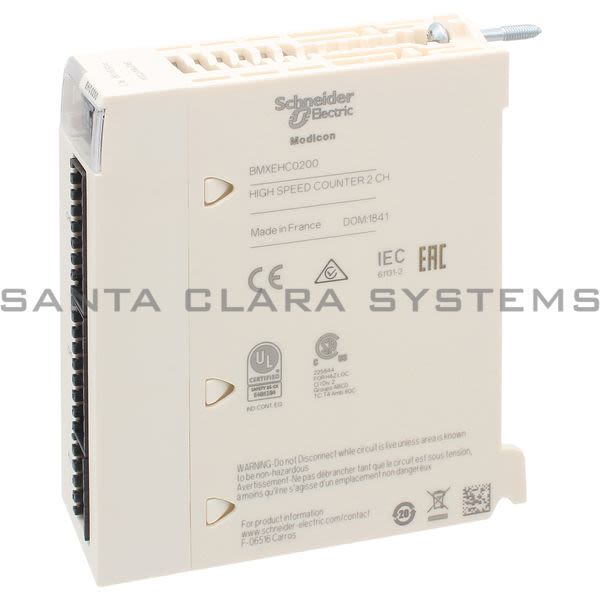

• Modicon BMXEHC0200 high speed counter module M340 - 2 channels Product Image

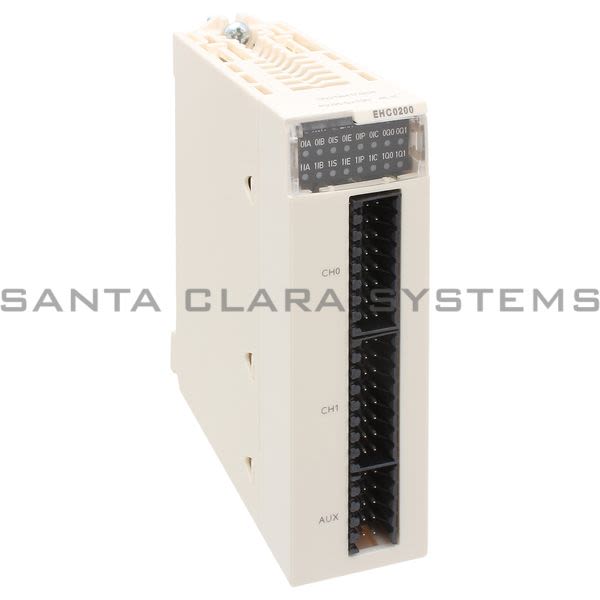

  • Modicon BMXEHC0200 high speed counter module M340 - 2 channels Product Image

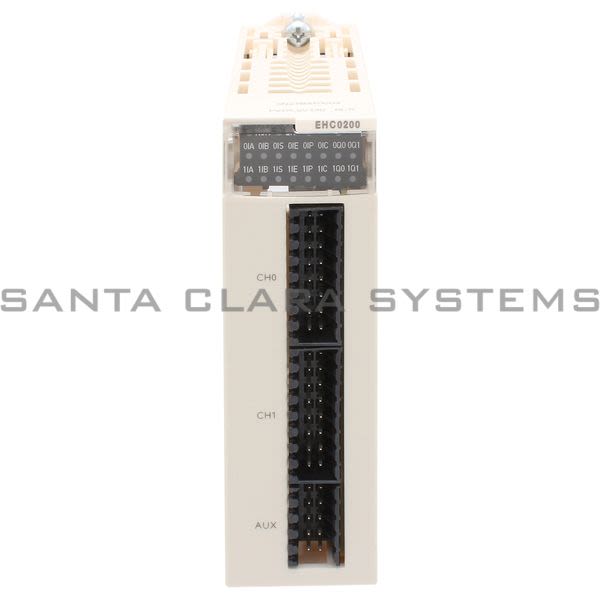

  • Modicon BMXEHC0200 high speed counter module M340 - 2 channels Product Image

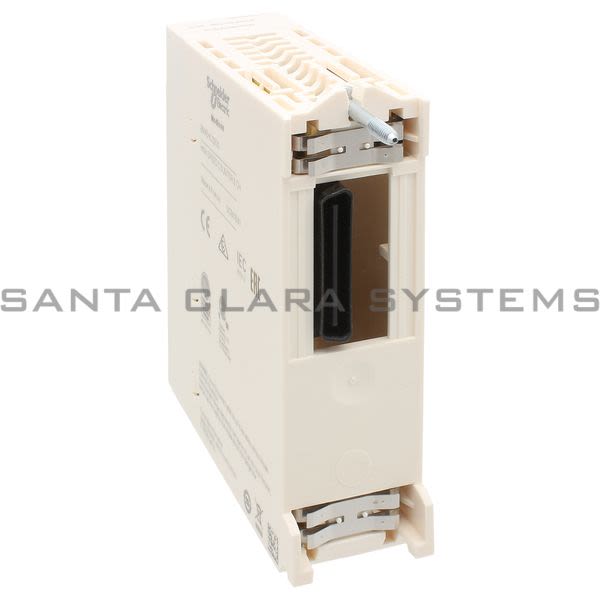

  • Modicon BMXEHC0200 high speed counter module M340 - 2 channels Product Image
  • Modicon BMXEHC0200 Barcode

BMXEHC0200

Product Summary:

  • Range of product: Modicon M340 automation platform
  • Product weight: 0.25 lb(US) (0.112 kg)
  • Input voltage: 24 V DC type 3
  • Input type: 3 auxiliary input, 3 high speed
  • Protective treatment: TC
Get a Quote

Current response time:

By 5AM PT on Wednesday
  • Description: high speed counter module M340 - 2 channels
  • Range of product: Modicon M340 automation platform
  • Product weight: 0.25 lb(US) (0.112 kg)
  • Electrical connection: 1 connector 10 pins for wiring auxiliary input and sensor power supply, 1 connector 16 pins for wiring the sensors of counter 0, 1 connector 16 pins for wiring the sensors of counter 1
  • Input voltage: 24 V DC type 3
  • Input type: 3 auxiliary input, 3 high speed
  • Protective treatment: TC
  • Relative humidity: 10...95 % without condensation
  • Counter functions: Ratio count, Frequency meter, Down counting, 32-bit counter counting, Loop (modulo) counting, Width modulation, Count events, Measure time periods
  • Ambient air temperature for operation: 32...140 F (0...60 C)
  • Product or component type: Counter module
  • Cycle time: 1 ms
  • Number of channels: 2
  • Isolation voltage: 1500 V 60 s
  • IP degree of protection: IP20
  • Counting frequency: <= 60000 Hz
  • Number of inputs: 6
  • Input voltage limits: 30 V
  • Input compatibility: Incremental encoder with push-pull outputs 10...30 V totem pole, 2-wire/3-wire proximity sensor 19.2...30 V
  • Input current: > 2 mA at 11 V
  • Voltage state 1 guaranteed: 11...30 V
  • Number of outputs: 2
  • Current state 1 guaranteed: >= 6 mA
  • Output voltage: 24 V DC
  • Voltage state 0 guaranteed: < 5 V
  • Current state 0 guaranteed: <= 1.5 mA
  • Discrete output logic: Positive or negative configurable
  • Output current limits: <= 0.5 A per output, <= 2 A per module
  • Output voltage limits: 19.2...30 V
  • Maximum load current: 0.5 A per output, 1 A per module
  • Leakage current: <= 0.1 mA at state 0
  • Voltage drop: < 3 V at state 1
  • Output overload protection: Integrated
  • Output short-circuit protection: 1.5 A integrated
  • Overlap time: 0.2 ms
  • Current consumption: 200 mA 3.3 V DC bus, 40 mA 24 V DC rack, 80 mA 24 V DC sensor
  • Module format: Standard
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on BMXEHC0200 . Santa Clara Systems carries 1,951 items from Modicon.
  • High Speed Counter Module M340 - 2 Channels
