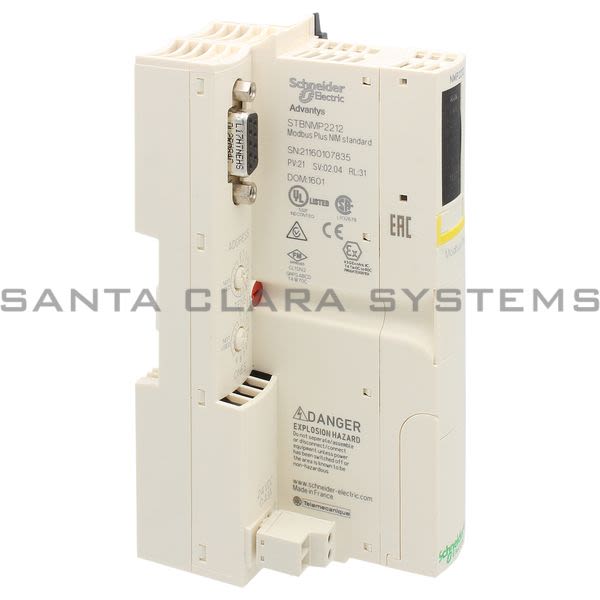

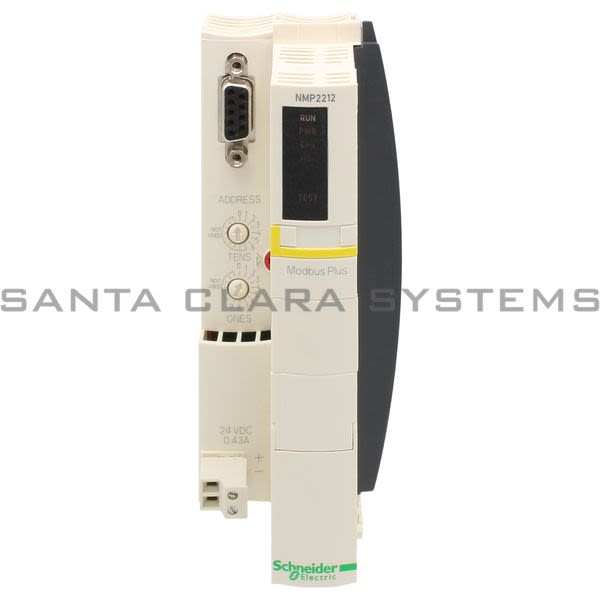

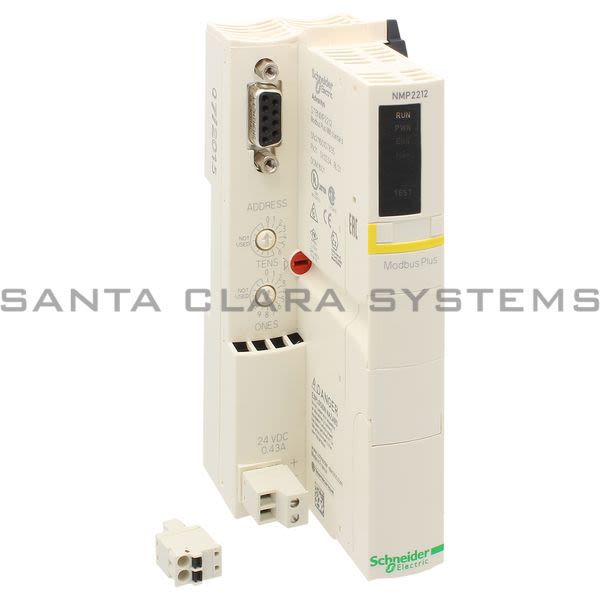

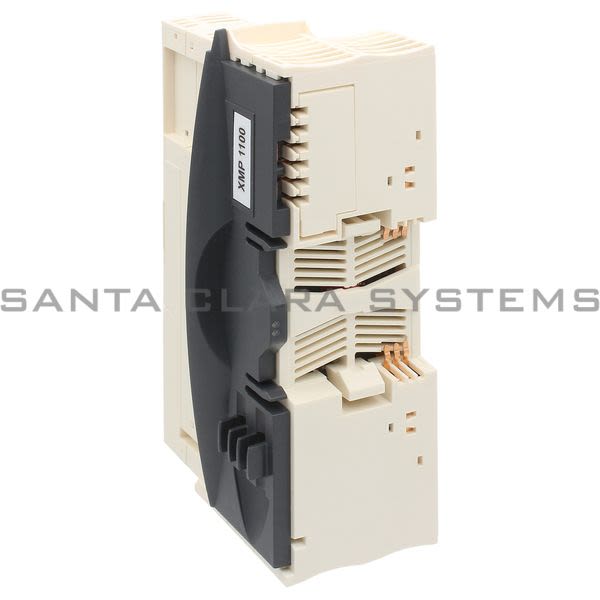

STBNMP2212

Modicon - standard Network Interface Module STB - Modbus Plus - 1 Mbit/s

Current response time:

By 5AM PT on Wednesday

Emergency?

*Santa Clara Systems is not a Modicon Authorized Distributor.

Description: standard Network Interface Module STB - Modbus Plus - 1 Mbit/s
Range of product: Modicon STB distributed I/O solution
Product weight: 0.32 lb(US) (0.145 kg)
[Us] rated supply voltage: 24 V DC
Operating altitude: <= 6561.68 ft. (2000 m)
Relative humidity: 95 % at 140 F (60 C) without condensation
Depth: 2.76 in (70 mm)
Height: 1.57 in (40 mm)
Width: 5.05 in (128.3 mm)
number of addressable I/O module: 0...32 per island
Electromagnetic compatibility: Immunity to electromagnetic interference conforming to IEC 61131-2
Product or component type: Standard Network Interface Module
Communication service: Peer cop dialogue, Global Data, Peer to peer dialogue
Product certifications: C-Tick, CSA, UL, ATEX Cat 3G, FM Class 1 Division 2
Integrated connection type: Modbus Plus conforming to modbus.org HE-13 (RS232 port), Modbus Plus conforming to modbus.org 8-way female (RS232 port), Modbus Plus conforming to modbus.org 9-way female SUB-D connector 1 twisted pair (network)
Pollution degree: 2 conforming to IEC 60664-1
Number of segments: 1 primary, maximum 6 extensions

Power supply type: SELV
Number of devices per segment: 0...32 per segment, 0...64 all segment
Supply current: >= 700 mA
IP degree of protection: IP20 conforming to EN 61131-2 class 1
Transmission rate: 1 Mbit/s for bus length of 0...1476.38 ft. (0...450 m) per segment, 1 Mbit/s for bus length of 0...5905.51 ft. (0...1800 m) per segment with 3 repeaters
Supply voltage limits: 19.2...30 V
Ambient air temperature for operation: 32...140 F (0...60 C) without derating, -13...158 F (-25...70 C) with derating factor
Structure type: Industrial LAN
Input current: 430 mA for supply circuit
Ambient air temperature for storage: -40...185 F (-40...85 C)
Nominal output current: 1.2 A, 0.575 A (140...158 F (60...70 C))
Output voltage: 5.25 V DC (tolerance: +/- 0.21 %) logic bus
Vibration resistance: +/-0.35 mm (f = 10...58 Hz), 5 gn (f = 58...150 Hz) on 35 x 15 mm symmetrical DIN rail, 3 gn (f = 58...150 Hz) on 35 x 7.5 mm symmetrical DIN rail
Marking: CE
Shock resistance: 30 gn 11 ms conforming to IEC 88 reference 2-27
Overvoltage category: II
status LED: 1 LED red module error (ERR), 1 LED green island state (RUN), 1 LED green power supply (PWR), 1 LED yellow test mode, 1 LED yellow MB+
