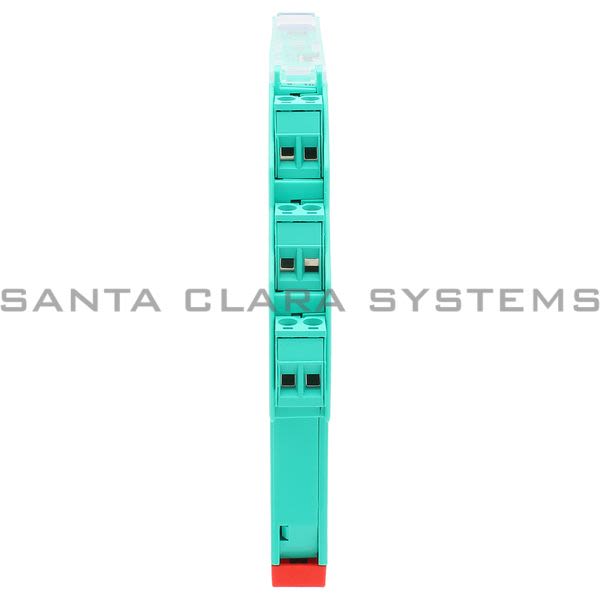

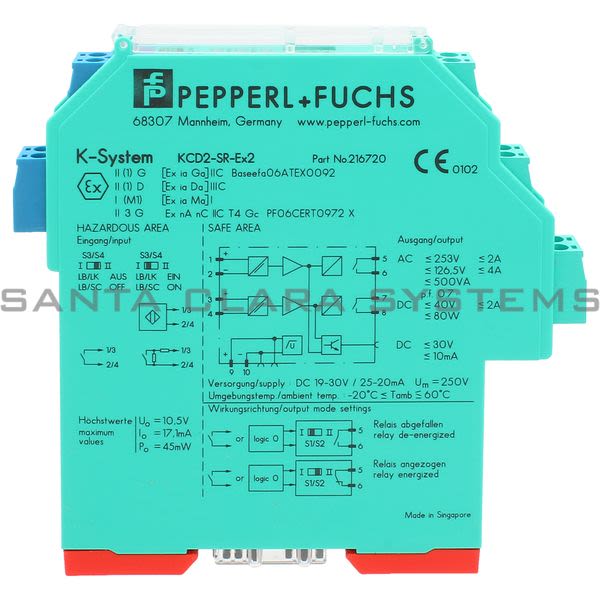

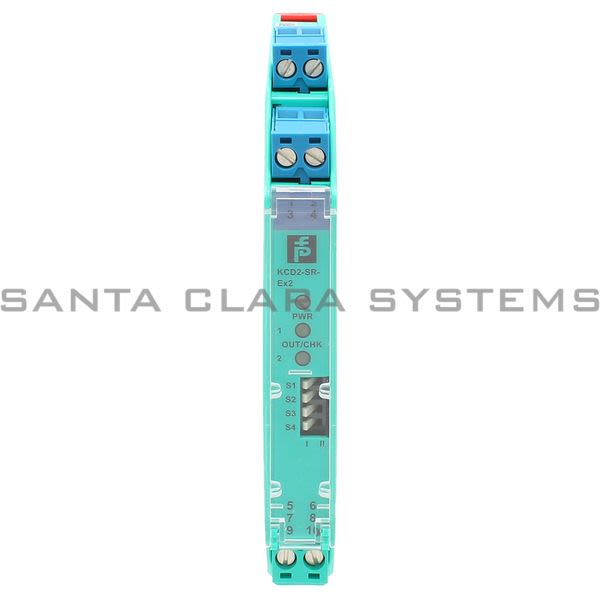

- Description: Switch Amplifier
- Switching Frequency: 0 ... 10 Hz
- Degree of Protection: IP20
- Rated Voltage: 19 ... 30 V DC
- Ripple: 0 ... 10 %
- Rated Current: 0 ... 30 mA
- Power Dissipation/Consumption: 0 ... 600 mW
- Open Circuit Voltage/Short-Circuit Current: approx. 10 V DC / approx. 8 m
- Switching Point/Switching Hysteresis: 1.2 ... 2.1 mA / approx. 0.2 mA
- Line Fault Detection: breakage I: 0 ... 0.1 mA , short-circuit I: 0 ... 6.5 mA
- Pulse/Pause Ratio: min. 20 ms / min. 20 ms
- Output I / II: signal ; relay
- Minimum Switch Current: 2 mA / 24 V DC
- Energized/De-energized Delay: 0 ... 20 ms
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on KCD2-SR-EX2 . Santa Clara Systems carries 2,008 items from Pepperl+Fuchs.
- 2-Channel Isolated Barrier <Br/>24 V Dc Supply (Power Rail) <Br/>dry Contact Or Namur Inputs <Br/>relay Contact Output <Br/>line Fault Detection (Lfd) <Br/>housing Width 12.5 Mm <Br/>up To Sil 2 Acc. To Iec 61508
Alternates
- 216720
