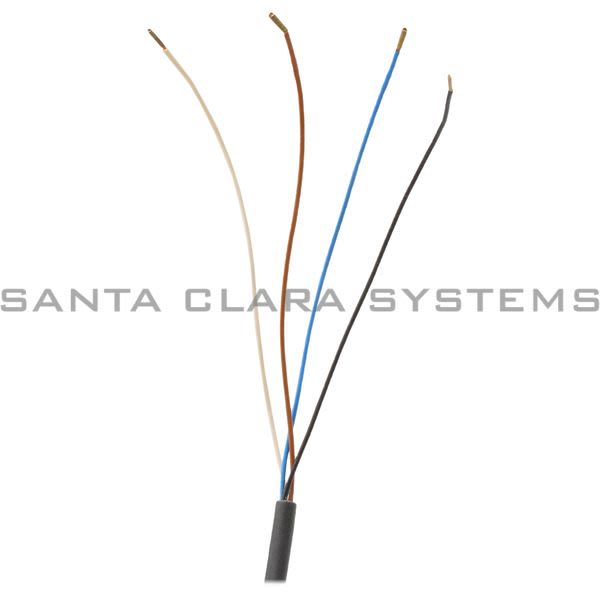

• Pepperl+Fuchs MLV41-8-H-350-RT/59/115/136 Background suppression sensor Product Image

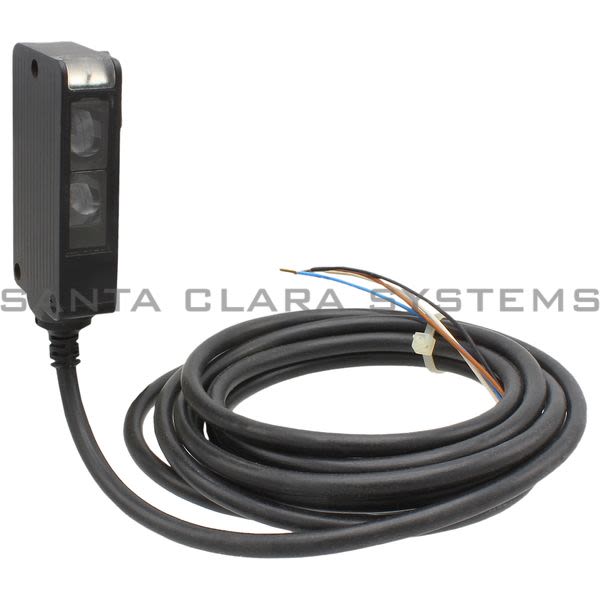

  • Pepperl+Fuchs MLV41-8-H-350-RT/59/115/136 Background suppression sensor Product Image

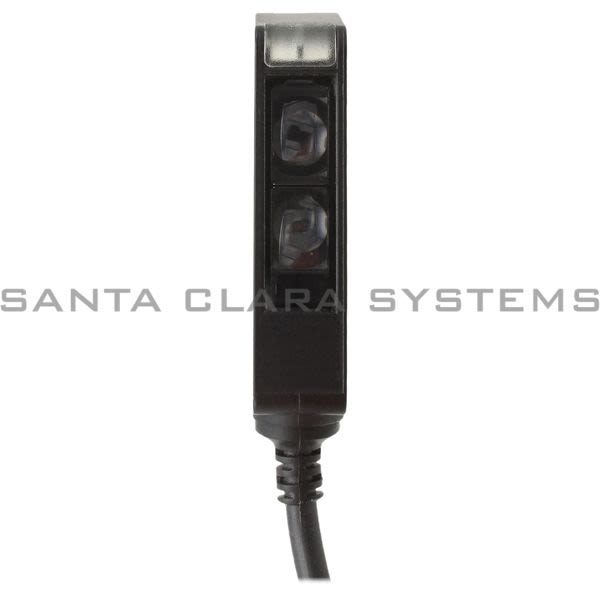

  • Pepperl+Fuchs MLV41-8-H-350-RT/59/115/136 Background suppression sensor Product Image

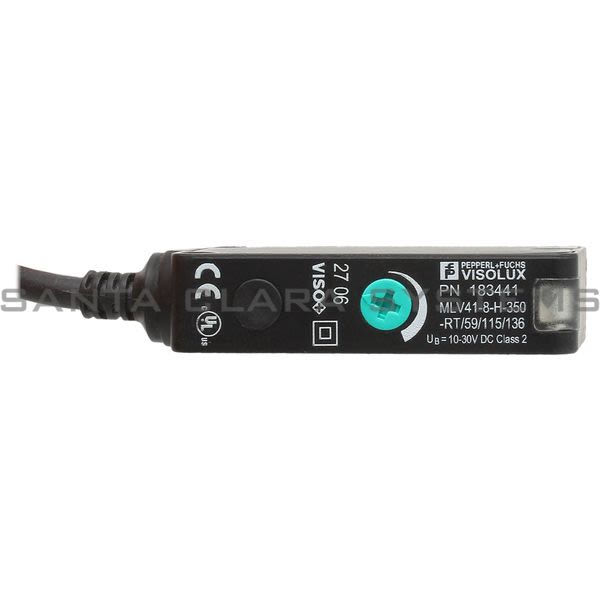

  • Pepperl+Fuchs MLV41-8-H-350-RT/59/115/136 Background suppression sensor Product Image
  • Pepperl+fuchs MLV41-8-H-350-RT/59/115/136 Barcode

MLV41-8-H-350-RT-59-115-136

Get a Quote

Current response time:

By 5AM PT on Monday
  • Description: Background suppression sensor
  • Operating voltage: 10 ... 30 V DC
  • Switching frequency: 1000 Hz
  • Degree of protection: IP67
  • Response time: 0.5 ms
  • Detection range: 50 ... 350 mm , adjustable
  • Detection range min.: 10 ... 50 mm
  • Detection range max.: 30 ... 350 mm
  • Adjustment range: 50 ... 350 mm
  • Background suppression: + 10 % of the upper limit of the detection range
  • No-load supply current: max. 25 mA
  • Signal output: 2 push-pull (4 in 1) outputs, complementary, short-circuit proof, reverse polarity protected
  • Switching voltage: max. 30 V DC
  • Switching current: max. 100 mA
  • Connection: 2 m fixed cable
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on MLV41-8-H-350-RT-59-115-136 . Santa Clara Systems carries 2,009 items from Pepperl+Fuchs.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.

Alternates

  • 183441
