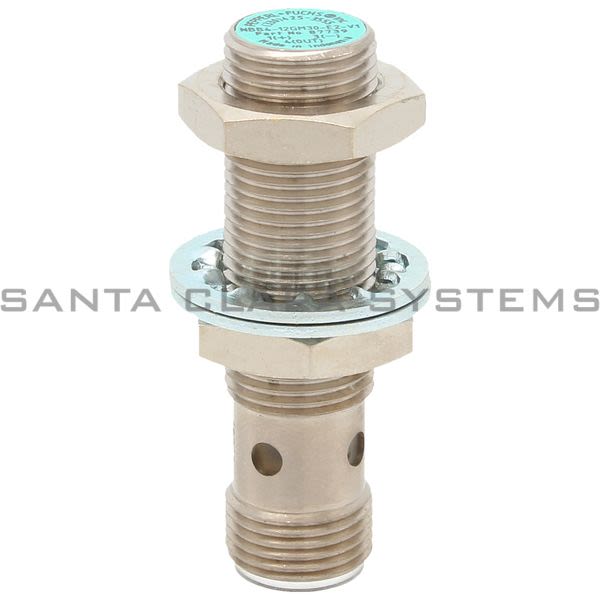

• Pepperl+Fuchs NBB4-12GM30-E2-V1 Inductive Sensor Product Image

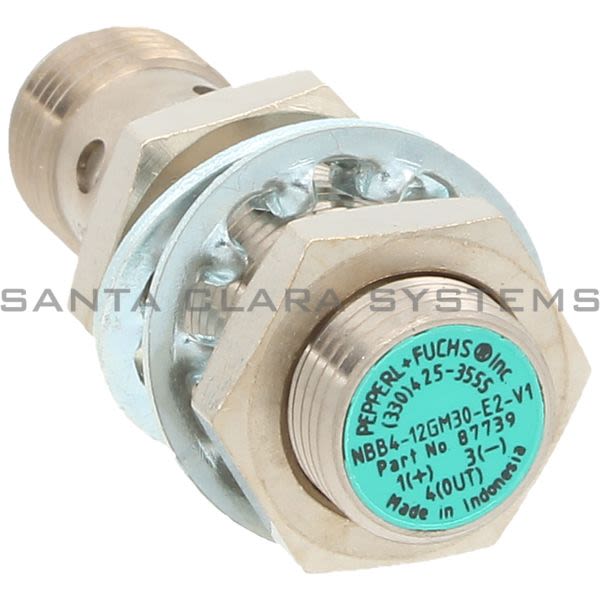

  • Pepperl+Fuchs NBB4-12GM30-E2-V1 Inductive Sensor Product Image

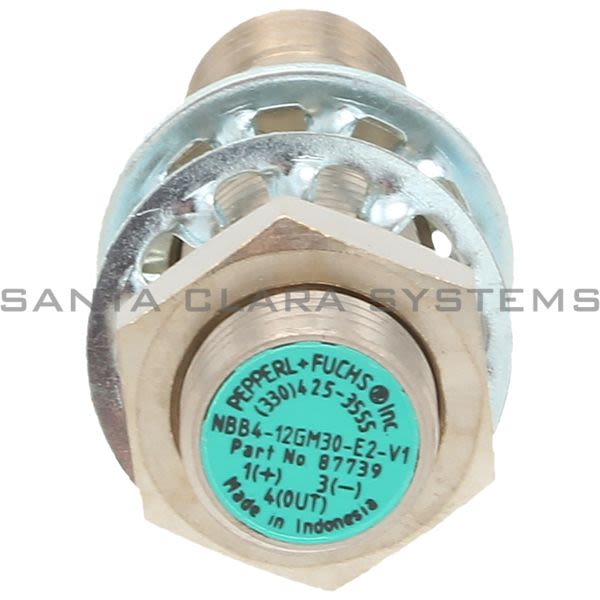

  • Pepperl+Fuchs NBB4-12GM30-E2-V1 Inductive Sensor Product Image

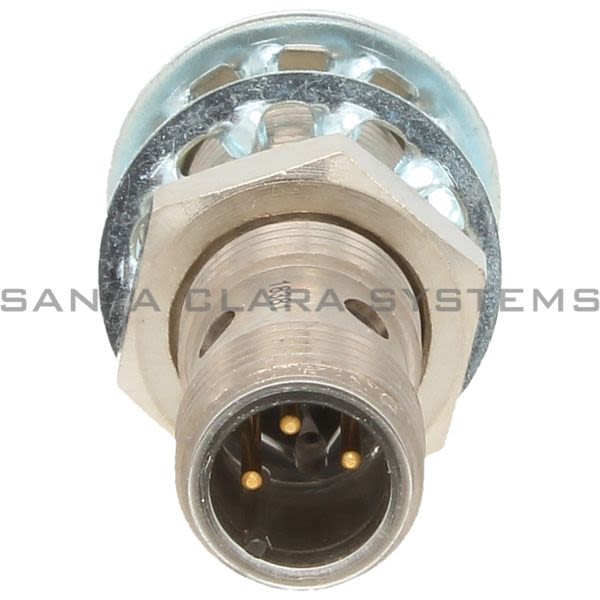

  • Pepperl+Fuchs NBB4-12GM30-E2-V1 Inductive Sensor Product Image
  • Pepperl+Fuchs NBB4-12GM30-E2-V1 Barcode

NBB4-12GM30-E2-V1

Product Summary:

  • Operating Voltage: 10 ... 30 V
  • Switching Frequency: 0 ... 500 Hz
  • Installation: flush
  • Output Type: PNP
  • Degree of protection: IP67
Get a Quote

Current response time:

11 Minutes 3 Seconds
  • Description: Inductive Sensor
  • Operating Voltage: 10 ... 30 V
  • Switching Frequency: 0 ... 500 Hz
  • Installation: flush
  • Output Type: PNP
  • Degree of protection: IP67
  • Connection type: Connector M12 x 1 , 4-pin
  • Housing material: brass, nickel-plated
  • Assured Operating Distance: 0 ... 3.24 mm
  • Operating Current: 0 ... 150 mA
  • Output Polarity: DC
  • Switching Function: Normally open (NO)
  • Hysteresis: typ. 5%
  • Reverse polarity protection: reverse polarity protected
  • Short-circuit protection: pulsing
  • Sensing face: PBT
  • Housing diameter: 12 mm
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on NBB4-12GM30-E2-V1 . Santa Clara Systems carries 1,758 items from Pepperl+Fuchs.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
