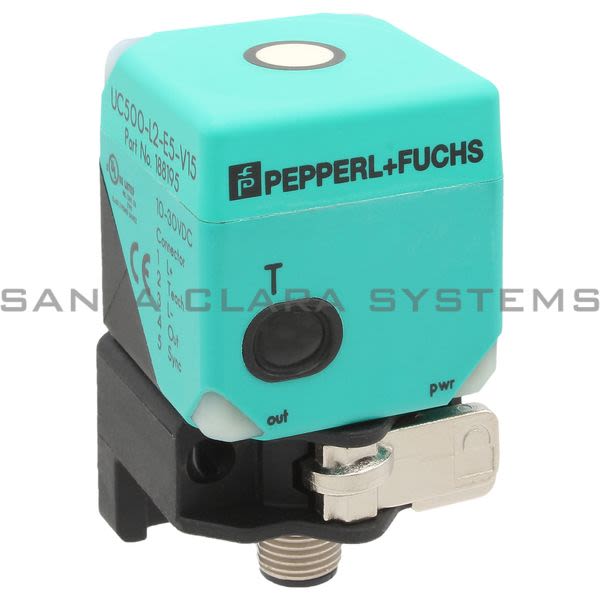

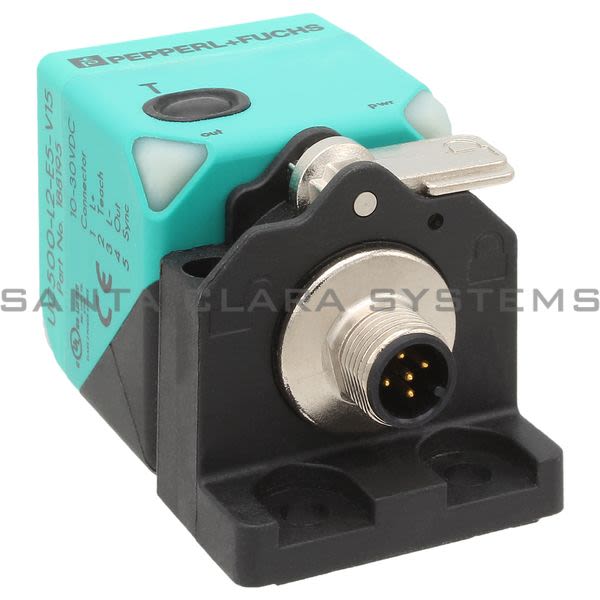

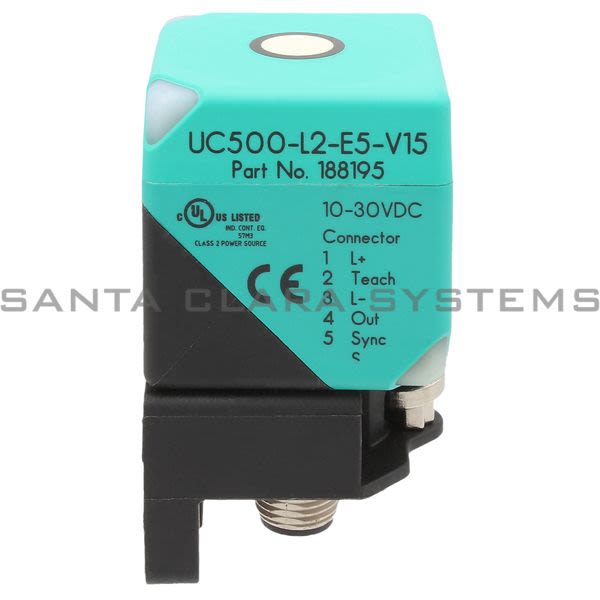

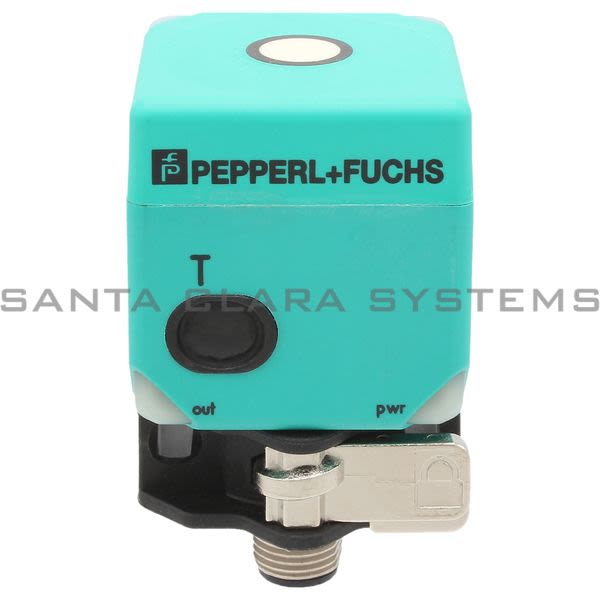

UC500-L2-E5-V15

Pepperl+Fuchs - Ultrasonic Sensor

Product Summary:

Operating Voltage: 10 ... 30 V DC
Sensing Range: 35 ... 500 mm
Adjustment Range: 50 ... 500 mm
Dead Band: 0 ... 35 mm
Standard Target Plate: 100 mm x 100 mm

Current response time:

14 Minutes 17 Seconds

Description: Ultrasonic Sensor
Operating Voltage: 10 ... 30 V DC
Sensing Range: 35 ... 500 mm
Adjustment Range: 50 ... 500 mm
Dead Band: 0 ... 35 mm
Standard Target Plate: 100 mm x 100 mm
Transducer Frequency: approx. 380 kHz

Interface Type: Serial interface (programming adapter required) 9600 BPS, no parity, 8 data bits, 1 stop bit
Input/Output Type: 1 synchronization connection, bidirectional
0 Level: 0 ... 1 V
1 Level: 4 V ...
Output Rated Operating Current: 12 mA ...
Pulse Length: 0.5 ... 300 ms (level 1)

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on UC500-L2-E5-V15 . Santa Clara Systems carries 2,184 items from Pepperl+Fuchs.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
