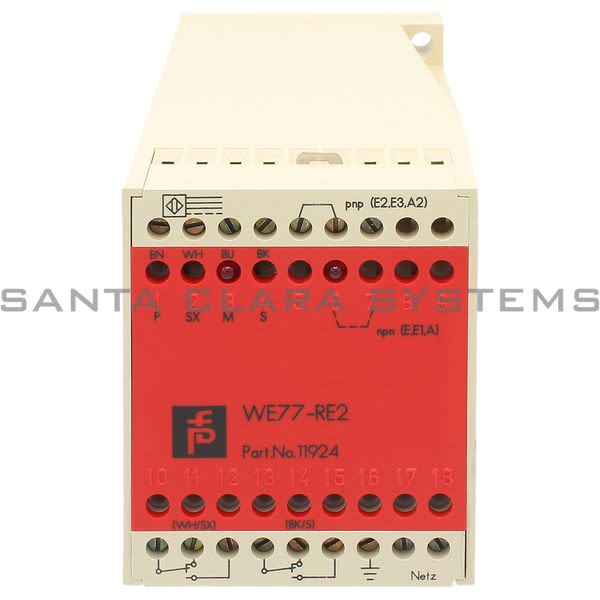

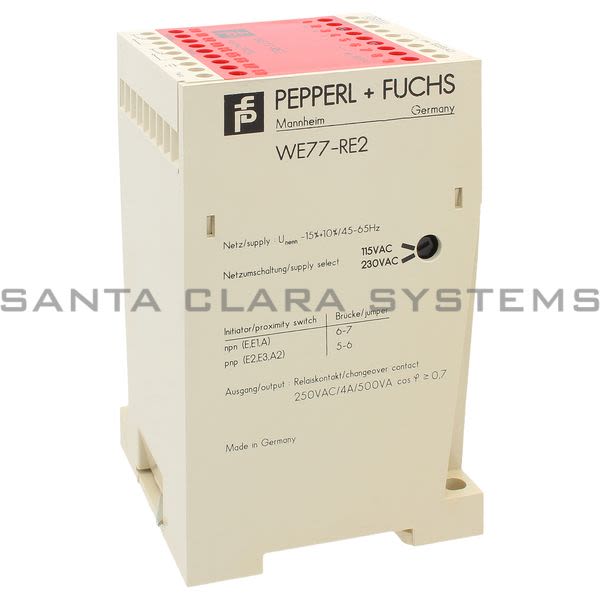

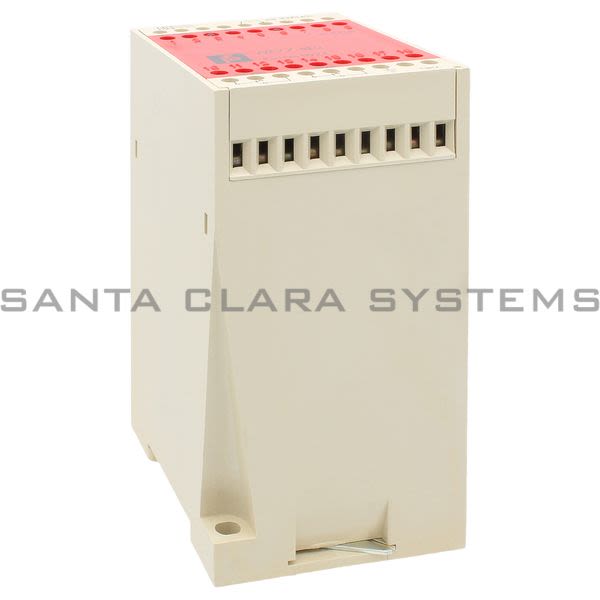

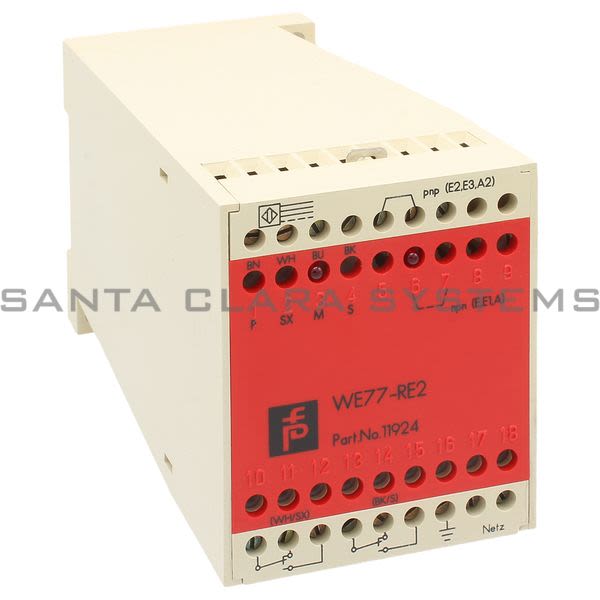

WE77-RE2

Pepperl+Fuchs - Transformer

Product Summary:

Switching Frequency: 0 ... 10 Hz
Degree of Protection: IP20
Voltage: 24 V DC
Current: 160 mA
Rated Voltage: 98 ... 126 V AC / 198 ... 253 V AC, 45 ... 63 Hz , switchable

Current response time:

By 5AM PT on Wednesday

Emergency?

Description: Transformer
Switching Frequency: 0 ... 10 Hz
Degree of Protection: IP20
Voltage: 24 V DC
Current: 160 mA

Rated Voltage: 98 ... 126 V AC / 198 ... 253 V AC, 45 ... 63 Hz , switchable
Power Consumption: approx. 7 VA
Contact Loading: AC: 250 V / DC: 220 V
Energized/De-Energized Delay: approx. 20 ms / approx. 10 ms

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on WE77-RE2 . Santa Clara Systems carries 2,184 items from Pepperl+Fuchs.

2-Channel Isolated Switch Amplifier control Circuit Designed For The Direct Current Versions Of Ultrasonic Sensors And Proximity Switches 230 V Ac/115 V Ac Mains Nominal Voltage switching Frequency 10 Khz each With 1 Relay Output With 1 Changeover Contact one Led Status Display For Each Output Relay modular Housing for Pnp-Sensors The Terminals 5 And 6

2-Channel Isolated Switch Amplifier control Circuit Designed For The Direct Current Versions Of Ultrasonic Sensors And Proximity Switches 230 V Ac/115 V Ac Mains Nominal Voltage switching Frequency 10 Khz each With 1 Relay Output With 1 Changeover Contact one Led Status Display For Each Output Relay modular Housing for Pnp-Sensors The Terminals 5 And 6
For Npn-Sensors The Terminals 6 And 7 Are To Short Out mode Of Operation: Input Closed - Energizing The Relay / Input Open - Relay De-Energized
