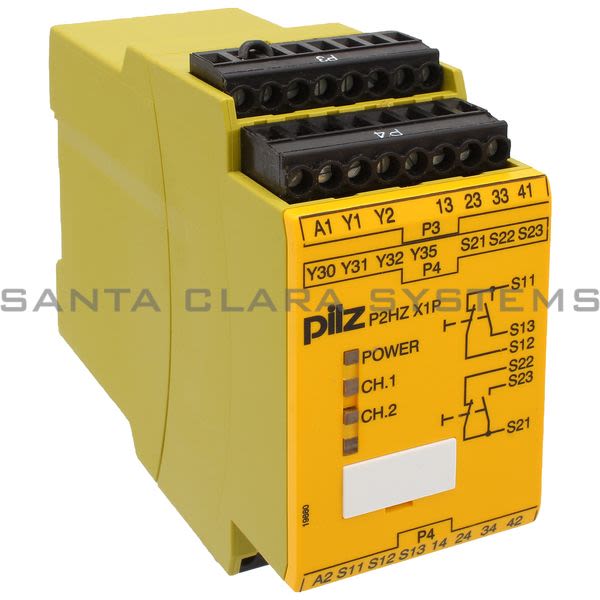

• Pilz P2HZ X1P 24VAC 3N/O 1N/C 2SO-777330 Safety relay (standalone) Inputs: 1 N/O, 1 N/C per pushbutton Outputs: 3 N/O, 1 N/C, 2 semiconductor UB 24 V AC, width:  Product Image

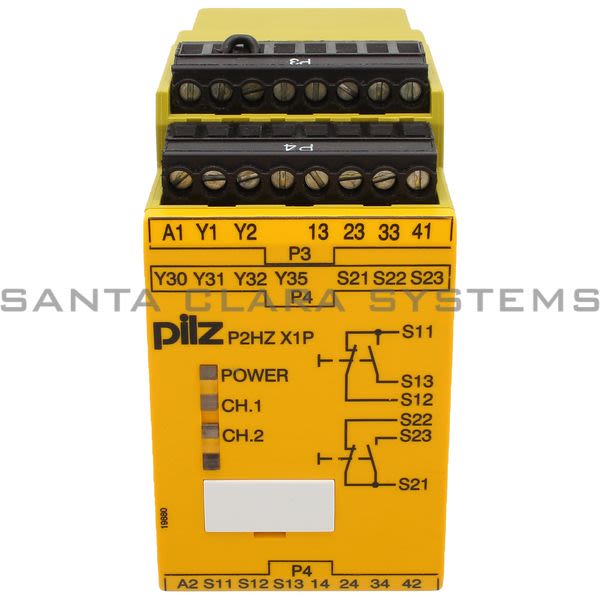

  • Pilz P2HZ X1P 24VAC 3N/O 1N/C 2SO-777330 Safety relay (standalone) Inputs: 1 N/O, 1 N/C per pushbutton Outputs: 3 N/O, 1 N/C, 2 semiconductor UB 24 V AC, width:  Product Image

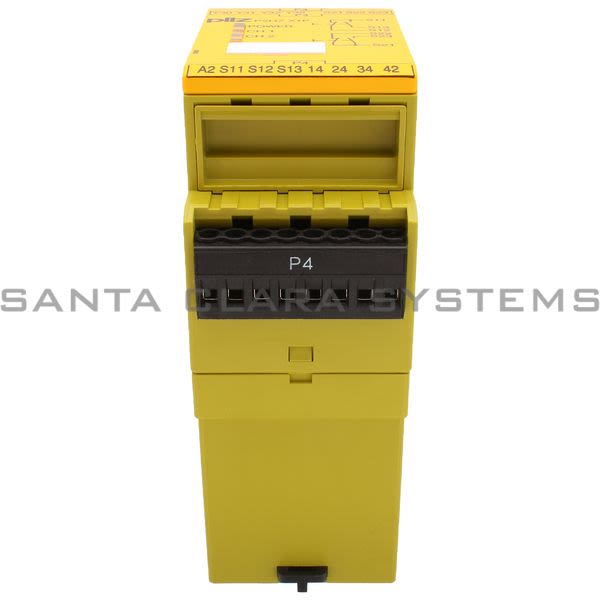

  • Pilz P2HZ X1P 24VAC 3N/O 1N/C 2SO-777330 Safety relay (standalone) Inputs: 1 N/O, 1 N/C per pushbutton Outputs: 3 N/O, 1 N/C, 2 semiconductor UB 24 V AC, width:  Product Image

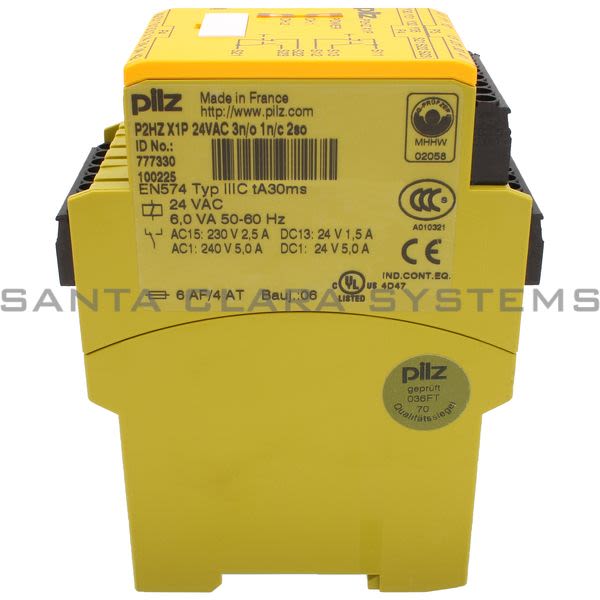

  • Pilz P2HZ X1P 24VAC 3N/O 1N/C 2SO-777330 Safety relay (standalone) Inputs: 1 N/O, 1 N/C per pushbutton Outputs: 3 N/O, 1 N/C, 2 semiconductor UB 24 V AC, width:  Product Image
  • Pilz P2HZ X1P 24VAC 3N/O 1N/C 2SO-777330 Barcode

P2HZX1P24VAC3N-O1N-C2SO-777330

Product Summary:

  • Gross weight:: 380 g
  • Net weight:: 370 g
  • Ambient temperature:: -25 - 55 C
  • Height dimension:: 94.0 mm
  • Width dimension:: 45.0 mm
Get a Quote

Current response time:

By 5AM PT on Monday
  • Description: Safety relay (standalone) Inputs: 1 N/O, 1 N/C per pushbutton Outputs: 3 N/O, 1 N/C, 2 semiconductor UB 24 V AC, width:
  • Approvals:: CE, cULus Listed, EAC (Eurasian), BG, CCC
  • Application options:: Two-hand monitoring Type III C
  • Standards:: EN 574 TYP III C, EN 62061, EN 954-1
  • Operating modes:: Dual-channel, Detection of shorts across contacts
  • Number of instantaneous safety contacts:: 3
  • Supply voltage (V):: 24,0
  • Supply voltage type:: AC
  • Terminal style:: Plug-in
  • Terminal type:: Screw terminal
  • Stop category:: 0
  • Max. current at DC13 I (6 cycles/min):: 1.5 A
  • Width dimension:: 45.0 mm
  • Height dimension:: 94.0 mm
  • Depth dimension:: 121.0 mm
  • Gross weight:: 380 g
  • Net weight:: 370 g
  • Ambient temperature:: -25 - 55 C
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on P2HZX1P24VAC3N-O1N-C2SO-777330 . Santa Clara Systems carries 2,805 items from Pilz.
  • Width: 45 Mm
  • Plug-In Terminals Of Screw Type Two-Hand Control Device/Monitoring The Simultaneity Of Two-Hand Pushbuttons.
  • Safety Relay (Standalone) Inputs: 1 N/O
  • 1 N/C Per Pushbutton Outputs: 3 N/O
  • 1 N/C
  • 2 Semiconductor Ub 24 V Ac
