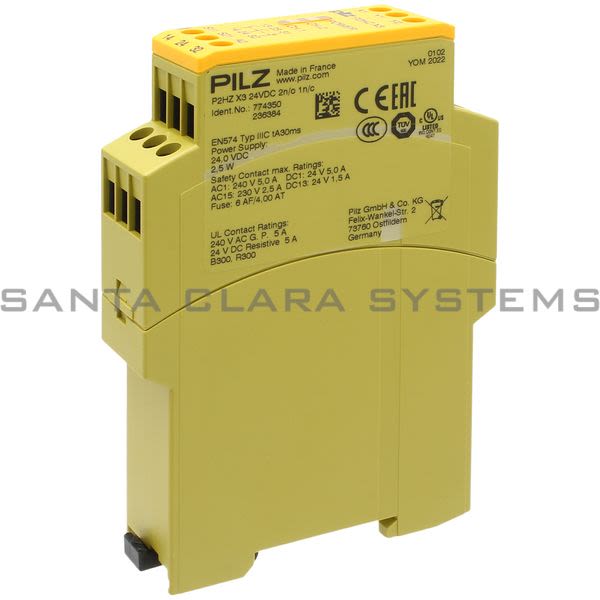

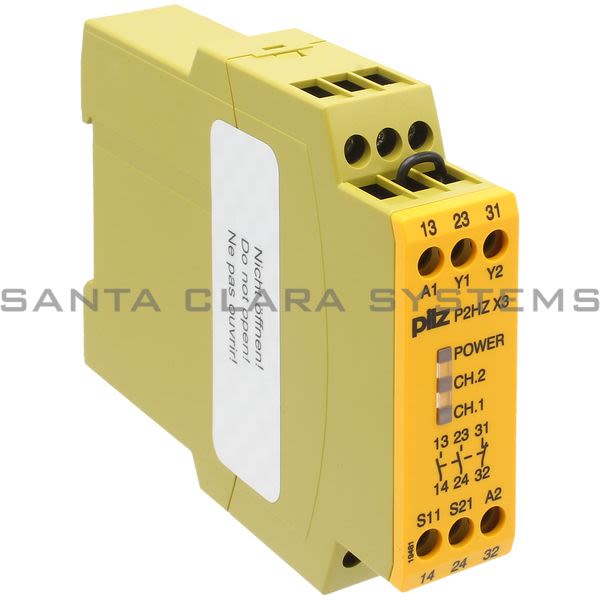

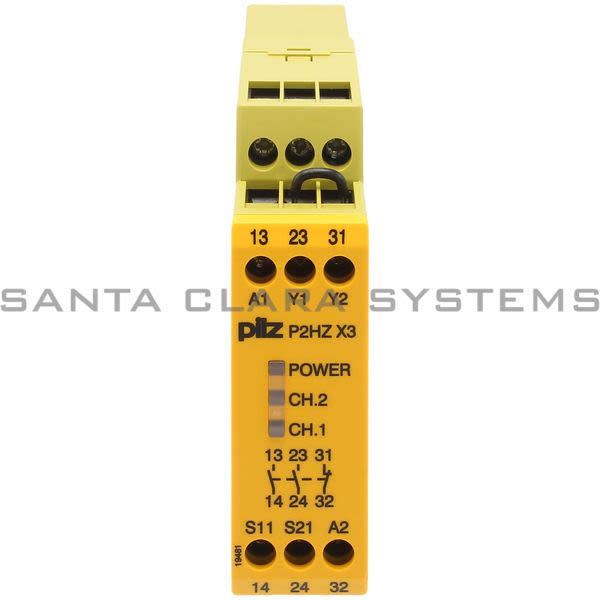

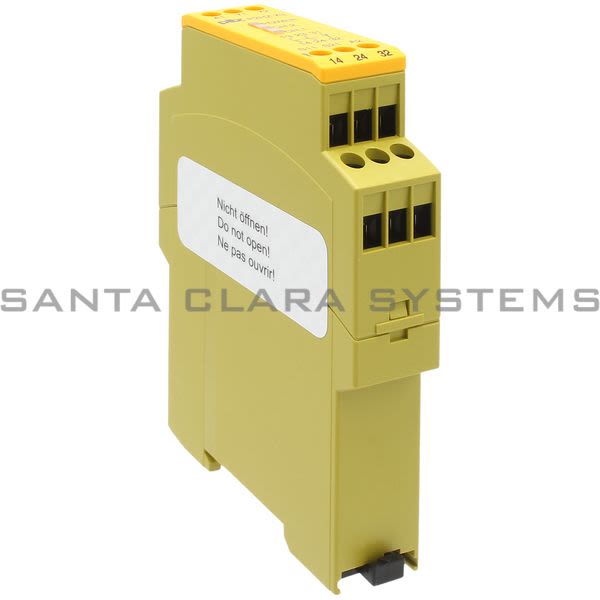

- Description: Safety relay (standalone) Inputs: 1 N/O, 1 N/C per pushbutton Outputs: 2 N/O, 1 N/C UB 24 V DC, width: 22.5 mm, plug-in
- Gross weight:: 220 g
- Net weight:: 210 g
- Ambient temperature:: -25 - 55 C
- Height dimension:: 87.0 mm
- Width dimension:: 22.5 mm
- Depth dimension:: 121.0 mm
- Supply voltage (V):: 24,0
- Supply voltage type:: DC
- Terminal type:: Screw terminal
- Terminal style:: fixed
- Application options:: Two-hand monitoring Type III C
- Approvals:: CE, cULus Listed, EAC (Eurasian), BG, CCC
- Standards:: EN 574 TYP III C, EN 62061, EN 954-1
- Operating modes:: Dual-channel, Detection of shorts across contacts
- Number of instantaneous safety contacts:: 2
- Stop category:: 0
- Max. current at DC13 I (6 cycles/min):: 1.5 A
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on P2HZX324VDC2N-O1N-C-774350 . Santa Clara Systems carries 329 items from Pilz.
- Plug-In Terminals Of Screw Type Two-Hand Control Device
- Monitoring The Simultaneity Of A Two-Hand Pushbutton.
- Safety Relay (Standalone) Inputs: 1 N/o
- 1 N/c Per Pushbutton Outputs: 2 N/o
- 1 N/c Ub 24 V Dc
- Width: 22.5 Mm
