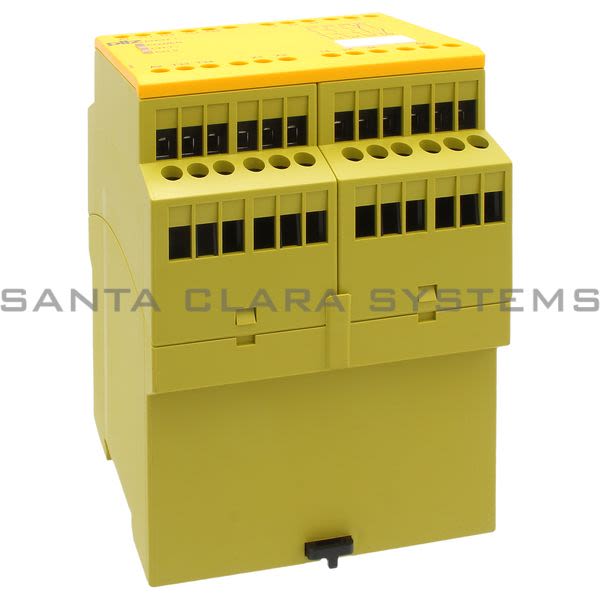

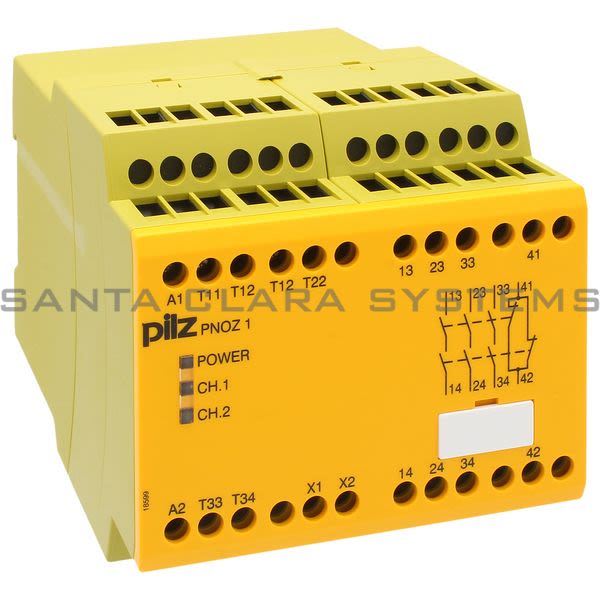

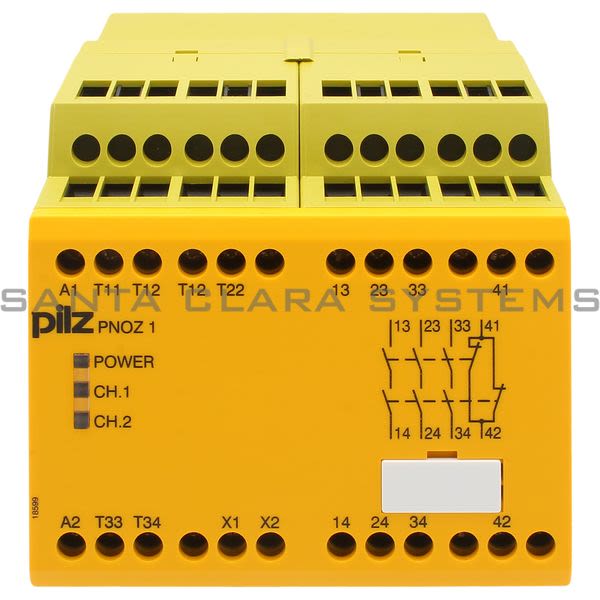

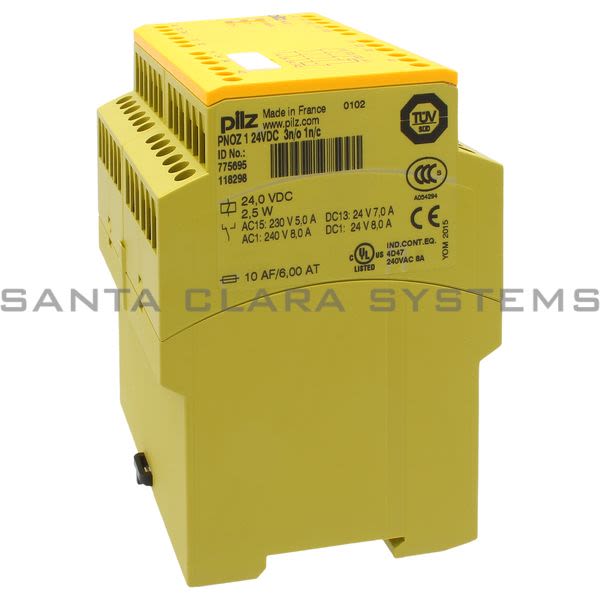

- Description: Safety relay (standalone) Inputs: 1-/2-channel wiring without detection of shorts across contacts Outputs: 3 N/O, 1 N/C
- Gross weight:: 415 g
- Net weight:: 400 g
- Ambient temperature:: -10 - 55 C
- Height dimension:: 87.0 mm
- Width dimension:: 90.0 mm
- Depth dimension:: 121.0 mm
- Supply voltage (V):: 24,0
- Supply voltage type:: DC
- Terminal type:: Screw terminal
- Terminal style:: fixed
- Application options:: Safety gate monitor, Instantaneous E-STOP monitoring, Limit switch
- Approvals:: CE, cULus Listed, EAC (Eurasian), TV, CCC
- Operating modes:: Single-channel, Automatic reset, Dual-channel, Manual reset
- Product standard:: EN 60947-5-1
- Standards:: EN 60204-1, EN 62061, EN ISO 13849-1, VDE 0113-1
- Number of instantaneous safety contacts:: 3
- Number of auxiliary contacts:: 1
- Stop category:: 0
- Max. current at DC13 I (6 cycles/min):: 7.0 A
- Max. current at AC15:: 5.0 A
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on PNOZ124VDC3N-O1N-C-775695 . Santa Clara Systems carries 329 items from Pilz.
- Plug-In Terminals Of Screw Type Monitoring E-Stop
- Safety Gates.
- Safety Relay (Standalone) Inputs: 1-/2-Channel Wiring Without Detection Of Shorts Across Contacts Outputs: 3 N/o
- 1 N/c Ub 24 V Dc
- Width: 90 Mm
