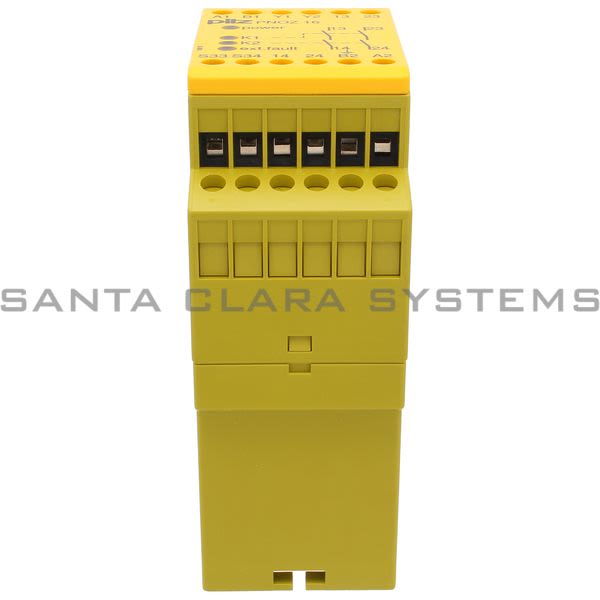

• Pilz PNOZ 16 110VAC/24VDC 2S-774063 Safety relay (standalone) Inputs: 1- / 2-channel wiring with detection of shorts across contacts Outputs: 2 N/O UB 110 V Product Image

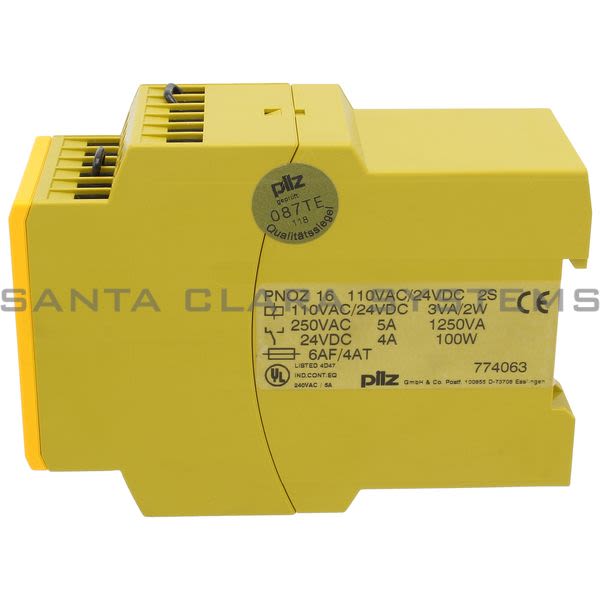

  • Pilz PNOZ 16 110VAC/24VDC 2S-774063 Safety relay (standalone) Inputs: 1- / 2-channel wiring with detection of shorts across contacts Outputs: 2 N/O UB 110 V Product Image

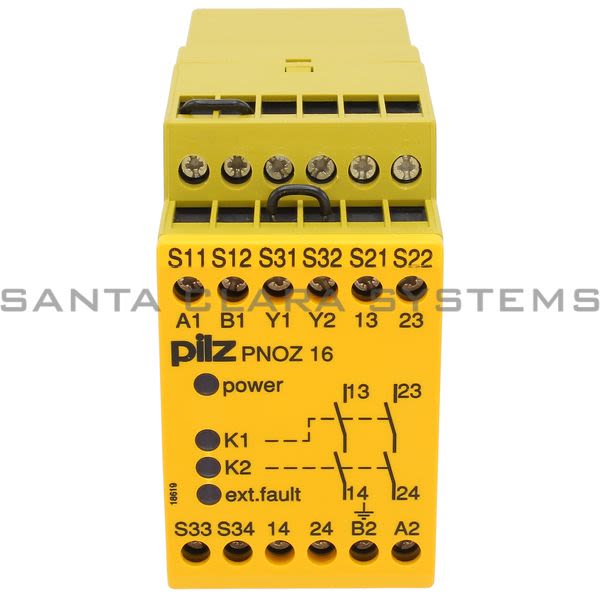

  • Pilz PNOZ 16 110VAC/24VDC 2S-774063 Safety relay (standalone) Inputs: 1- / 2-channel wiring with detection of shorts across contacts Outputs: 2 N/O UB 110 V Product Image

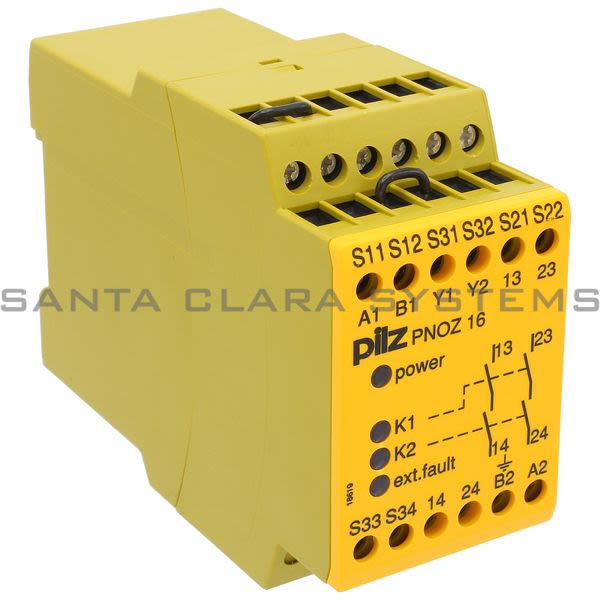

  • Pilz PNOZ 16 110VAC/24VDC 2S-774063 Safety relay (standalone) Inputs: 1- / 2-channel wiring with detection of shorts across contacts Outputs: 2 N/O UB 110 V Product Image
  • Pilz PNOZ 16 110VAC/24VDC 2S-774063 Barcode

PNOZ16110VAC-24VDC2S-774063

Product Summary:

  • Gross weight:: 345 g
  • Net weight:: 335 g
  • Ambient temperature:: -10 - 55 C
  • Height dimension:: 87.0 mm
  • Width dimension:: 45.0 mm
Get a Quote

Current response time:

18 Minutes 2 Seconds
  • Description: Safety relay (standalone) Inputs: 1- / 2-channel wiring with detection of shorts across contacts Outputs: 2 N/O UB 110 V
  • Supply voltage (V):: 110,0
  • Supply voltage type:: AC
  • Supply voltage 2 (V):: 24
  • Supply voltage type 2:: DC
  • Terminal style:: fixed
  • Terminal type:: Screw terminal
  • :
  • Approvals:: CE, cULus Listed, EAC (Eurasian), TV, CCC
  • Application options:: Safety gate monitor, Instantaneous E-STOP monitoring, Limit switch, Pressure sensitive edge, Pressure sensitive mat
  • Operating modes:: Single-channel, Automatic reset, Dual-channel, Manual reset, Detection of shorts across contacts
  • Product standard:: EN 60947-5-1
  • Standards:: EN 60204-1, EN 62061, EN ISO 13849-1, VDE 0113-1
  • Number of instantaneous safety contacts:: 2
  • Stop category:: 0
  • Max. current at DC13 I (6 cycles/min):: 6.0 A
  • Max. current at AC15:: 5.0 A
  • Width dimension:: 45.0 mm
  • Height dimension:: 87.0 mm
  • Depth dimension:: 121.0 mm
  • Gross weight:: 345 g
  • Net weight:: 335 g
  • Ambient temperature:: -10 - 55 C
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on PNOZ16110VAC-24VDC2S-774063 . Santa Clara Systems carries 2,805 items from Pilz.
  • Safety Gates
  • Pressure Sensitive Mats (In Accordance With The Short Circuit Principle).
  • Safety Relay (Standalone) Inputs: 1- / 2-Channel Wiring With Detection Of Shorts Across Contacts Outputs: 2 N/O Ub 110 V Ac/24 V Dc
  • Width: 45 Mm
  • Plug-In Terminals Of Screw Type Monitoring E-Stop
  • Alternates

    • 774063
    • PNOZ16
    • PNOZ 16 110VAC 24VDC 2N/O
    • PNOZ-16-110VAC-24VDC-2N/O-774063
    • PNOZ 16 110VAC 24VDC 2N/O-774063
