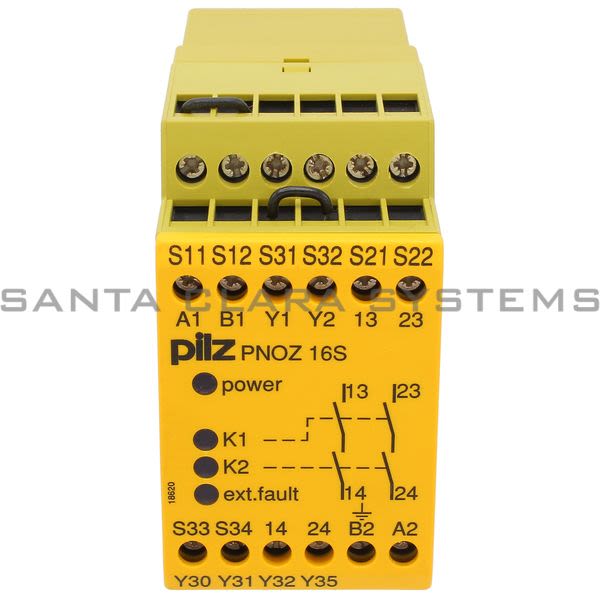

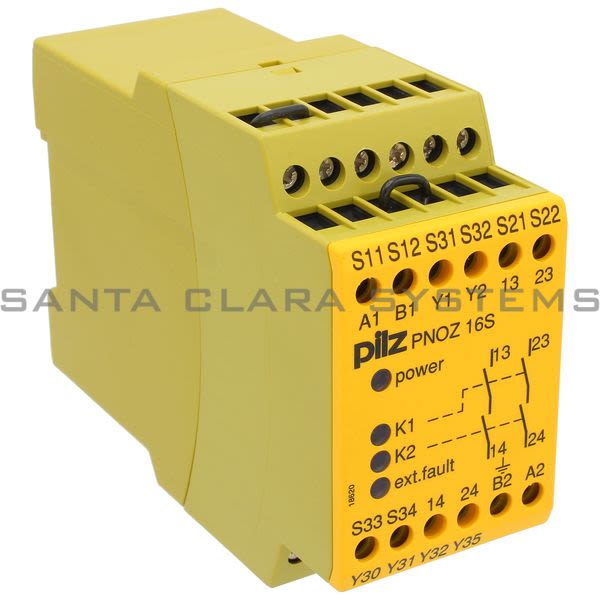

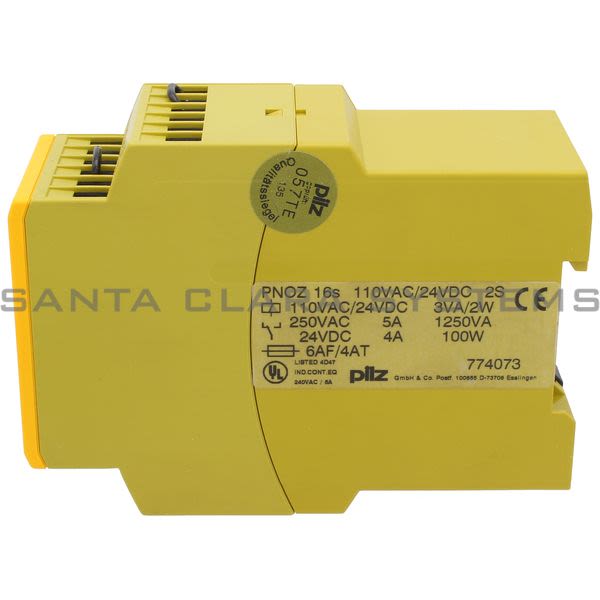

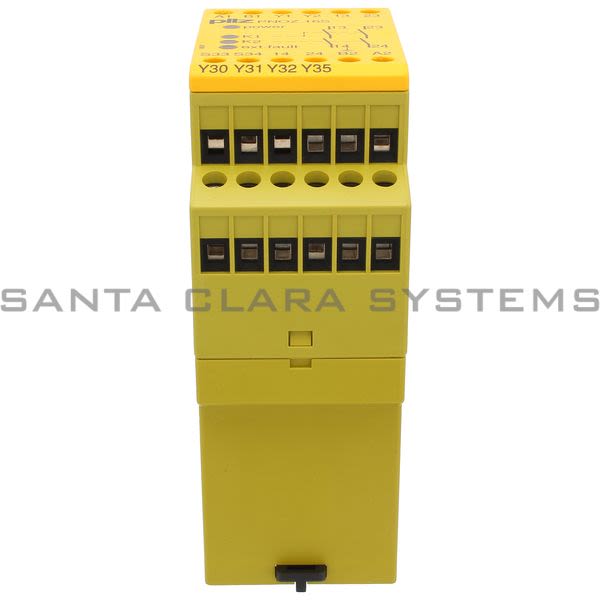

- Description: Safety relay (standalone) Inputs: 1- / 2-channel wiring with detection of shorts across contacts Outputs: 2 N/O, 2 semic
- Gross weight:: 360 g
- Net weight:: 350 g
- Ambient temperature:: -10 - 55 C
- Height dimension:: 87.0 mm
- Width dimension:: 45.0 mm
- Depth dimension:: 121.0 mm
- Supply voltage (V):: 110,0
- Supply voltage type:: AC
- Terminal type:: Screw terminal
- Terminal style:: fixed
- Application options:: Safety gate monitor, Instantaneous E-STOP monitoring, Limit switch, Pressure sensitive edge, Pressure sensitive mat
- Supply voltage 2 (V):: 24
- Supply voltage type 2:: DC
- Max. current at DC13 I (6 cycles/min):: 6.0 A
- Max. current at AC15:: 5.0 A
- Approvals:: CE, cULus Listed, EAC (Eurasian), TV, CCC
- Operating modes:: Single-channel, Automatic reset, Dual-channel, Manual reset, Detection of shorts across contacts
- Product standard:: EN 60947-5-1
- Standards:: EN 60204-1, EN 62061, EN ISO 13849-1, VDE 0113-1
- Number of instantaneous safety contacts:: 2
- Stop category:: 0
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on PNOZ16S110VAC24VDC2N-O2SO-774073 . Santa Clara Systems carries 329 items from Pilz.
- Safety Gates
- Pressure Sensitive Mats (In Accordance With The Short Circuit Principle).
- Safety Relay (Standalone) Inputs: 1- / 2-Channel Wiring With Detection Of Shorts Across Contacts Outputs: 2 N/o
- 2 Semiconductor Ub 110 V Ac/24 V Dc
- Width: 45 Mm
- Plug-In Terminals Of Screw Type Monitoring E-Stop
