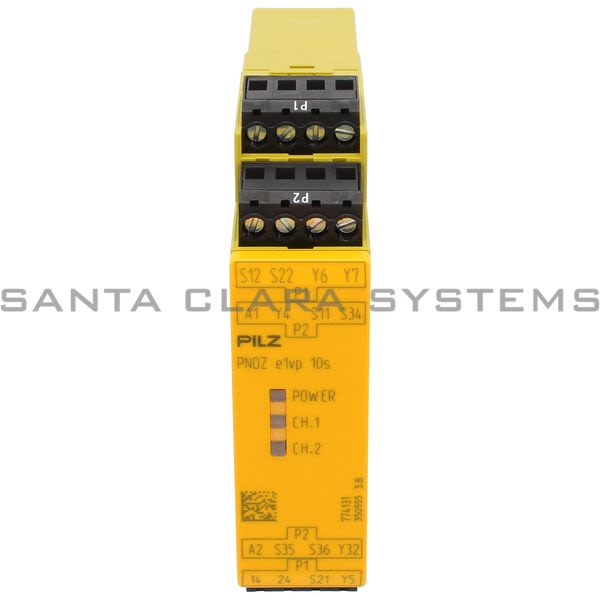

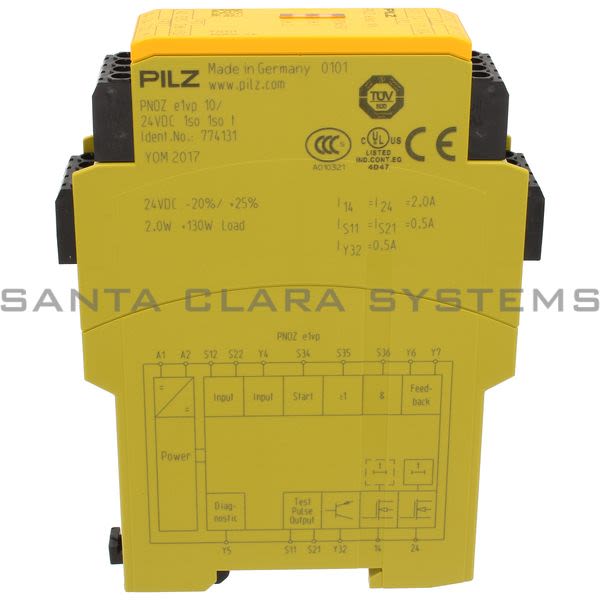

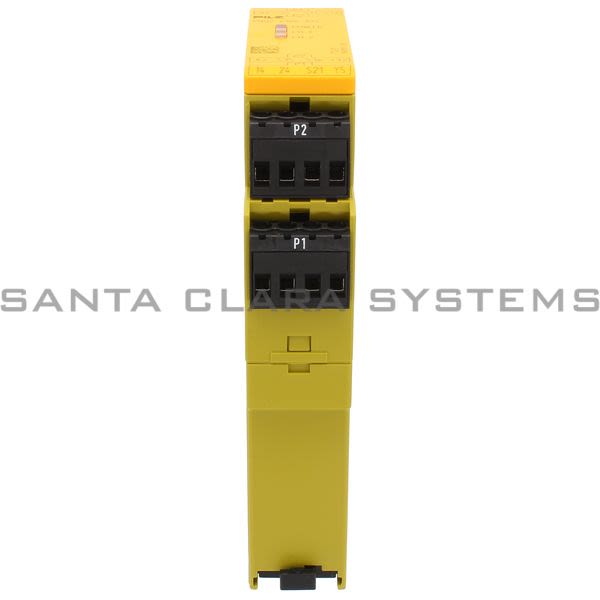

PNOZE1VP10-24VDC1SO1SOT-774131

Pilz - Safety relay (standalone) Inputs: 1-/2-channel wiring with/without detection of shorts across contacts Outputs: 2 safety

Current response time:

6 Minutes 32 Seconds

Description: Safety relay (standalone) Inputs: 1-/2-channel wiring with/without detection of shorts across contacts Outputs: 2 safety
Gross weight:: 145 g
Net weight:: 130 g
Ambient temperature:: -10 - 55 C
Height dimension:: 94.0 mm
Width dimension:: 22.5 mm
Depth dimension:: 121.0 mm
Supply voltage (V):: 24,0
Supply voltage type:: DC
Terminal type:: Screw terminal
Terminal style:: Plug-in

Application options:: Safety gate monitor, Instantaneous E-STOP monitoring, Limit switch, Delayed E-STOP monitoring, Light beam device mon. Type 4, Light beam device mon. Type 2 w/o t/p, Light beam device mon. Type 2 with t/p, Safe delay-on de-energy. timer
Number of instantaneous safety outputs:: 1 ST
Number of delayed safety outputs:: 1 ST
Approvals:: CE, cULus Listed, EAC (Eurasian), TV, CCC
Operating modes:: Single-channel, Automatic reset, Dual-channel, Detection of shorts across contacts, Start-up testing, Monitored manual reset, without detection of shorts across contacts, Self test, Prog. delay-on de-energization, with AND input, With OR input
Product standard:: EN 60947-5-1
Standards:: DIN V VDE 801-1/A1, EN 60204-1, EN 62061, EN ISO 13849-1, VDE 0113-1, VDE 0116
Number of test pulse outputs:: 2
Selectable times:: 0,00 s, 0,15 s, 0,50 s, 1,00 s, 10,00 s, 2,00 s, 3,00 s, 5,00 s, 7,00 s
Stop category:: 0/1

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on PNOZE1VP10-24VDC1SO1SOT-774131 . Santa Clara Systems carries 329 items from Pilz.

Connecting Several Devices
Monitoring E-Stop
Safety Gates.

Safety Relay (Standalone) Inputs: 1-/2-Channel Wiring With/without Detection Of Shorts Across Contacts Outputs: 2 Safety Outputs + 1 Auxiliary Output In Semiconductor Technology Delayed Automatic/monitored Start
Ub 24 V Dc
Width: 22.5 Mm
Plug-In Terminals Of Screw Type
