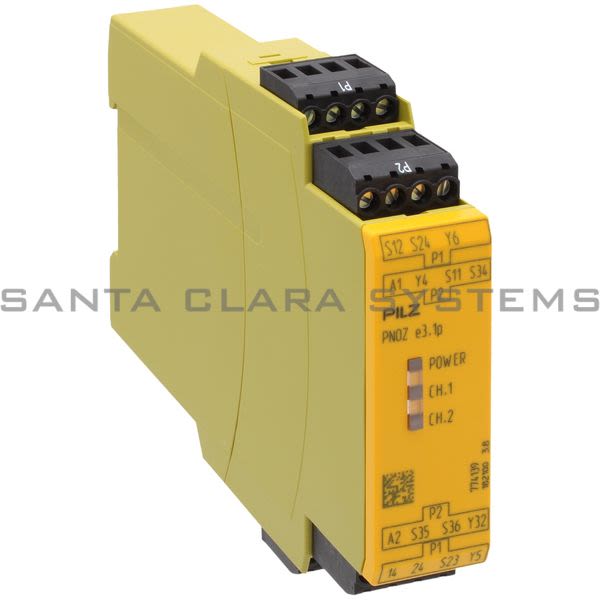

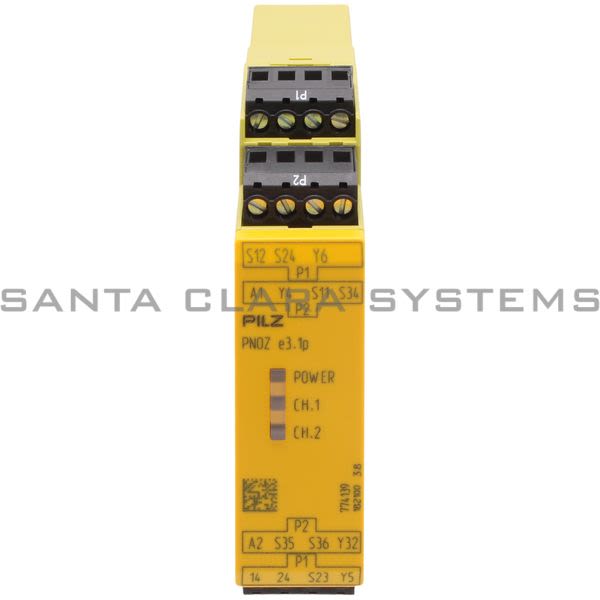

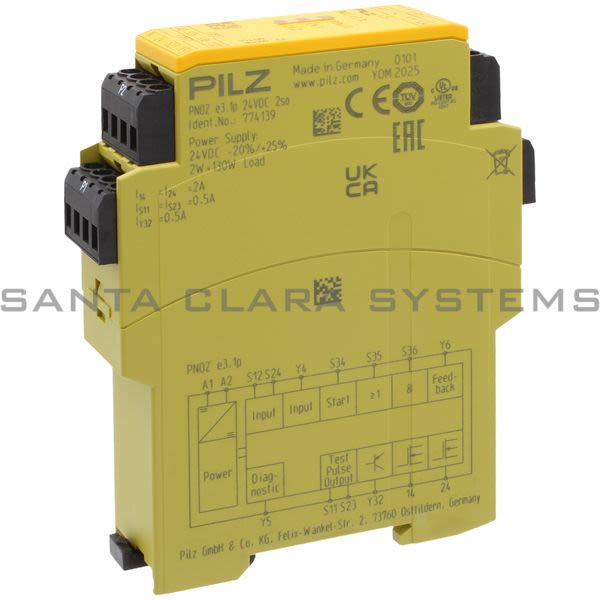

PNOZE3.1P24VDC2SO-774139

Pilz - Safety relay (standalone) Inputs: 2-channel wiring with/without detection of shorts across contacts (PSEN 2.1p/2.2p) Out

Product Summary:

Gross weight:: 150 g
Net weight:: 130 g
Ambient temperature:: -10 - 55 °C
Height dimension:: 94.0 mm
Width dimension:: 22.5 mm

Current response time:

By 5AM PT on Thursday

Emergency?

Description: Safety relay (standalone) Inputs: 2-channel wiring with/without detection of shorts across contacts (PSEN 2.1p/2.2p) Out
Gross weight:: 150 g
Net weight:: 130 g
Ambient temperature:: -10 - 55 °C
Height dimension:: 94.0 mm
Width dimension:: 22.5 mm
Depth dimension:: 121.0 mm
Supply voltage (V):: 24,0
Supply voltage type:: DC
Terminal type:: Screw terminal

Terminal style:: Plug-in
Application options:: Safety gate monitor, Non-contact safety gate monitor, Mechanical safety gate monitor
Approvals:: CE, cULus Listed, EAC (Eurasian), TÜV, CCC
Operating modes:: Single-channel, Automatic reset, Dual-channel, Detection of shorts across contacts, Start-up testing, Monitored manual reset, without detection of shorts across contacts, Self test, with AND input, With OR input
Product standard:: EN 60947-5-1
Standards:: DIN V VDE 801-1/A1, EN 60204-1, EN 62061, EN ISO 13849-1, VDE 0113-1, VDE 0116
Number of instantaneous safety outputs:: 2 ST
Number of test pulse outputs:: 2
Stop category:: 0

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on PNOZE3.1P24VDC2SO-774139 . Santa Clara Systems carries 347 items from Pilz.

Connecting Several Devices
Safety Gate Monitor.

Safety Relay (Standalone) Inputs: 2-Channel Wiring With/without Detection Of Shorts Across Contacts (Psen 2.1p/2.2p) Outputs: 2 Safety Outputs + 1 Auxiliary Output In Semiconductor Technology Automatic/monitored Start
Ub 24 V Dc
Width: 22.5 Mm
Plug-In Terminals Of Screw Type
