PNOZS448-240VACDC3N-O1N-C-750134

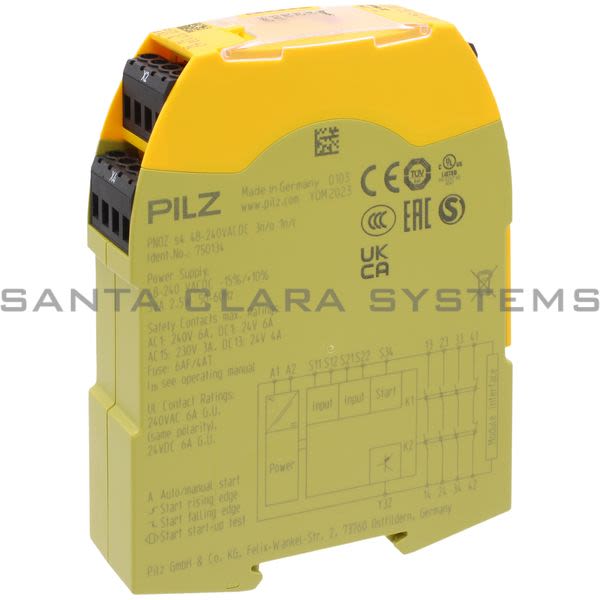

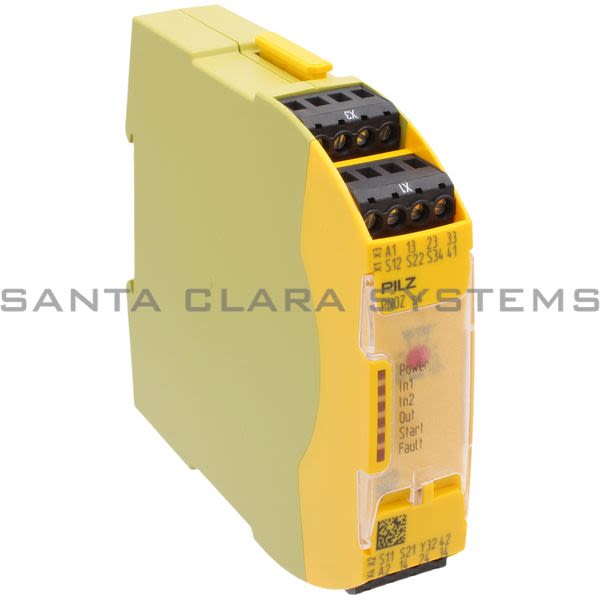

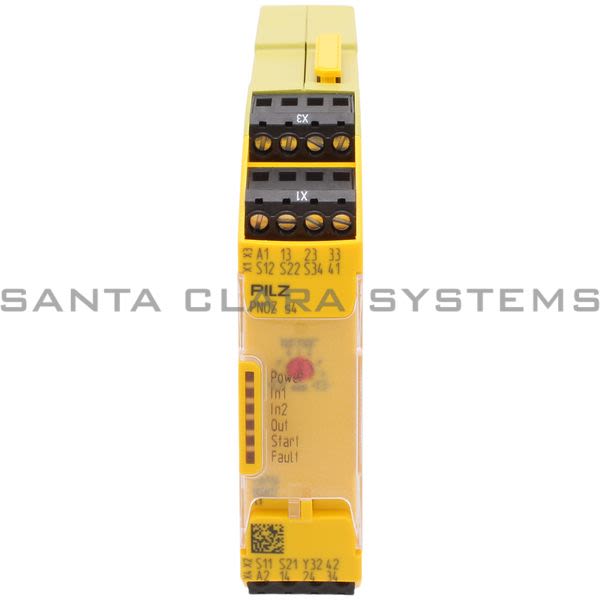

Pilz - Safety relay (standalone) Inputs: 1-/2-channel wiring with/without detection of shorts across contacts Outputs: 3 N/O, 1

Current response time:

13 Minutes 34 Seconds

Description: Safety relay (standalone) Inputs: 1-/2-channel wiring with/without detection of shorts across contacts Outputs: 3 N/O, 1
Gross weight:: 220 g
Net weight:: 210 g
Ambient temperature:: -10 - 55 C
Height dimension:: 98.0 mm
Width dimension:: 22.5 mm
Depth dimension:: 120.0 mm
Supply voltage (V):: 48,0 - 240,0
Supply voltage type:: AC/DC
Terminal type:: Screw terminal
Terminal style:: Plug-in

Application options:: Safety gate monitor, Instantaneous E-STOP monitoring, Limit switch, Light beam device mon. Type 4, Light beam device mon. Type 2 w/o t/p, Light beam device mon. Type 2 with t/p
Approvals:: CE, cULus Listed, EAC (Eurasian), TV, KOSHA, CCC
Operating modes:: Single-channel, Automatic reset, Dual-channel, Manual reset, Detection of shorts across contacts, Start-up testing, Monitored manual reset, without detection of shorts across contacts, Self test
Product standard:: EN 60947-5-1
Standards:: EN 60204-1, EN 62061, EN ISO 13849-1, VDE 0113-1
Number of instantaneous safety contacts:: 3
Number of auxiliary contacts:: 1
Number of semiconductor outputs:: 1
Stop category:: 0
Max. current at DC13 I (6 cycles/min):: 4.0 A
Max. current at AC15:: 3.0 A

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on PNOZS448-240VACDC3N-O1N-C-750134 . Santa Clara Systems carries 330 items from Pilz.

Plug-In Terminals Of Screw Type Monitoring E-Stop
Safety Gates.

Safety Relay (Standalone) Inputs: 1-/2-Channel Wiring With/without Detection Of Shorts Across Contacts Outputs: 3 N/o
1 N/c
1 Semiconductor Ub 48 - 240 V Ac/dc
Width: 22.5 Mm
